Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT2NU3100BFF000XXX

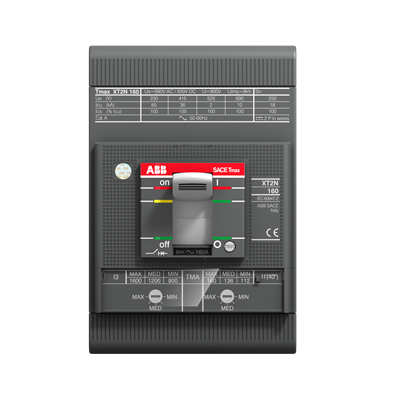

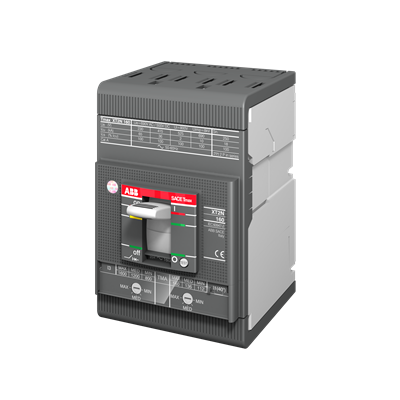

XT2NU3100BFF000XXX is a 3-pole molded case circuit breaker from ABB's Tmax XT series rated for 100 amps and 600 volts AC.XT2NU3100BFF000XXX features adjustable thermal and magnetic trip units, a 125A frame size, and a 25 kA interrupt rating at 480 VAC. It is designed for panel mounting with bolt-on terminals and meets UL 489, CSA 22.2, and IEC 60947-2 standards.
- Amperage Rating: 100 A
- Voltage Rating: 600 VAC / 690 VAC
- Number of Poles: 3
- Frame Size: XT2 125A
- Interrupt Rating: 18 kA at 600 VAC, 25 kA at 480 VAC
- Trip Unit: Adjustable Thermal / Magnetic / Electronic
- Mounting Type: Panel Mount
- Terminal Type: Bolt-On
- Approvals: UL 489, CSA 22.2, IEC 60947-2
- Insulation: Double Insulated
- Operating Temperature Range: -13 to 158 °F
- Auxiliary Switch, Shunt Trip, and Undervoltage Release: Optional
Specifications
- Part Number: XT2NU3100BFF000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT2NU
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : 125A/XT2
- Protection : Thermal Magnetic
Product Data
- UPC : 01564478721
- GTIN : 08015644787219
- Country of Origin : United States
- Dimensions : 90 mm x 130 mm
- Weight : 8
- Standards : UL, CSA
- Certification : UL, CSA
