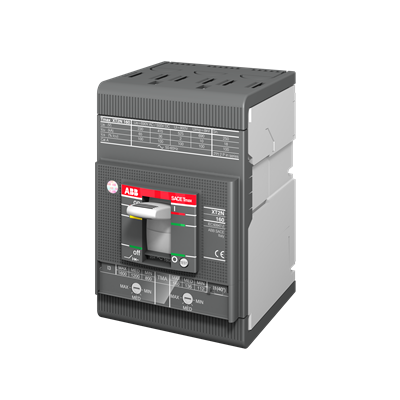

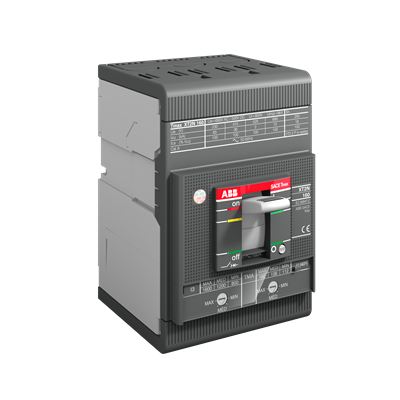

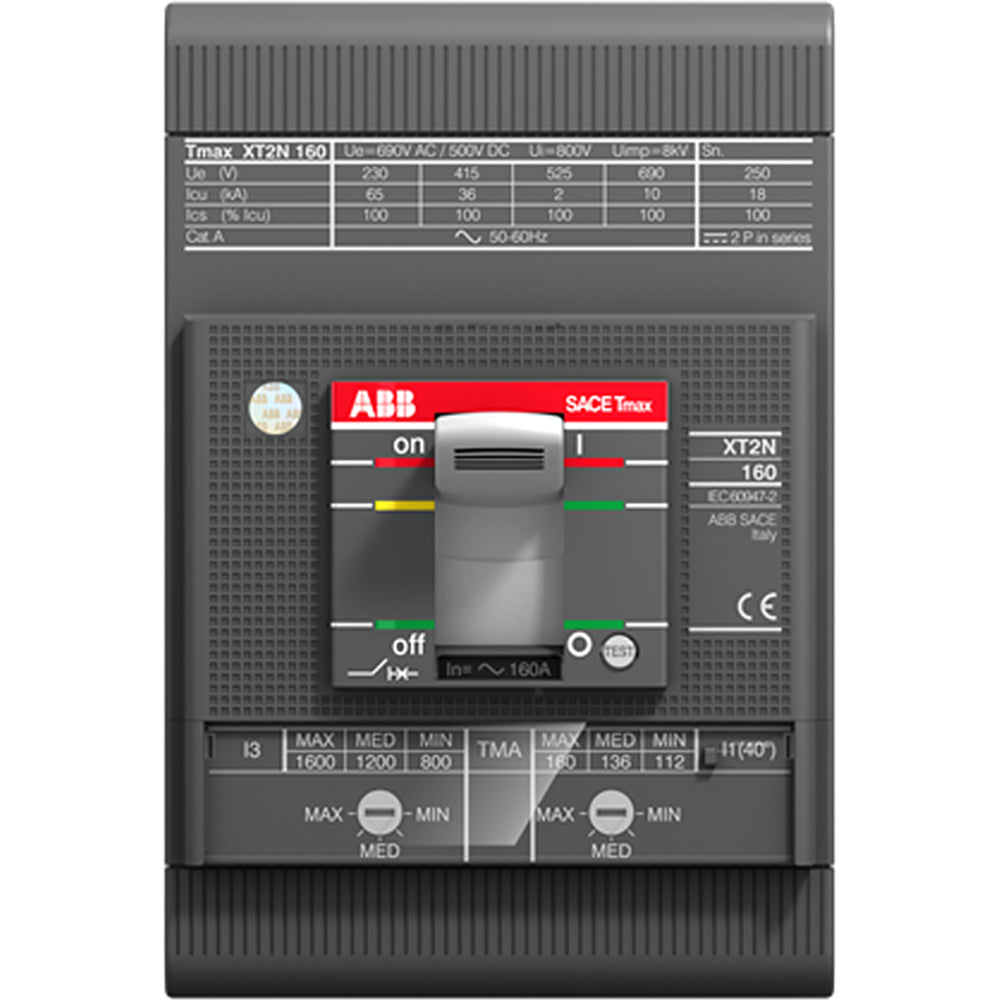

XT2NU3025AFF000XXX - ABB 25A 600V 3 Pole Thermal Magnetic Molded Case Circuit Breaker XT2N Frame

XT2NU3025AFF000XXX

XT2NU3025AFF000XXX is a 3-pole molded case circuit breaker from ABB's Tmax XT2 series, rated for 25 amperes at 600 volts with a 125A frame size and thermal magnetic fixed trip unit for industrial power distribution applications.

This UL-listed circuit breaker features front terminals on both line and load sides without lugs, enabling flexible installation in switchboards and panelboards. The thermal magnetic fixed (TMF) trip unit provides essential overload and short-circuit protection with an interrupting capacity of 25 kA at 480V. The breaker supports both AC and DC voltages up to 600V and includes a toggle actuator with IP20 rating.

• Manufacturer: ABB
• Part Number: XT2NU3025AFF000XXX
• Rated Current: 25 Amperes
• Voltage Rating: 240-600V AC, 500V DC
• Number of Poles: 3
• Frame Size: 125A
• Trip Unit: Thermal Magnetic Fixed (TMF)
• Interrupting Capacity: 25 kA @ 480V
• Mounting: Front terminals, no lugs
• Connection Type: Bolt connection
• Certifications: UL/CSA listed
• IP Rating: IP20

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XT2NU3025AFF000XXX
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : SACE Tmax XT
• Type : XT2NU
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 01564478712
• GTIN : 08015644787127
• Country of Origin : United States
• Weight : 5
• Standards : UL, CSA
• Certification : UL, CSA
