Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT2HU3125FYD000XXX

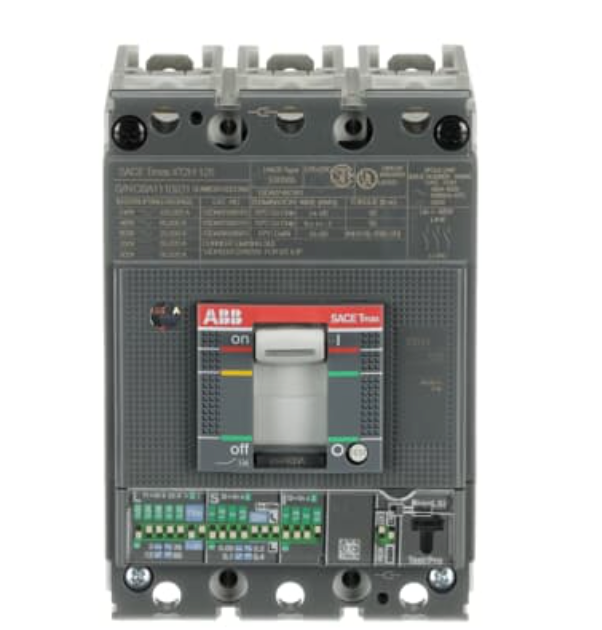

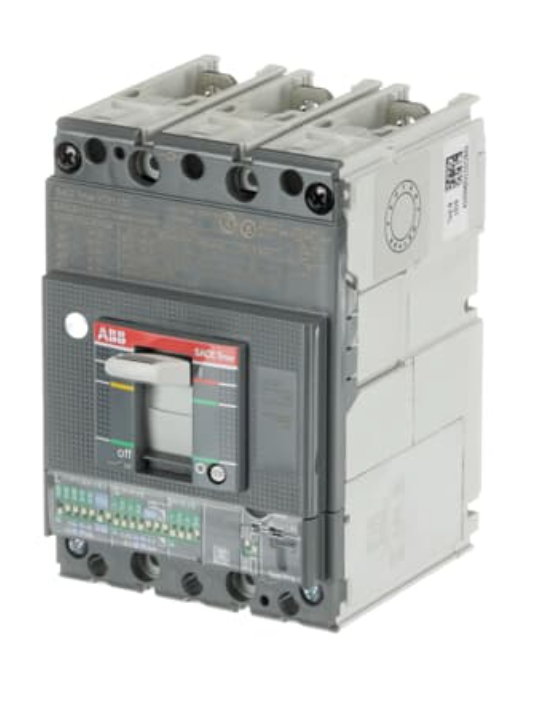

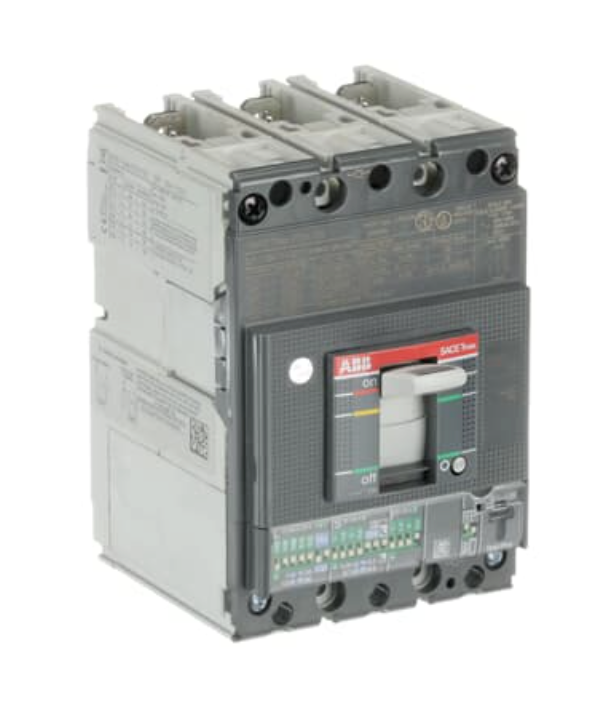

XT2HU3125FYD000XXX � ABB SACE Tmax XT2 molded case circuit breaker, u-pole, rated 125A, UL 489. Interrupting class: H | AIC @480V: 65 kA | AIC @600V: 25 kA | Voltage: 600 VAC. Wire size: 14 AWG-1/0 AWG (typical, per lug kit). Essential Parts offers fast shipping, competitive pricing, and expert support.
Specifications
- Part Number: XT2HU3125FYD000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT2HU
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long Time, Short Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 57558431237
- Country of Origin : United States
- Weight : 8
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 10 to AWG 2/0, Cu/Al
