XT1SU3070AYD000XXX - ABB 70A 600V 3 Pole Bolt-On Molded Case Circuit Breaker Tmax XT1 Frame 35kA

XT1SU3070AYD000XXX

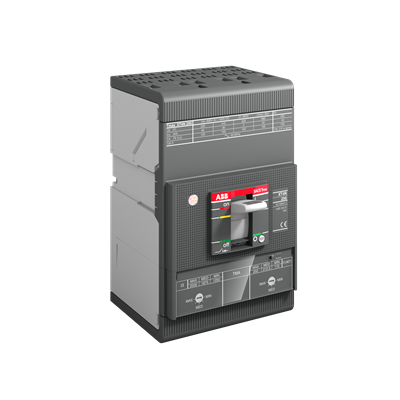

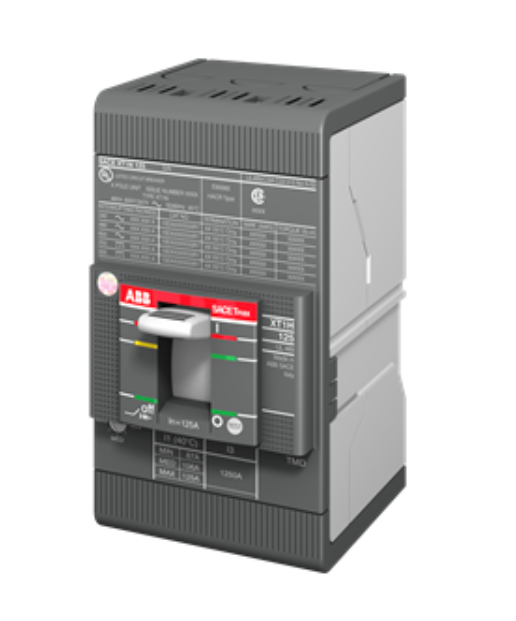

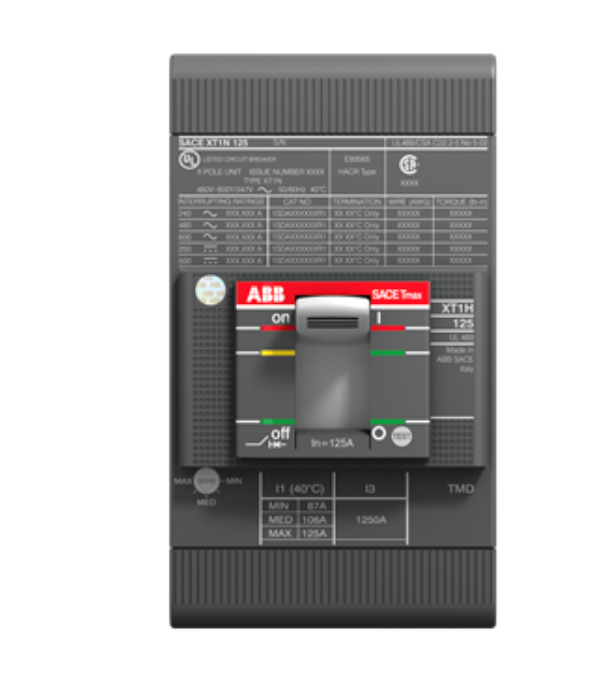

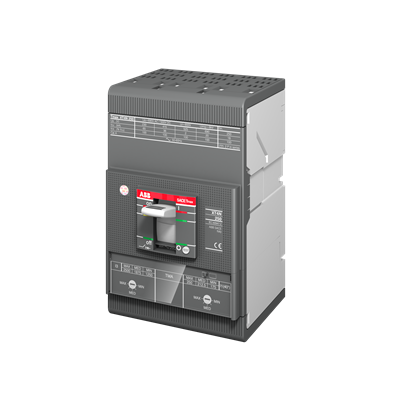

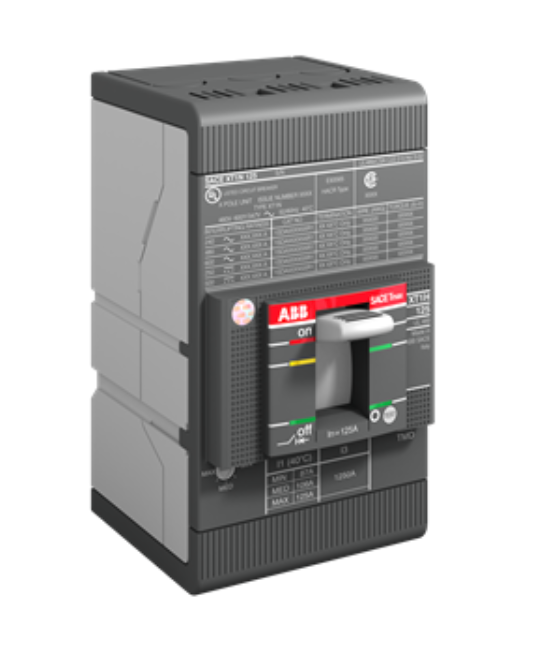

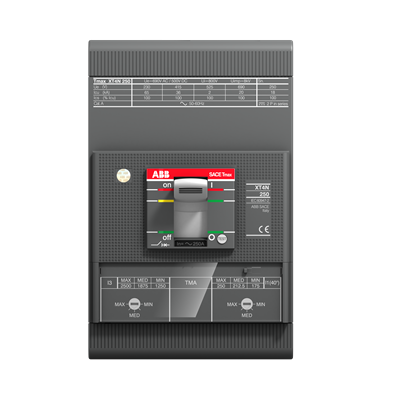

XT1SU3070AYD000XXX is a 3 pole, 70A, 600V bolt-on molded case circuit breaker from ABB's Tmax XT1 series, designed for reliable thermal magnetic protection in commercial and industrial applications. This ABB circuit breaker features a Tmax XT1 frame, 35kA interrupt rating at 480V, and is rated for 600V AC. It is a bolt-on type for secure mounting, with a thermal magnetic trip unit for overload and short-circuit protection. The breaker is suitable for use in panelboards and switchgear requiring robust, high-performance circuit protection.

• Part Number: XT1SU3070AYD000XXX
• Manufacturer: ABB
• Series/Frame: Tmax XT1
• Amperage Rating: 70A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA @ 480V
• Protection Type: Thermal Magnetic
• Connection Type: Front Line/Load Side
• Insulation Type: Double Insulated
• Temperature Rating: -13 to 158°F

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XT1SU3070AYD000XXX
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : SACE Tmax XT
• Type : XT1SU
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Country of Origin : United States
• Weight : 5
• Standards : UL, CSA
• Certification : UL, CSA
• Wire Size : AWG 10 to AWG 2/0, Cu/Al
