Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT1NU3090AFF000XXX

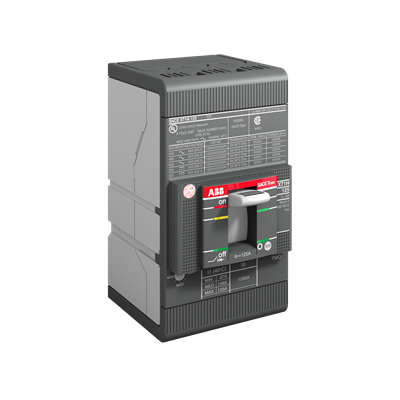

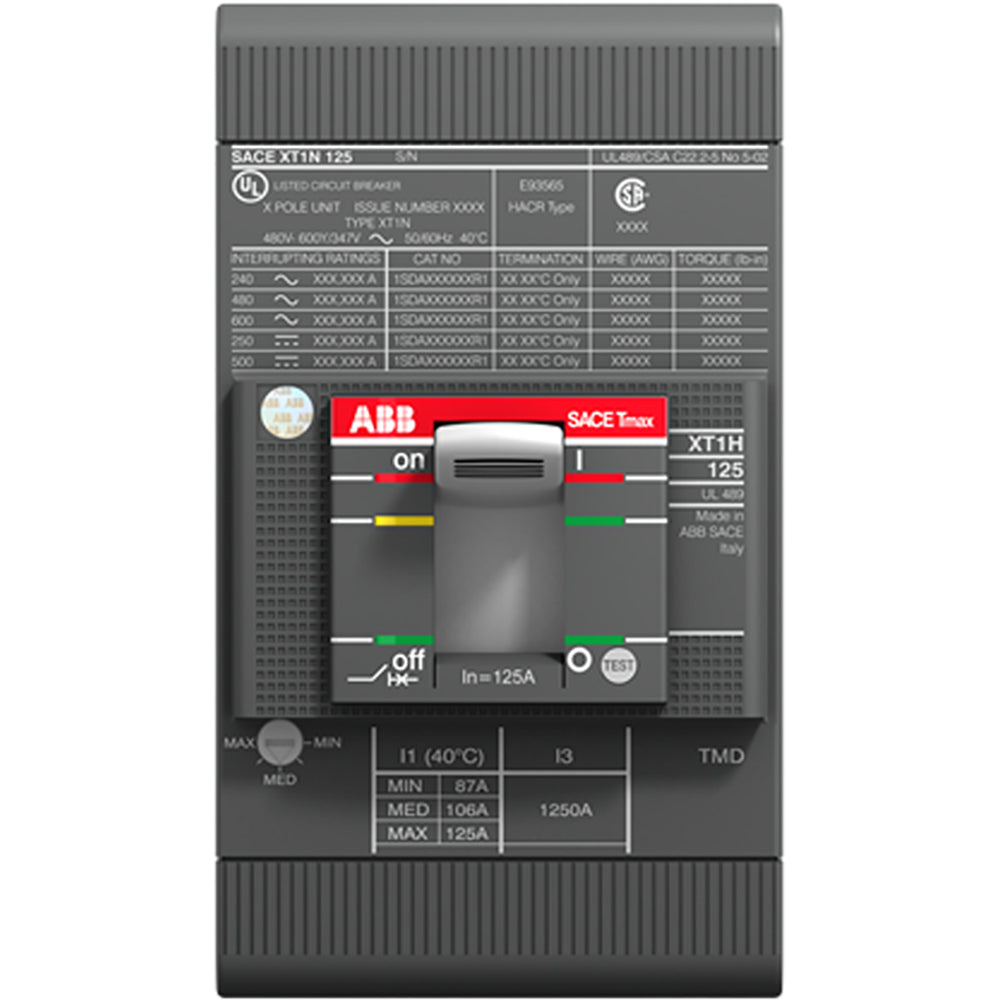

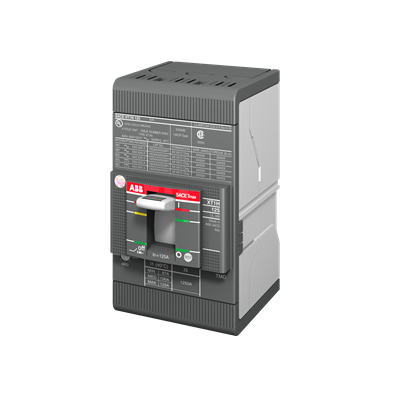

XT1NU3090AFF000XXX is an ABB Tmax XT molded case circuit breaker with thermal magnetic fixed trip unit, rated at 90A for low voltage applications.This 3-pole breaker features XT1 frame size up to 125A, front flat terminals without lugs, and 18kA interrupting capacity at 600Y/347VAC (UL standard). It provides fixed thermal/magnetic protection with trip range 90-900A, double insulation, and is suited for distribution systems with high let-through current limiting characteristics.
- Part Number: XT1NU3090AFF000XXX
- Manufacturer: ABB
- Series/Frame: Tmax XT1, 125A
- Amperage: 90A
- Poles: 3
- Voltage Rating: 600Y/347VAC
- Trip Unit: Thermal Magnetic Fixed (TMF)
- Interrupt Rating: 18kA @ 600Y/347VAC
- Mounting Type: Fixed, Front Terminals
- Frequency: 50/60Hz
- Certifications: UL/CSA
Specifications
- Part Number: XT1NU3090AFF000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT1NU
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : 125A/XT1
- Protection : Thermal Magnetic
Product Data
- UPC : 01564478622
- GTIN : 08015644786229
- Country of Origin : United States
- Dimensions : 76.2 mm x 130 mm
- Weight : 5
- Standards : UL, CSA
- Certification : UL, CSA
