Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT1NU3080AFF000XXX

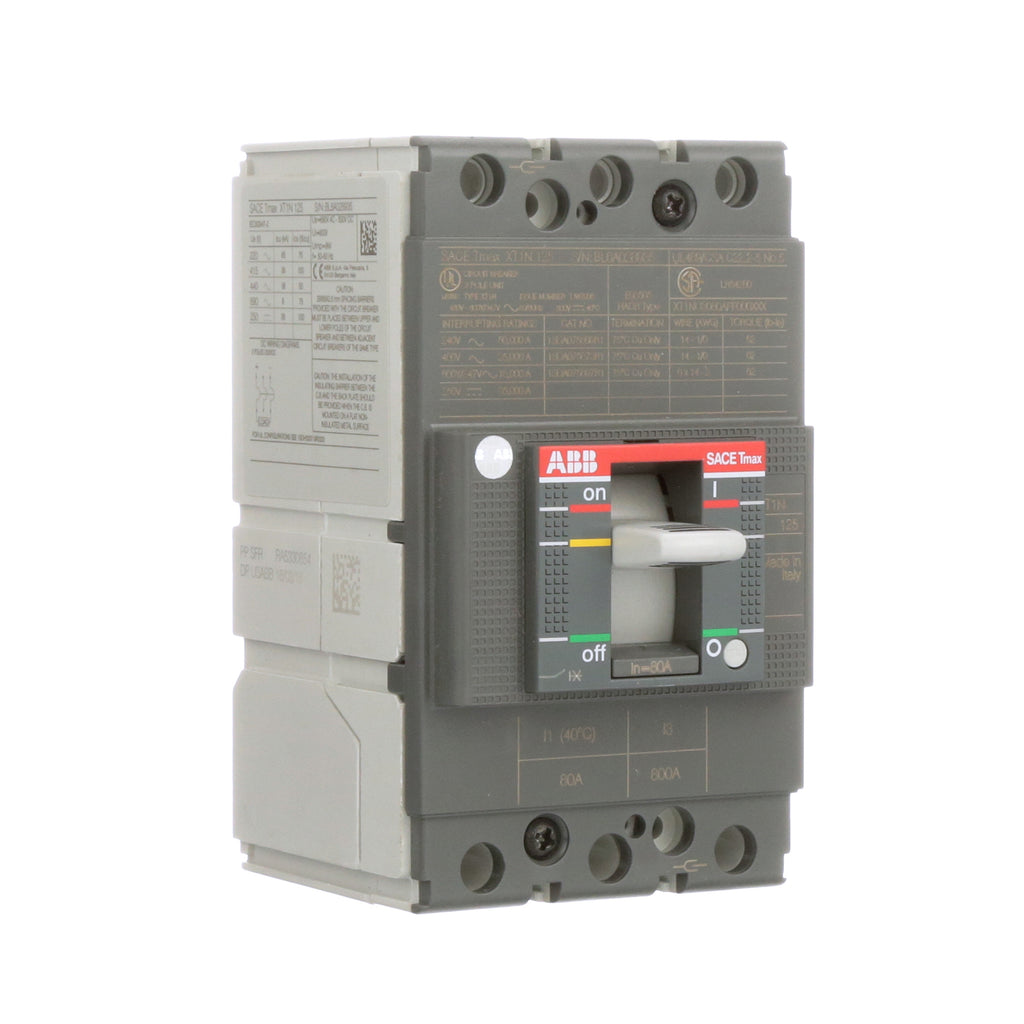

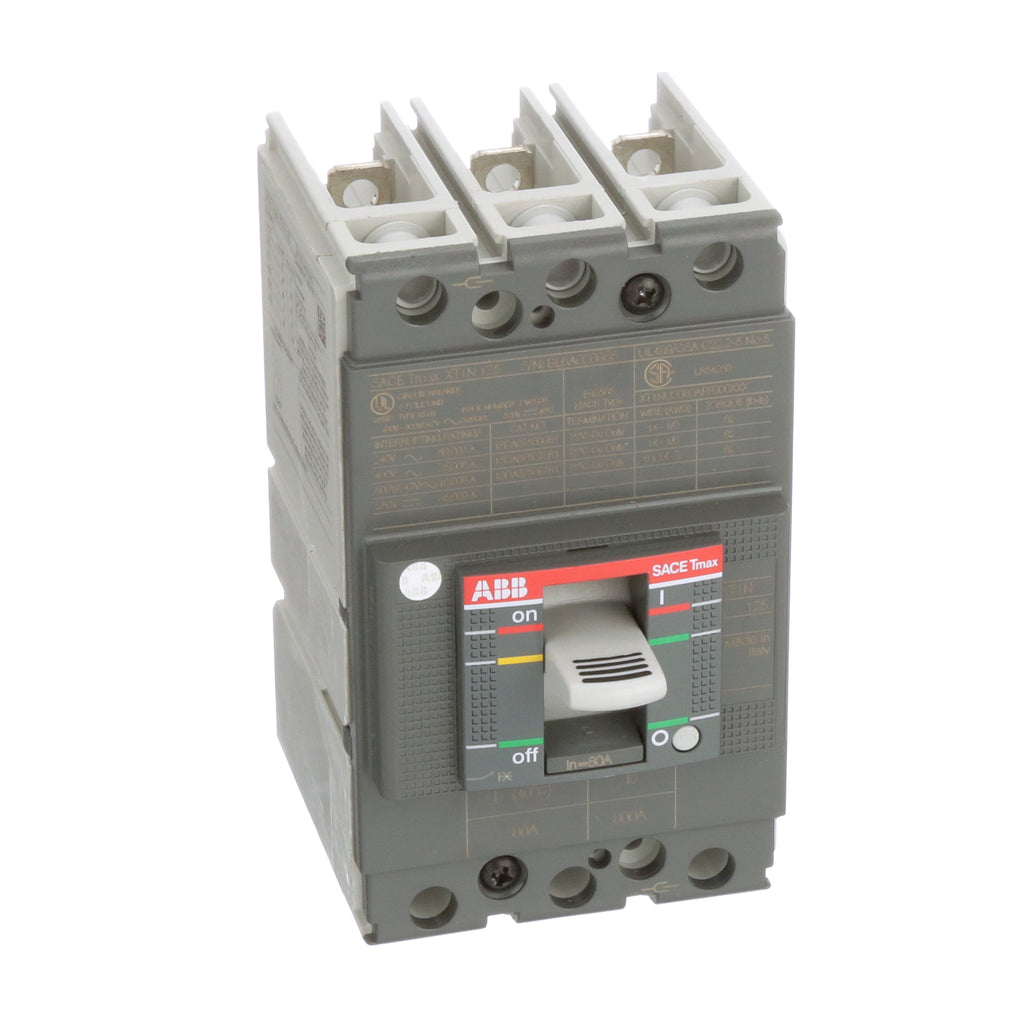

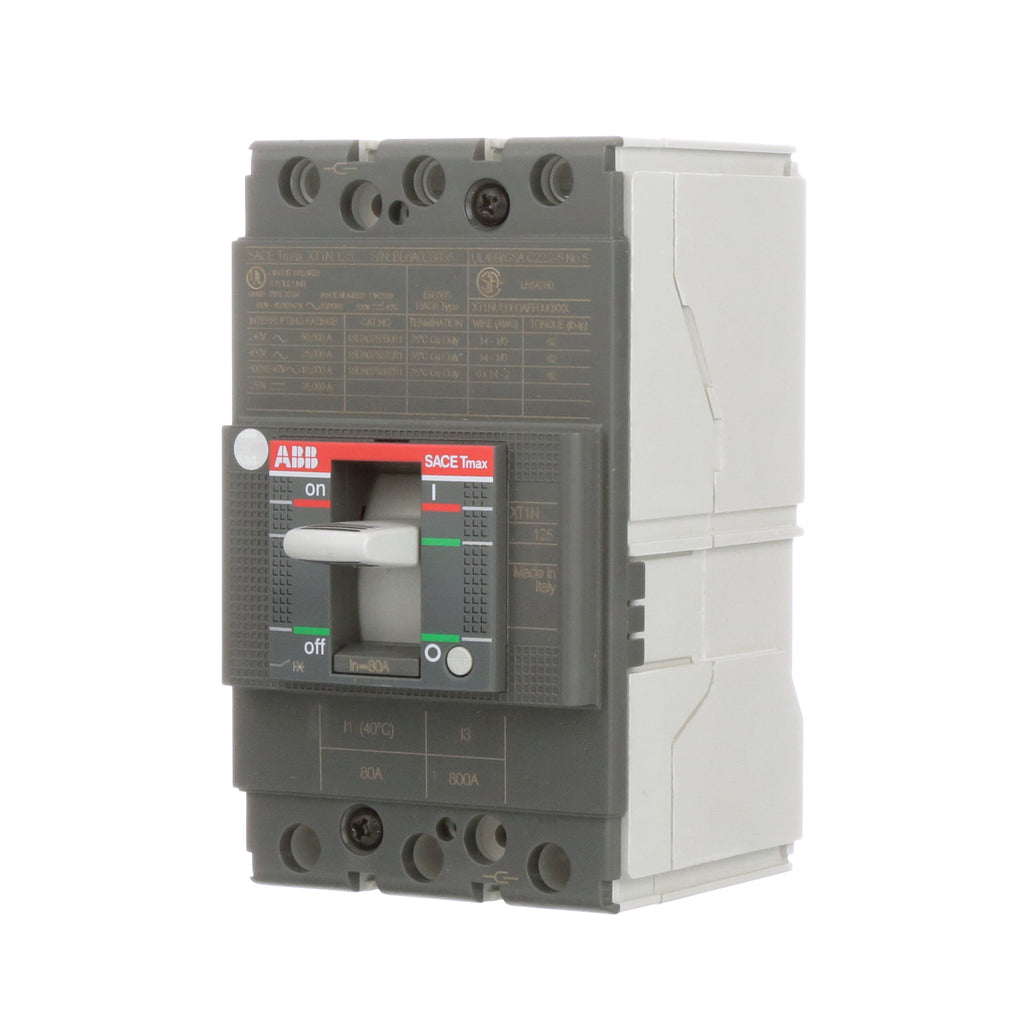

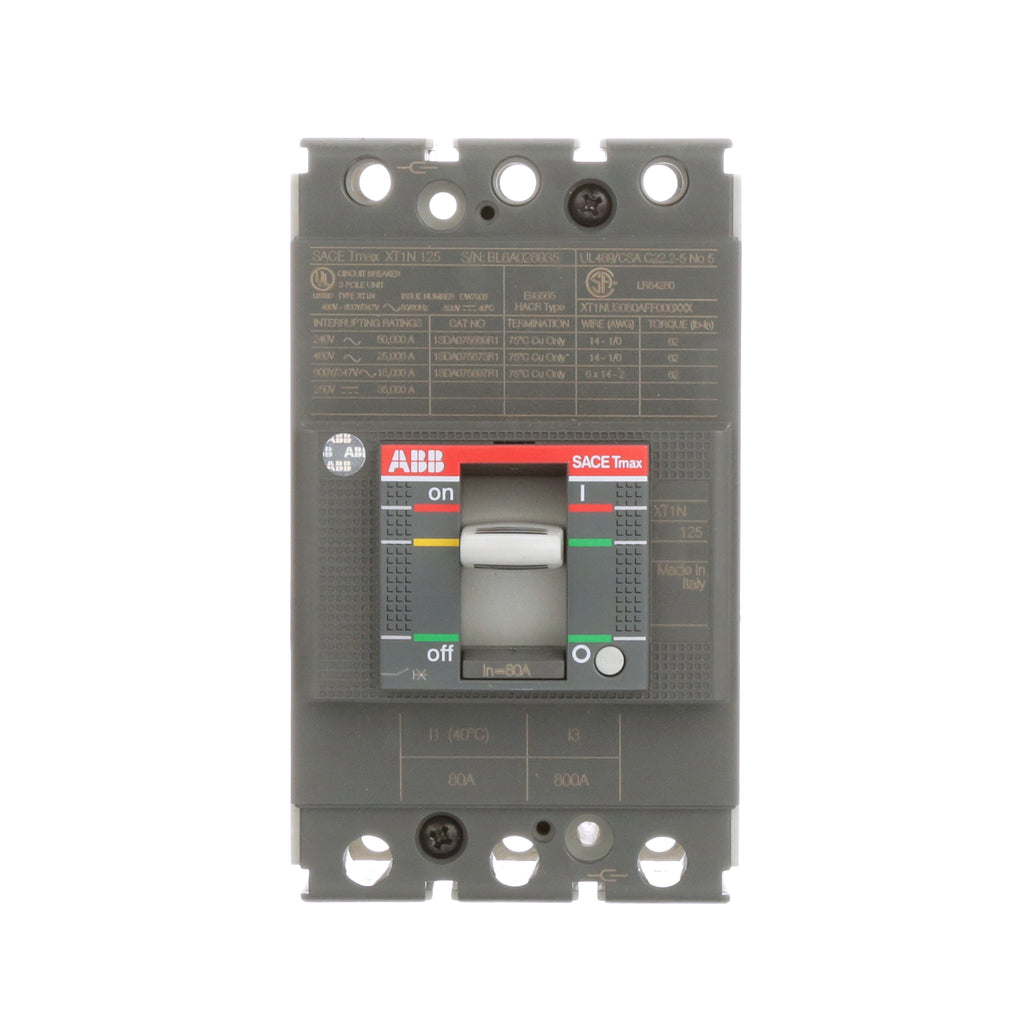

XT1NU3080AFF000XXX is an ABB Tmax XT molded case circuit breaker with thermal magnetic fixed trip, rated at 80A, 3 poles, and 18kA interrupt at 600Y/347V AC.This UL/CSA listed breaker features XT1 frame size up to 125A, front flat terminals without lugs, and fixed thermal/fixed magnetic protection for low voltage applications up to 600Y/347V AC. It provides high performance with energy limiting characteristics in a compact design.
- Part Number: XT1NU3080AFF000XXX
- Manufacturer: ABB
- Series: Tmax XT
- Frame: XT1 125A
- Amperage Rating: 80A
- Voltage Rating: 600Y/347V AC
- Poles: 3
- Trip Type: Thermal Magnetic Fixed (TMF)
- Interrupt Rating: 18kA @ 600Y/347V AC
- Terminals: Front Flat, No Lugs
- Standards: UL/CSA
Specifications
- Part Number: XT1NU3080AFF000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT1NU
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : 125A/XT1
- Protection : Thermal Magnetic
Product Data
- UPC : 01564478621
- GTIN : 08015644786212
- Country of Origin : United States
- Dimensions : 76.2 mm x 130 mm
- Weight : 5
- Standards : UL, CSA
- Certification : UL, CSA
