Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT1NU3070AFF000XXX

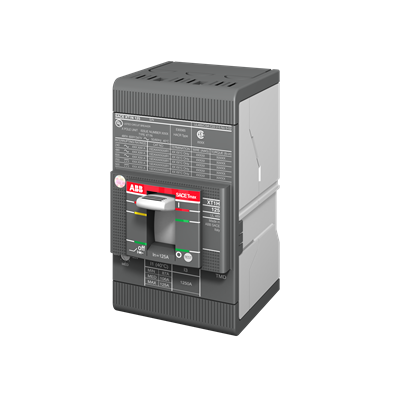

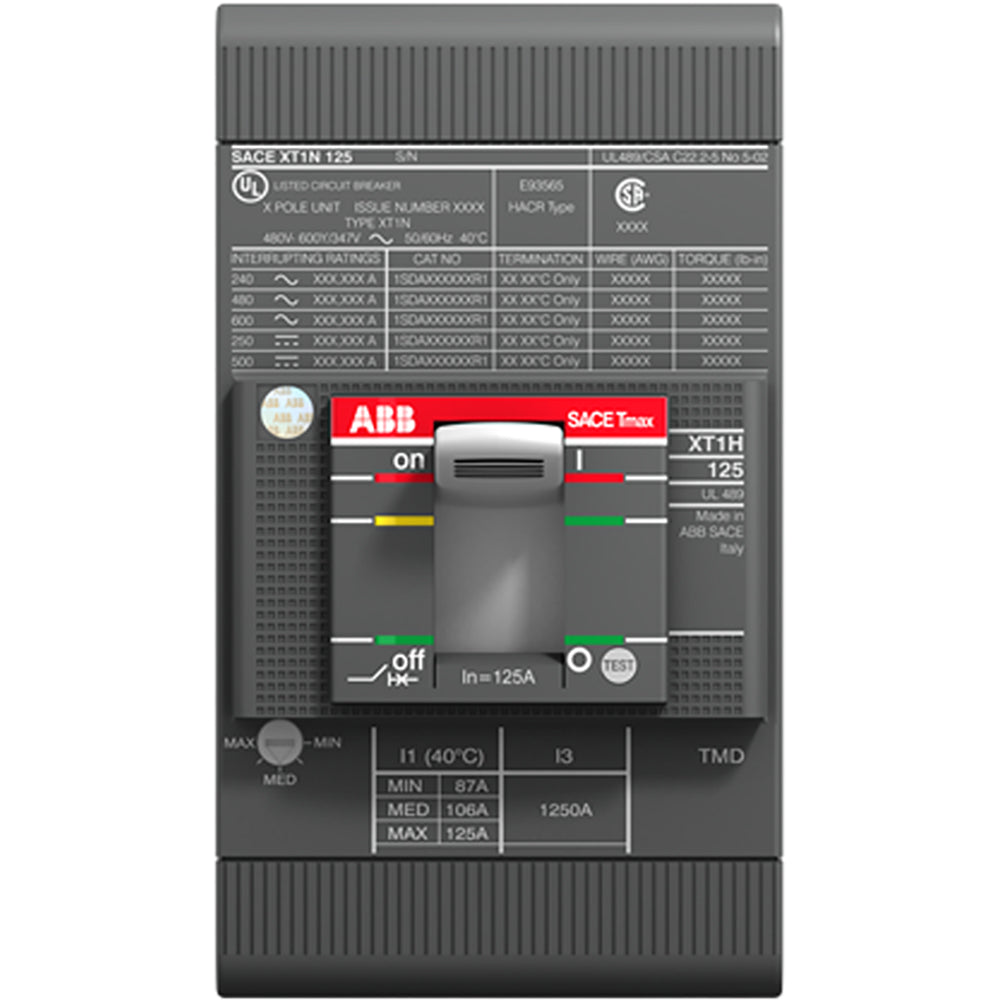

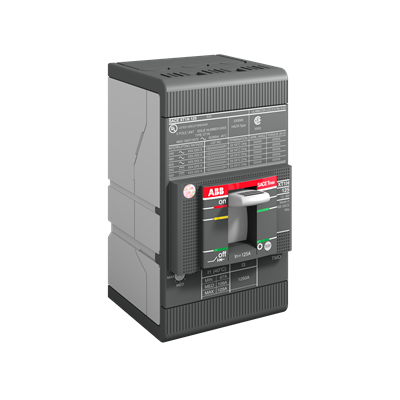

XT1NU3070AFF000XXX is a Tmax XT molded case circuit breaker from ABB with 70A thermal magnetic fixed trip.
This 3-pole breaker features front terminals without lugs, XT1 frame size up to 125A, and 18kA interrupting capacity at 600Y/347VAC. It provides reliable protection for low voltage distribution systems with double insulation and fixed thermal/magnetic trip from 70 to 700A.
Key Specifications
- Amperage Rating: 70A
- Number of Poles: 3
- Voltage Rating: 600Y/347/690VAC
- Interrupt Rating: 18kA @ 600Y/347VAC
- Frame Size: XT1 125A
- Trip Type: Thermal Magnetic Fixed (TMF)
- Connection Type: Front Line/Load Side
- Frequency Rating: 50/60Hz
- Insulation Type: Double Insulated
- Series: Tmax XT
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: XT1NU3070AFF000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT1NU
- Voltage : 600
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : 125A/XT1
- Protection : Thermal Magnetic
Product Data
- UPC : 01564478620
- GTIN : 08015644786205
- Country of Origin : United States
- Dimensions : 76.2 mm x 130 mm
- Weight : 5
- Standards : UL, CSA
- Certification : UL, CSA
