Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT1NU3030AFF000XXX

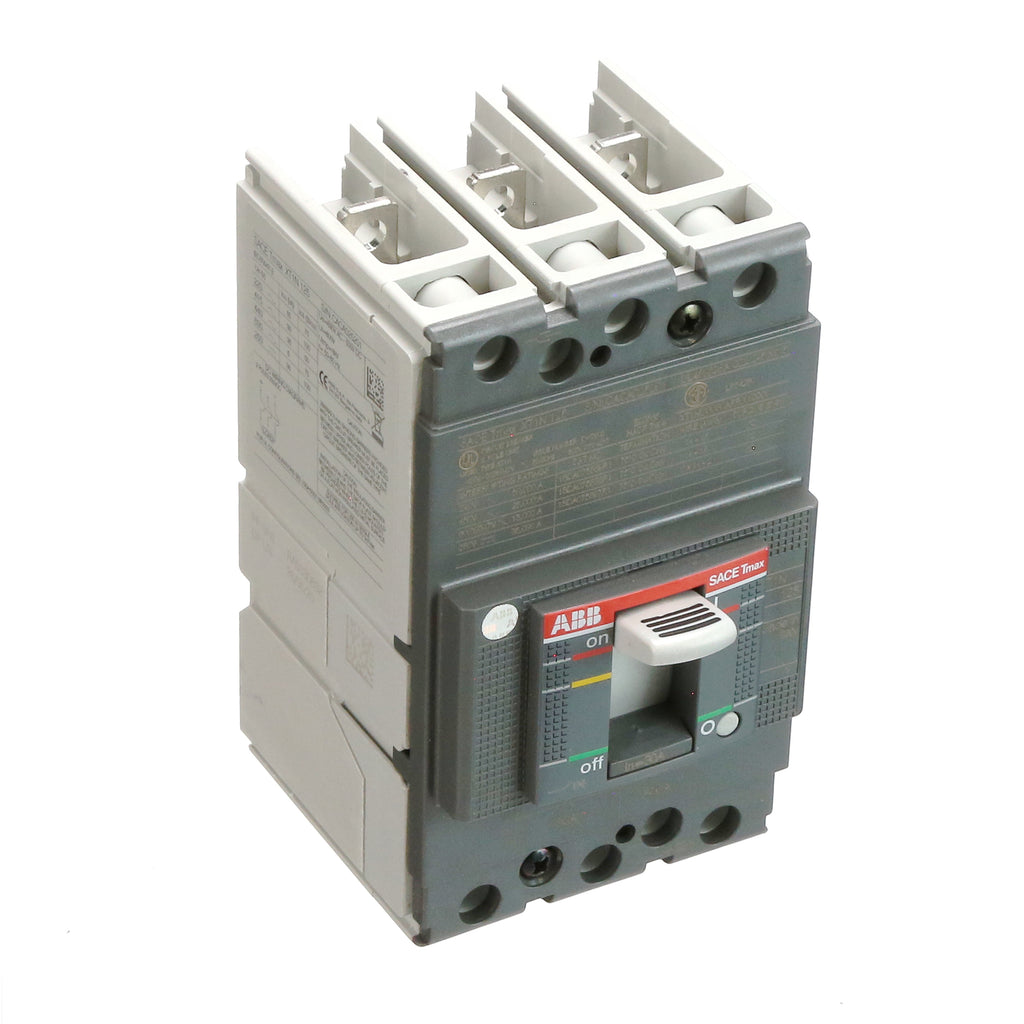

XT1NU3030AFF000XXX is a 3-pole molded case circuit breaker from ABBs Tmax XT series, rated at 30A with thermal magnetic fixed trip.XT1NU3030AFF000XXX features a XT1 125A frame, 18kA interrupt rating at 600Y/347VAC, front terminals without lugs, and double insulation for low voltage distribution applications.
- Part Number: XT1NU3030AFF000XXX
- Manufacturer: ABB
- Series/Frame: Tmax XT, XT1 125A
- Amperage: 30A
- Voltage: 600Y/347VAC
- Poles: 3
- Trip Unit: Thermal Magnetic Fixed (TMF)
- Interrupt Rating: 18kA
- Mounting Type: Fixed
- Connection: Front Line/Load Side Terminals
- Frequency: 50/60Hz
- Certifications: UL Listed, CSA Certified, IEC Certified
Specifications
- Part Number: XT1NU3030AFF000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT1NU
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : 125A/XT1
- Protection : Thermal Magnetic
Product Data
- UPC : 01564478504
- GTIN : 08015644785048
- Country of Origin : United States
- Dimensions : 76.2 mm x 130 mm
- Weight : 5
- Standards : UL, CSA
- Certification : UL, CSA
