Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT1HU3090AFF000XXX

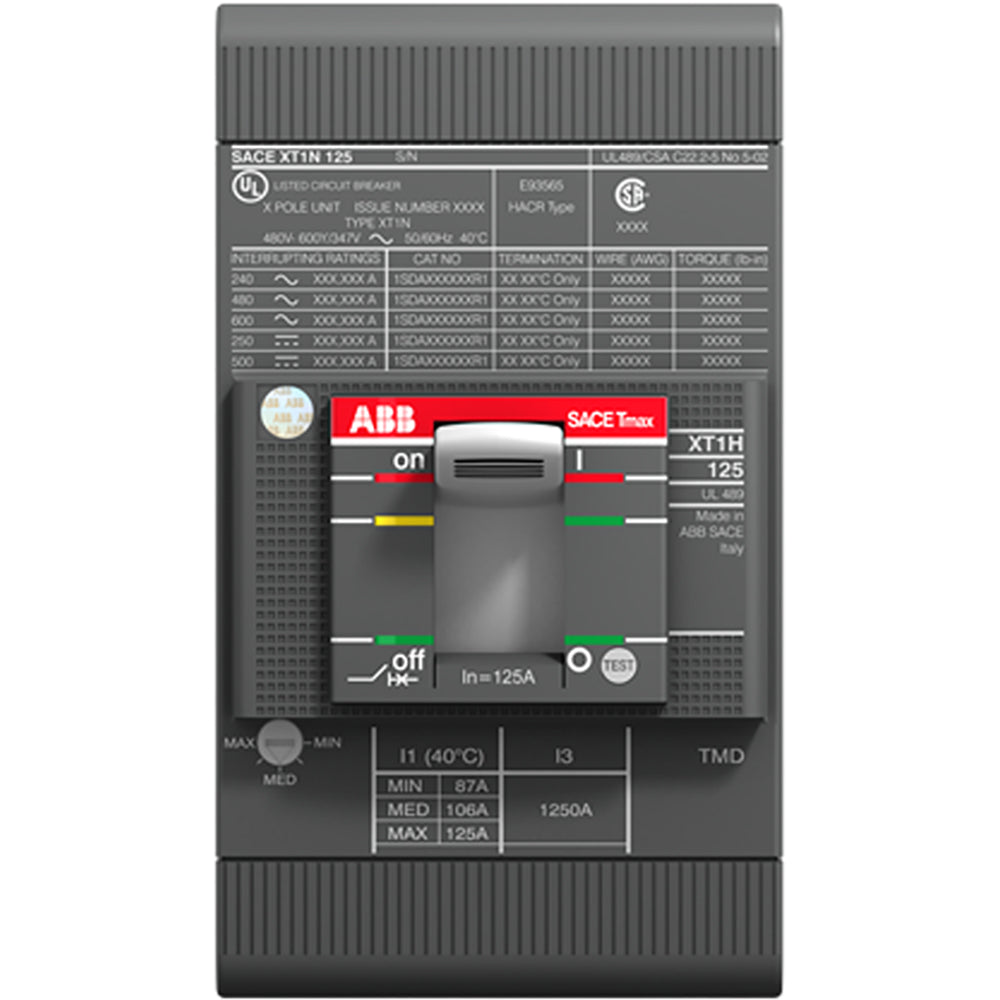

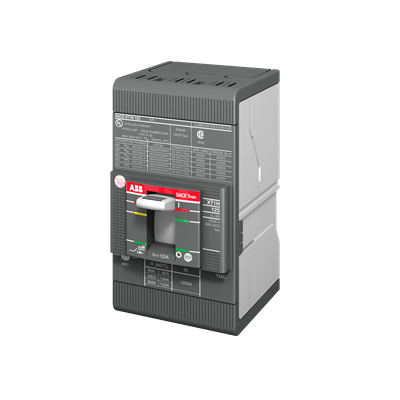

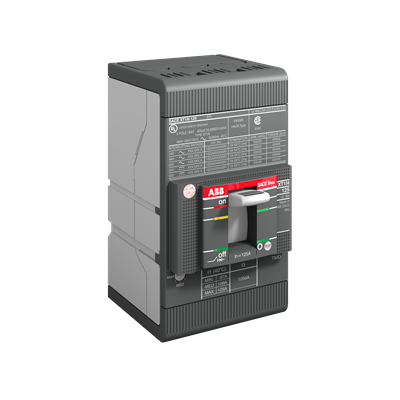

XT1HU3090AFF000XXX is a 90 amp, 3-pole molded case circuit breaker from ABB's Tmax XT series designed for low voltage applications up to 600Y/347/690 VAC. This breaker features a fixed thermal/magnetic trip unit and a 25 kA interrupt rating. It is built on the XT1 125A frame with front line/load side connections and double insulated construction, suitable for use in ambient temperatures from -13 to 158 degrees Fahrenheit.
- Amperage Rating: 90 A
- Voltage Rating: 600Y/347/690 VAC
- Number of Poles: 3
- Interrupt Rating: 25 kA
- Frame: XT1 125A
- Trip Type: Fixed Thermal/Fixed Magnetic
- Connection Type: Front Line/Load Side
- Insulation: Double Insulated
- Frequency: 50/60 Hz
- Operating Temperature: -13 to 158 °F
- Series: Tmax XT
- Country of Origin: Italy
Specifications
- Part Number: XT1HU3090AFF000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT1HU
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : 125A/XT1
- Protection : Thermal Magnetic
Product Data
- UPC : 01564478682
- GTIN : 08015644786823
- Country of Origin : United States
- Dimensions : 76.2 mm x 130 mm
- Weight : 5
- Standards : UL, CSA
- Certification : UL, CSA
