XT1HU3040AFF000XXX - ABB 40A 600Y/347VAC 3 Pole Molded Case Circuit Breaker Tmax XT Frame XT1 125A 25kA Interrupt Thermal Magnetic Trip

XT1HU3040AFF000XXX

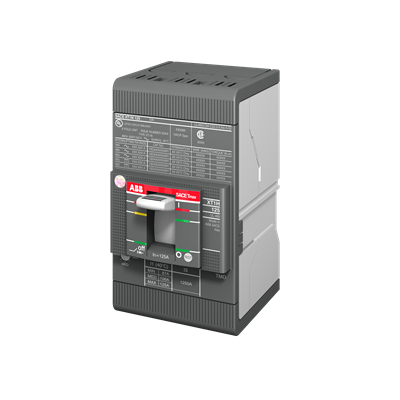

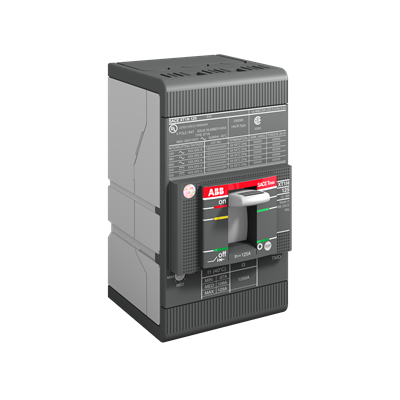

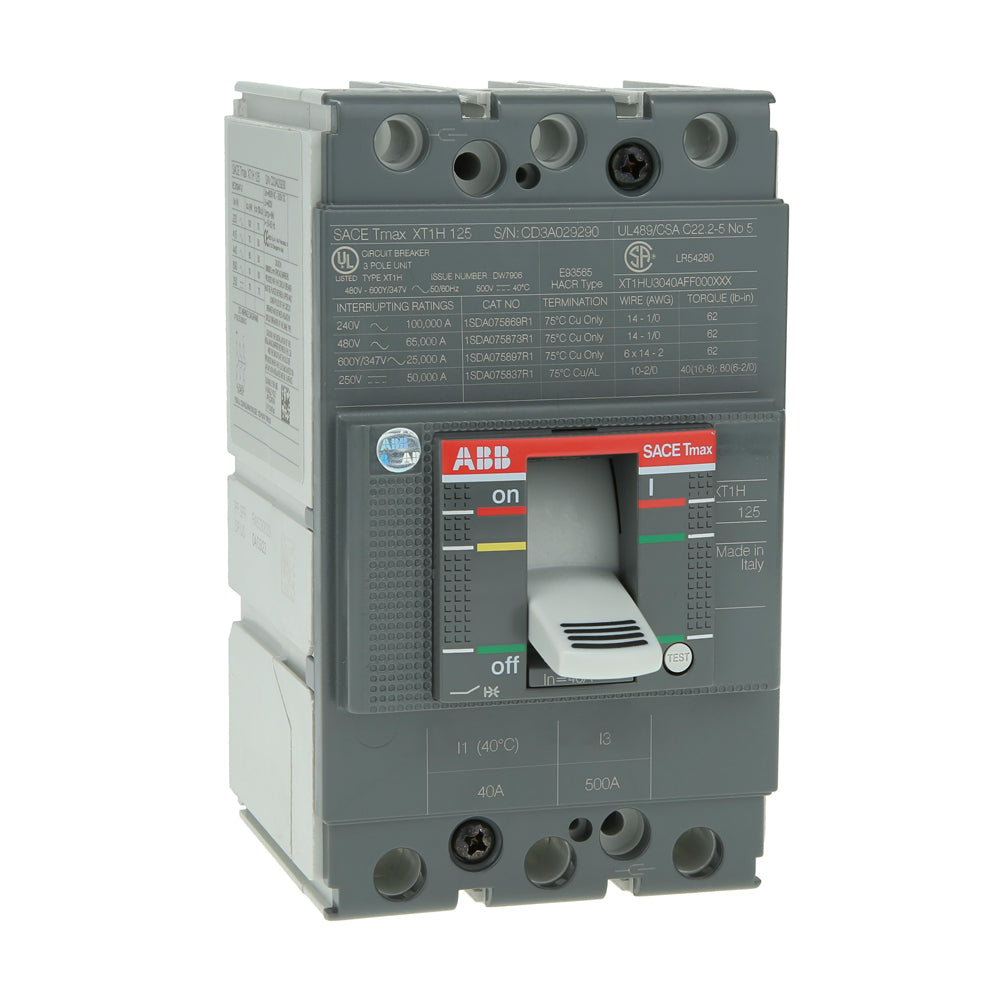

XT1HU3040AFF000XXX is an ABB Tmax XT low voltage molded case circuit breaker designed for distribution protection from main switchboards to sub-switchboards.

This fixed thermal/magnetic trip unit breaker features a XT1 125A frame with 3-pole configuration and front line/load side connection. It is rated for 600Y/347/690 VAC and 500 VDC operation at 50/60 Hz frequency. The breaker delivers a 25 kA interrupt rating at 240V AC and 65 kA at 480V AC, with a trip range of 40 to 500 amperes. Operating temperature range is -13 to 158 degrees Fahrenheit. Dimensions are 5.12 inches height by 3 inches width by 2.75 inches depth.

• Amperage Rating: 40 A
• Number of Poles: 3
• Frame Size: XT1 125A
• Rated Voltage: 600Y/347/690 VAC, 500 VDC
• Interrupt Rating: 25 kA at 240V AC, 65 kA at 480V AC
• Trip Type: Fixed Thermal/Magnetic (TMF)
• Trip Range: 40 to 500 A
• Frequency: 50/60 Hz
• Connection Type: Front Line/Load Side
• Temperature Range: -13 to 158 deg F
• Certifications: UL489, UL/CSA
• Dimensions: 5.12 in H x 3 in W x 2.75 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XT1HU3040AFF000XXX
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : SACE Tmax XT
• Type : XT1HU
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : 125A/XT1
• Protection : Thermal Magnetic

Product Data

• UPC : 01564478676
• GTIN : 08015644786762
• Country of Origin : United States
• Weight : 5
• Standards : UL, CSA
• Certification : UL, CSA
