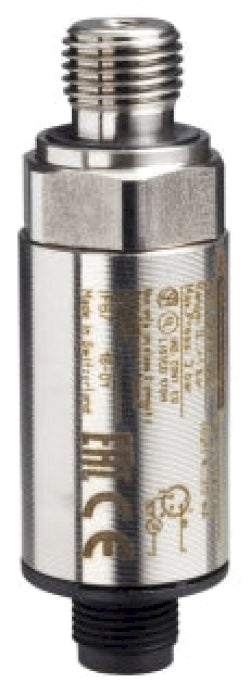

XMLG010D21 - Schneider Electric 0-10 Bar Analog 4-20 mA Pressure Switch IP66/IP67

XMLG010D21

XMLG010D21 is a Schneider Electric electronic pressure switch designed for industrial fluid applications with a 0 to 10 bar measurement range and analog 4-20 mA output.This pressure switch features a stainless steel AISI 303 construction with FPM (Viton) and ceramic components, suitable for air, fresh water, corrosive fluids, and hydraulic oil. It operates with a supply voltage of 12 or 24 VDC and offers IP66 and IP67 protection ratings, ensuring durability in harsh environments. The device includes a male G1/4A connector and an M12 3-pin male connector, with a fast measurement response time under 2 ms and a temperature operating range from -15 to 85 °C. It complies with CE standards and is rated for NEMA 4 protection.

Key Specifications
• Pressure Range: 0 to 10 bar
• Output Signal: Analog 4-20 mA
• Supply Voltage: 12 VDC or 24 VDC
• IP Rating: IP66, IP67
• Construction: Stainless steel AISI 303, FPM (Viton), Ceramic
• Connection Type: Male G1/4A and M12 3-pin male
• Response Time: < 2 ms
• Operating Temperature: -15 to 85 °C
• Standards: CE certified
• NEMA Protection: NEMA 4

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XMLG010D21
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Switch
• Item Subcategory : Parts & Accessories
• Section : Switch Mechanisms
• Family : OsiSense XM
• Type : XMLG
• Compatible Frames : NSXH

Product Data

• UPC : 038911096960
• GTIN : 03389110969603
• Country of Origin : Switzerland
• Dimensions : Length 1.91 in (48.5 mm) Height 2.29 in (58.1 mm)
• Weight : 0.29 lb
