Product Info
- Manufacturer:Federal Pacific
- Sub-Category:Molded Case
Description
XJL434400

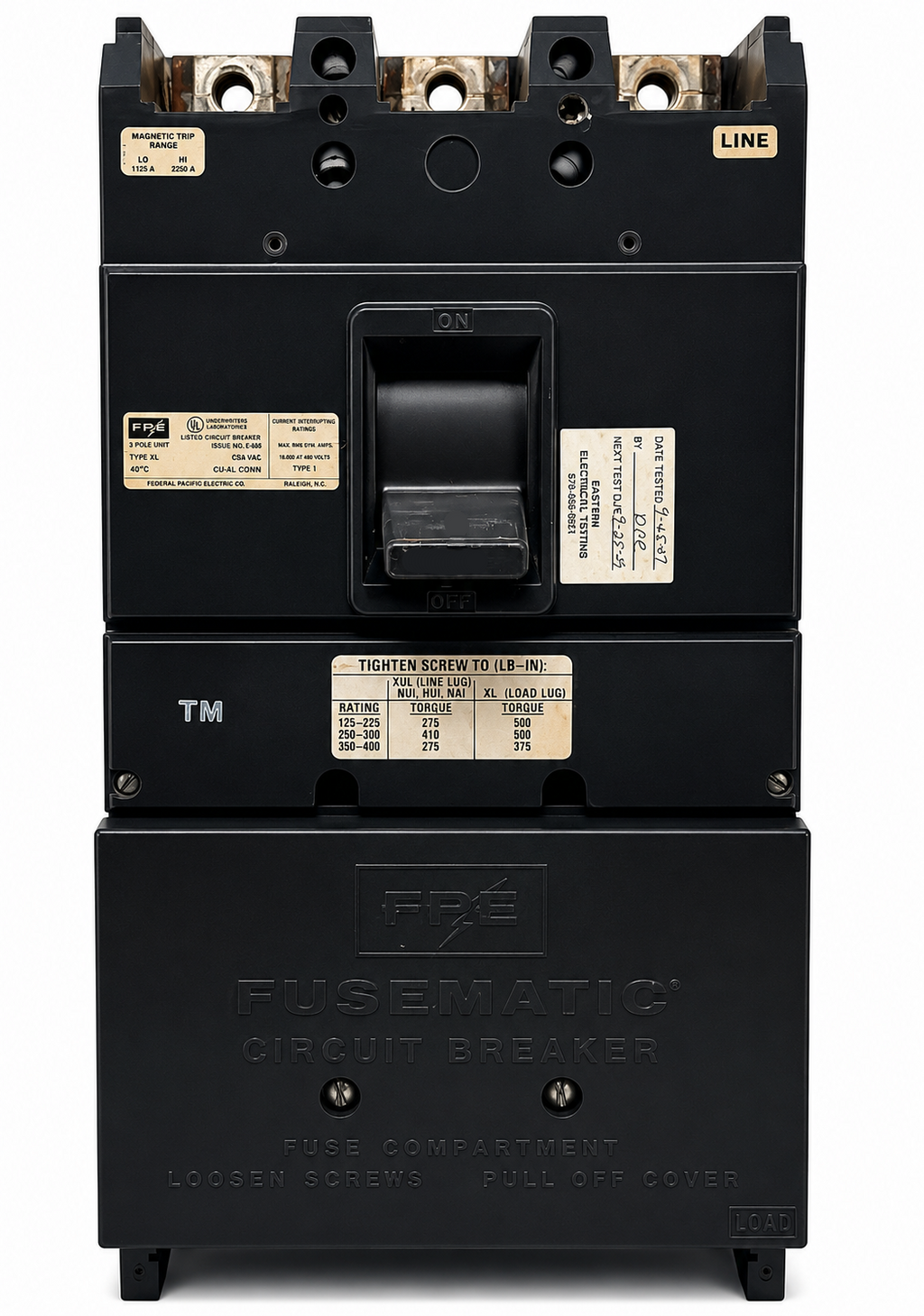

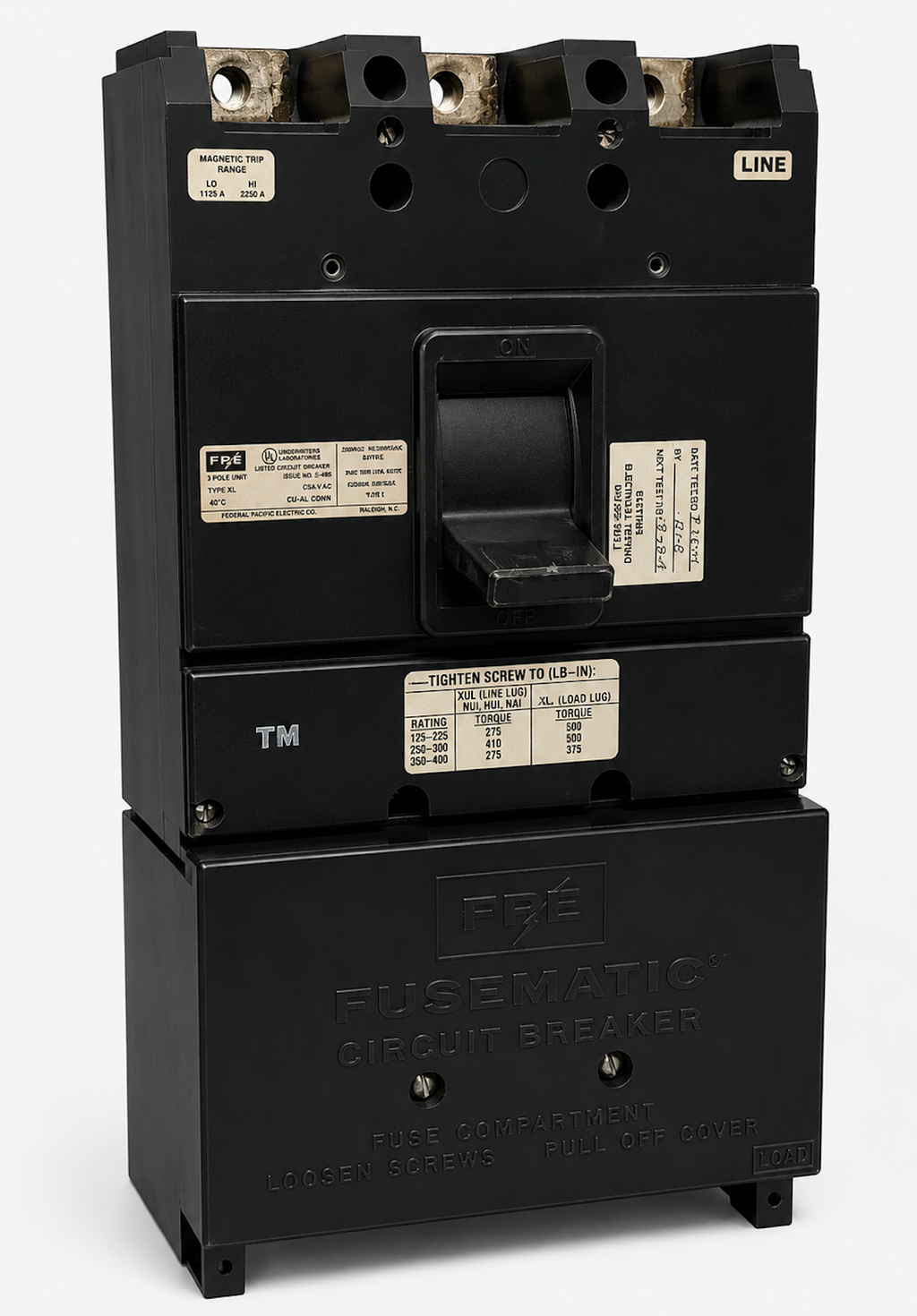

XJL434400 is a Federal Pacific 3 pole, 400 amp, 480/600 Volt bolt-on circuit breaker with thermal magnetic trip unit designed for reliable power distribution protection.This molded case circuit breaker features a 100kA interrupting rating at 600V, suitable for industrial and commercial applications. It includes load side lug terminals and provides long time and instantaneous trip functions. The breaker is part of the XJL series/frame and is designed for bolt-on mounting. It offers robust protection with a magnetic trip range of 2000-3200A and is UL listed.
- Key Specifications
- Amperage: 400 Amps
- Voltage: 480/600 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA @ 600V
- Series/Frame: XJL
- Trip Unit: Thermal Magnetic
- Load Side Lug Terminals
- Magnetic Trip Range: 2000-3200A
- UL Listed
- Weight: Approx. 32.6 lbs
Specifications
- Part Number: XJL434400
- Manufacturer : Federal Pacific
- Brand : Federal Pacific
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Fusematic
- Type : XJL
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 100kA@600V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 39
