Product Info
- Manufacturer:Federal Pacific
- Sub-Category:Molded Case
Description
XJL434200

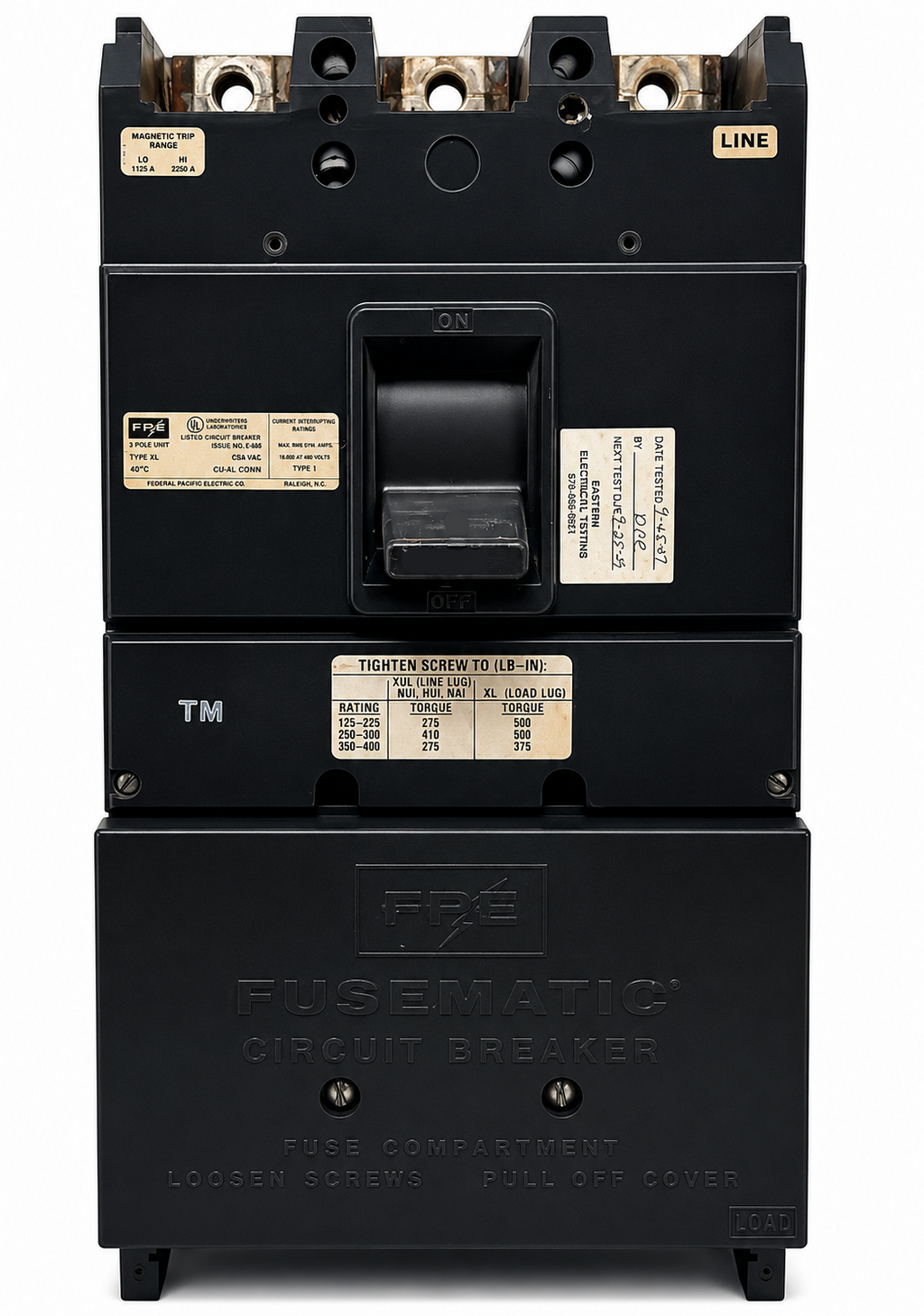

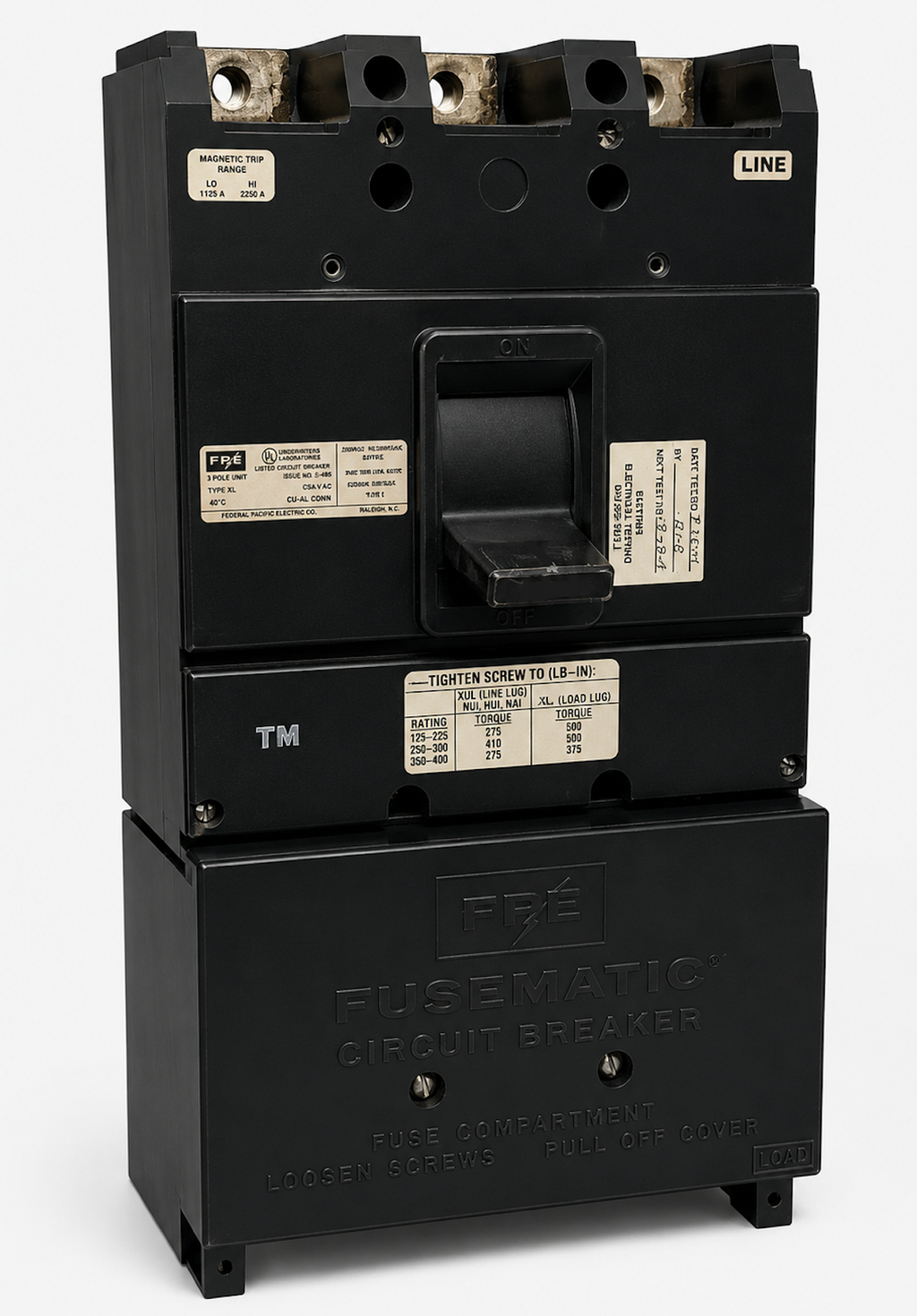

XJL434200 is a Federal Pacific 3-pole Fusematic circuit breaker rated for 200 amps and 480 volts AC, designed for industrial power distribution applications.This Type XJL molded case circuit breaker features thermal magnetic trip protection with a magnetic trip range of 850-2000 amps. It includes a set of bottom lugs for mounting and has a high interrupting rating of 150,000 amps at 480 volts AC. The breaker is suitable for 480/600 VAC systems and weighs approximately 33.5 lbs. It is a reliable choice for protecting electrical circuits with a frame rating of 400 amps and trip amps of 200. The breaker dimensions are 5.5" x 8.5" x 17".
- Key Specifications
- Amperage: 200 Amps
- Voltage: 480/600 VAC
- Poles: 3
- Type: Fusematic, Type XJL
- Interrupt Rating: 150,000 Amps @ 480 VAC
- Magnetic Trip Range: 850-2000 Amps
- Mounting: Includes bottom lugs
- Frame Amps: 400
- Weight: 33.5 lbs
- Dimensions (D x W x H): 5.5" x 8.5" x 17"
- Certifications: Listed as of 6/26/2024
- Part Number: XJL434200
- Manufacturer : Federal Pacific
- Brand : Federal Pacific
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Fusematic
- Type : XJL
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 100kA@600V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Weight : 39
