XB4BW33B5 - Schneider Electric 24V AC/DC Illuminated Push Button, 1NO+1NC, Harmony XB4 Motor Control

XB4BW33B5

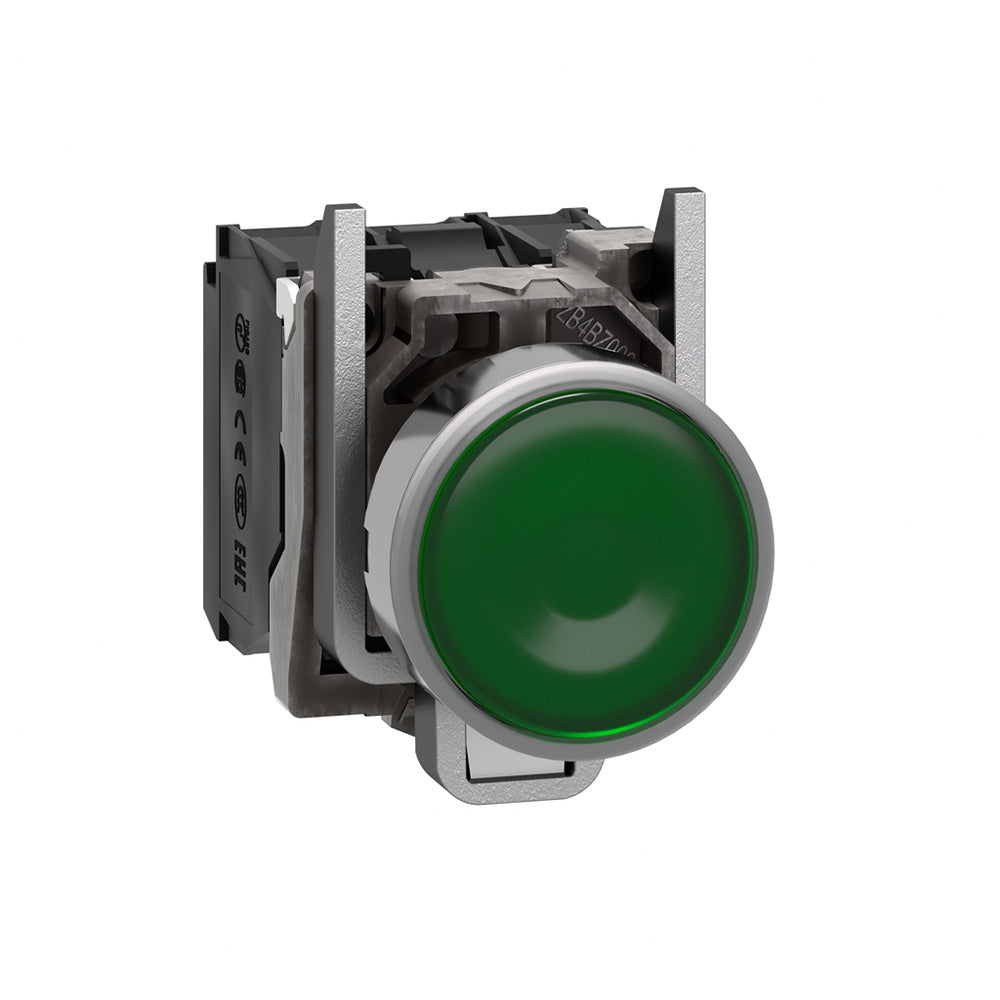

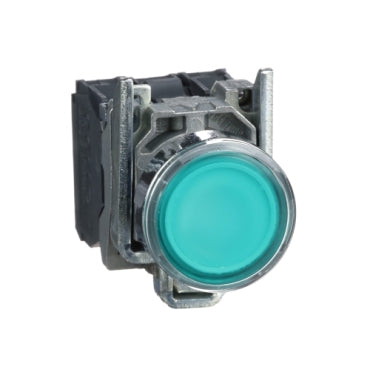

XB4BW33B5 is a Schneider Electric illuminated push button designed for motor control applications, operating at 24V AC/DC with a metal flush actuator.XB4BW33B5 features a 22 mm diameter, 1 normally open (NO) and 1 normally closed (NC) contact configuration, and a universal LED indicator. It complies with IEC 60947-5-1 standards, offers a rated insulation voltage of 600 V, rated impulse withstand voltage of 6 kV, and a rated operational current of up to 6 A at 120 V AC-15. The push button has a spring return mechanism and is built for high mechanical durability with 10 million cycles.

Key Specifications
• Voltage: 24V AC/DC

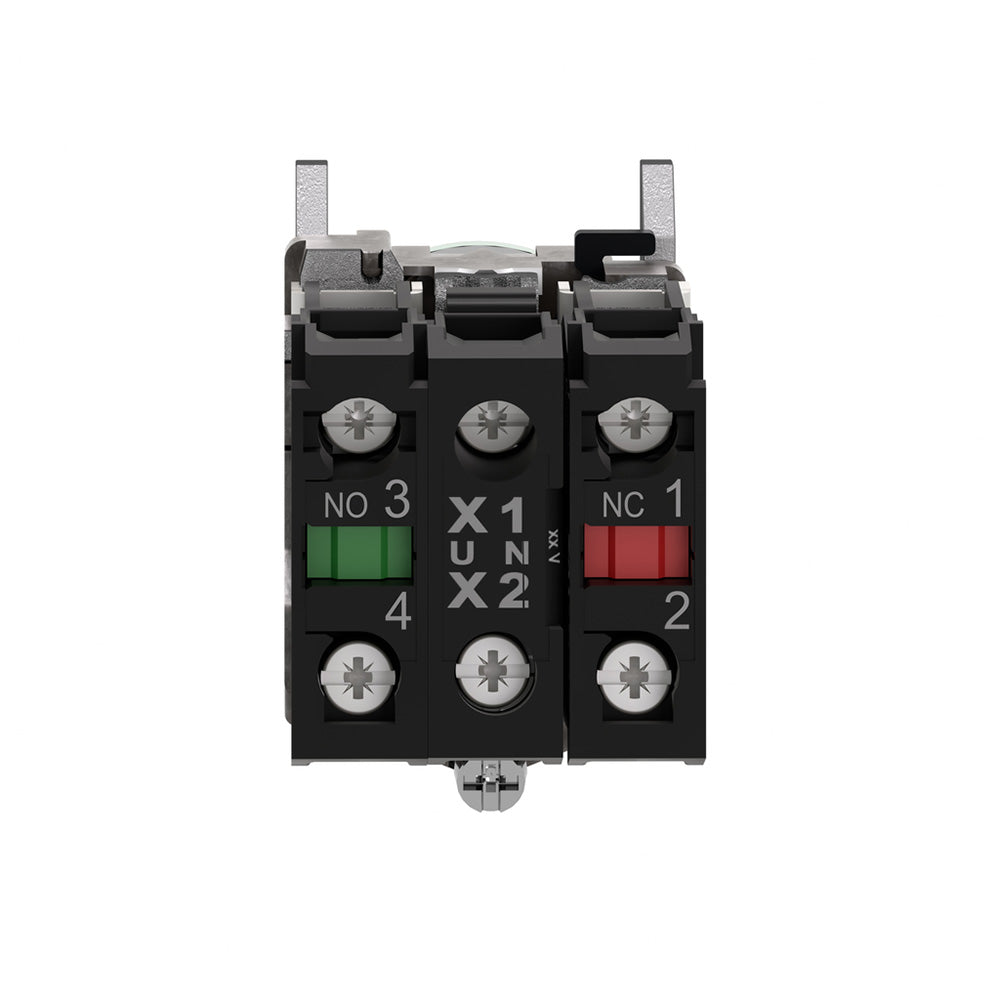

• Contact Configuration: 1NO + 1NC
• Diameter: 22 mm
• Illumination: Universal LED
• Rated Operational Current: 6 A at 120 V AC-15
• Rated Insulation Voltage: 600 V
• Rated Impulse Withstand Voltage: 6 kV
• Mechanical Durability: 10,000,000 cycles
• Mounting Type: Flush metal actuator
• Standards: IEC 60947-5-1 compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XB4BW33B5
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Pushbuttons
• Family : Harmony XB4
• Type : XB4B
• Voltage : 24 AC/DC
• Compatible Frames : AK-100

Product Data

• UPC : 038911089204
• GTIN : 03389110892048
• Country of Origin : France
• Dimensions : 1.9 in (47 mm) x 1.2 in (30 mm) x 2.2 in (57 mm) (Height x Width x Depth)
• Weight : 0.213
• Certification : Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
