XB4BW31B5 - Schneider Electric Harmony XB4 Illuminated Push Button, 22mm, 1NO+1NC, 24V AC/DC, Flush Metal, Spring Return

XB4BW31B5

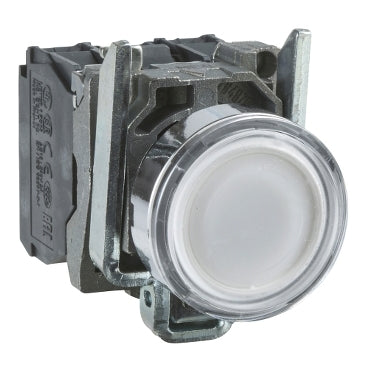

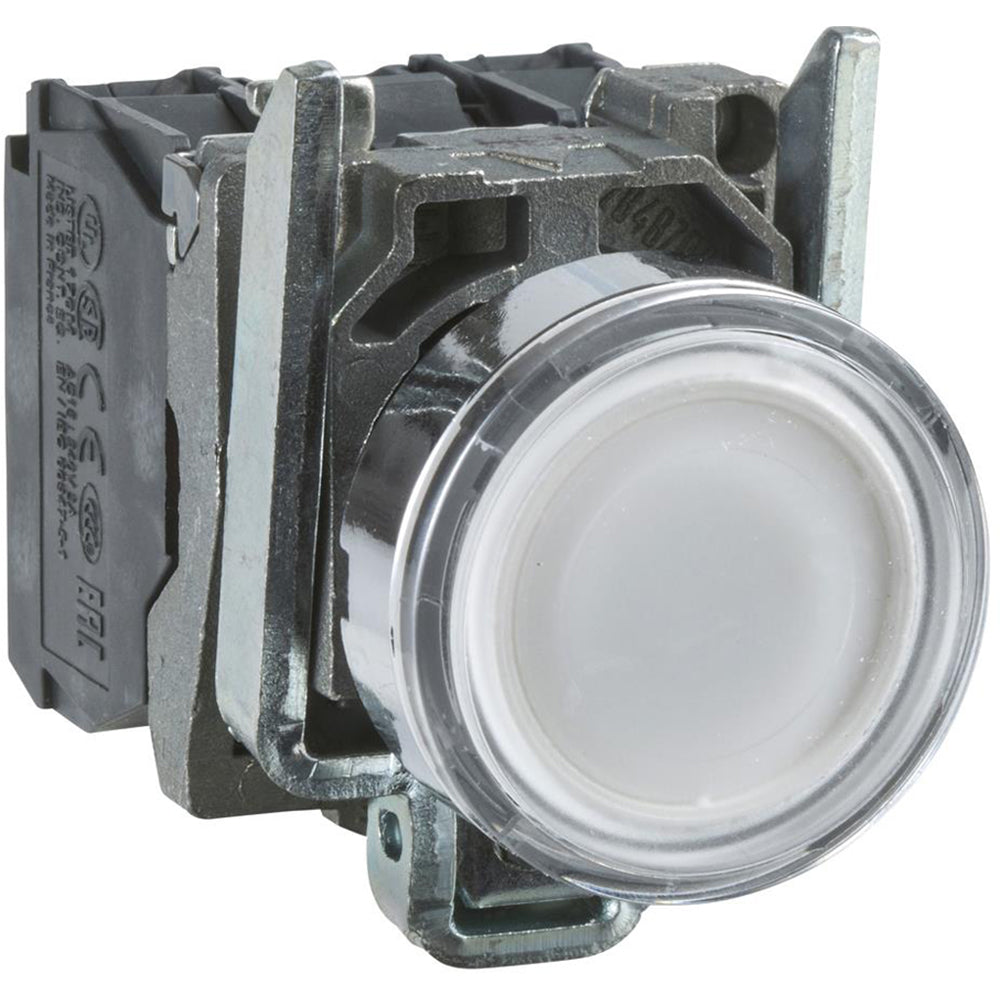

XB4BW31B5 is a Schneider Electric Harmony XB4 illuminated push button designed for motor control applications.This 22 mm round, flush metal push button features a white chromium-plated finish, a spring return mechanism, and is illuminated with a universal LED supplied at 24 V AC/DC. It includes one normally open (1 NO) and one normally closed (1 NC) contact block, making it suitable for versatile control functions. The push button is UL 508 certified and rated for 6A at 120 V AC and 550mA at 125 V DC, ensuring reliable operation in industrial environments.

Key Specifications
• Part Number: XB4BW31B5
• Manufacturer: Schneider Electric
• Category: Motor Control Push Button
• Mounting Diameter: 22 mm
• Contact Configuration: 1 NO + 1 NC
• Voltage Rating: 24 V AC/DC (LED), 120 V AC (contacts), 125 V DC (contacts)
• Current Rating: 6A AC, 550mA DC
• Actuator Type: Flush, Round, Metal
• Operation: Momentary, Spring Return
• Illumination: Universal LED
• Certifications: UL 508
• Finish: White Chromium Plated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: XB4BW31B5
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Pushbuttons
• Family : Harmony XB4
• Type : XB4B
• Voltage : 24 AC/DC
• Compatible Frames : AK-75



Product Data

• UPC : 038911089203
• GTIN : 03389110892031
• Country of Origin : France
• Dimensions : 1.9 in (47 mm) x 1.2 in (30 mm) x 2.2 in (57 mm) (Height x Width x Depth)
• Weight : 0.212
• Certification : Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
