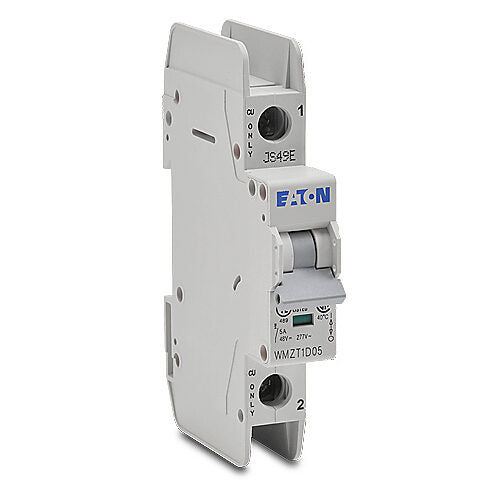

WMZT1D05 - Eaton Cutler Hammer 5A 480V 1 Pole Miniature Circuit Breaker D Curve 10kA SCCR DIN Rail Mount

WMZT1D05

WMZT1D05 is a single pole miniature circuit breaker from Eaton Cutler Hammer, designed for reliable branch circuit protection in industrial and commercial applications. This breaker features a 5A current rating, 480V AC maximum voltage, and a D curve trip characteristic for handling high inrush loads. It is DIN rail mountable for easy installation and offers a 10kA short circuit interrupt rating at 480V for robust protection. The breaker is UL 489 listed and suitable for use in control panels and machine building environments. This Eaton WMZT series breaker is thermal magnetic, providing both overload and short circuit protection. The D curve trip unit is ideal for applications with high inrush currents such as motors and transformers. The breaker is designed for use with copper or aluminum conductors and features a clear status indicator for easy monitoring. Field mountable accessories such as auxiliary switches and shunt trips are available for added functionality.

• Part Number: WMZT1D05
• Manufacturer: Eaton, Cutler Hammer
• Series: WMZT
• Amperage: 5A
• Voltage: 480V AC
• Poles: 1 Pole
• Mounting Type: DIN Rail
• Interrupt Rating: 10kA @ 480V
• Frame: Miniature
• Trip Unit: D Curve
• Certifications: UL 489 Listed
• Application: Industrial, Commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZT1D05
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 480
• Amperage : 5
• Phase : 1
• Poles : 1
• AIC rating : 10kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786685256214
• GTIN : 00786685256214
• Country of Origin : Spain
• Weight : 0.28
• Certification : UL 489;CSA Std. C22.2 No. 5;RoHS Compliant
