Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
WMZT1D03

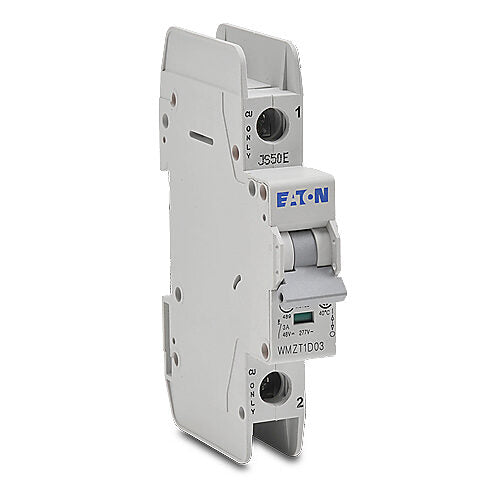

WMZT1D03 is a current limiting miniature circuit breaker manufactured by Eaton, designed for reliable circuit protection in demanding environments.
This Eaton WMZT1D03 offers a 3A current rating, 277/480Y VAC voltage rating, and a 10kA short circuit current rating. It features a 1-pole design, D curve trip characteristic for high inrush applications, and mounts on standard 35mm DIN rail. The breaker is UL 489 listed for branch circuit protection and is suitable for a wide range of industrial and commercial applications.
-
Key Specifications
- Part Number: WMZT1D03
- Manufacturer: Eaton
- Amperage: 3A
- Voltage: 277/480Y VAC
- Poles: 1
- Mounting Type: 35mm DIN Rail
- Interrupt Rating: 10kA
- Series/Frame: WMZT
- Trip Unit: D Curve (10–20x In)
- Certifications: UL 489 Listed
- Thermal Magnetic Protection
- Current Limiting Design
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: WMZT1D03
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 3
- Phase : 1
- Poles : 1
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525619
- GTIN : 00786685256191
- Country of Origin : Spain
- Weight : 0.28
- Certification : CSA Std. C22.2 No. 5;UL 489;RoHS Compliant
