Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
W200M6CFC

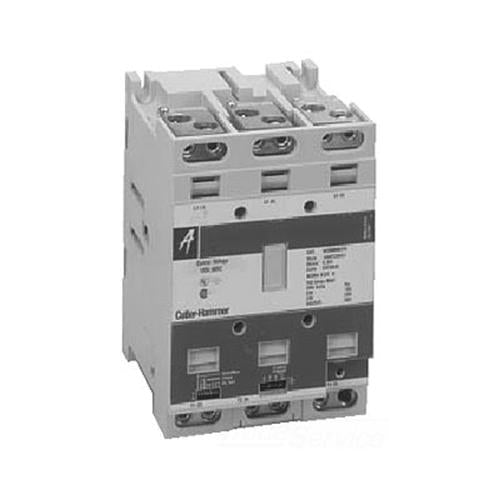

W200M6CFC is a Cutler Hammer Advantage Series motor starter designed for full voltage, non-reversing motor control applications.This NEMA Size 6 starter features a 3-pole configuration rated for 540 amperes and 600 volts AC system voltage. It includes a 120V coil at 60 Hz and provides standard overload protection with phase loss, phase unbalance, and ground current protection. The starter supports selectable trip classes with automatic or manual reset options and eliminates the need for heater elements, reducing installation costs.
- Manufacturer: Cutler Hammer (Eaton)
- Series/Frame: W200, Size 6
- Amperage: 540A
- Voltage: 600V AC
- Poles: 3
- Coil Voltage: 120V, 60 Hz
- Type: Full Voltage, Non-Reversing
- Overload Protection: Phase loss, phase unbalance, ground current
- Trip Class: Selectable (Class 10/20/30)
- Reset: Automatic/Manual
- Mounting: Open NEMA construction
- Certifications: NEMA compliant
Specifications
- Part Number: W200M6CFC
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Advantage Series
- Type : W200
- Voltage : 600
- Amperage : 540
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
- Nema Rating : 6
Product Data
- UPC : 078668552469
- GTIN : 00786685524696
- Dimensions : 5.51" X 8.86" X 6.14"
- Weight : 6.83 lb
