VT327 - Boltswitch 800 Amp 240 Volt 3 Pole Bolted Pressure Switch NEMA 1

VT327

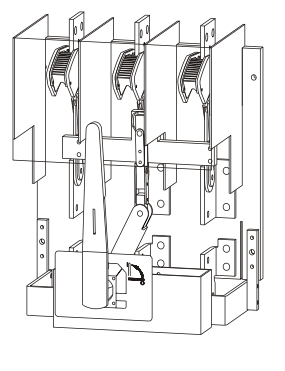

VT327 is a Boltswitch 3 phase, 3 pole bolted pressure switch rated for 800 amps and 240 volts with a NEMA 1 enclosure rating.This fusible bolted pressure switch features quick-make, quick-break operators designed for reliable operation and safety. It is suitable for use on circuits with high available fault currents and provides dead-front construction with provisions for padlocking in the open position. The switch is designed for 3-wire, 3-pole applications and is UL labeled for use on circuits capable of delivering 200,000 RMS symmetrical amperes.

Key Specifications
• Amperage: 800 Amps
• Voltage: 240 Volts AC
• Poles: 3 Pole
• Phase: 3 Phase
• Mounting Type: NEMA 1 Enclosure
• Switch Type: Bolted Pressure Switch (Fusible)
• Interrupt Rating: Suitable for 200,000 RMS symmetrical amperes
• Operator: Quick Make-Quick Break
• Padlock Provision: Yes, for open position
• UL Listed: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VT327
• Manufacturer : Boltswitch
• Brand : Boltswitch
• Category : Switch
• Item Subcategory : Bolted Pressure
• Family : VT Series
• Type : VT
• Voltage : 240
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : T
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : THKM

Product Data

• Weight : 250
