Product Info
- Manufacturer:Boltswitch
- Sub-Category:Bolted Pressure
Description
VLB4411N-MM

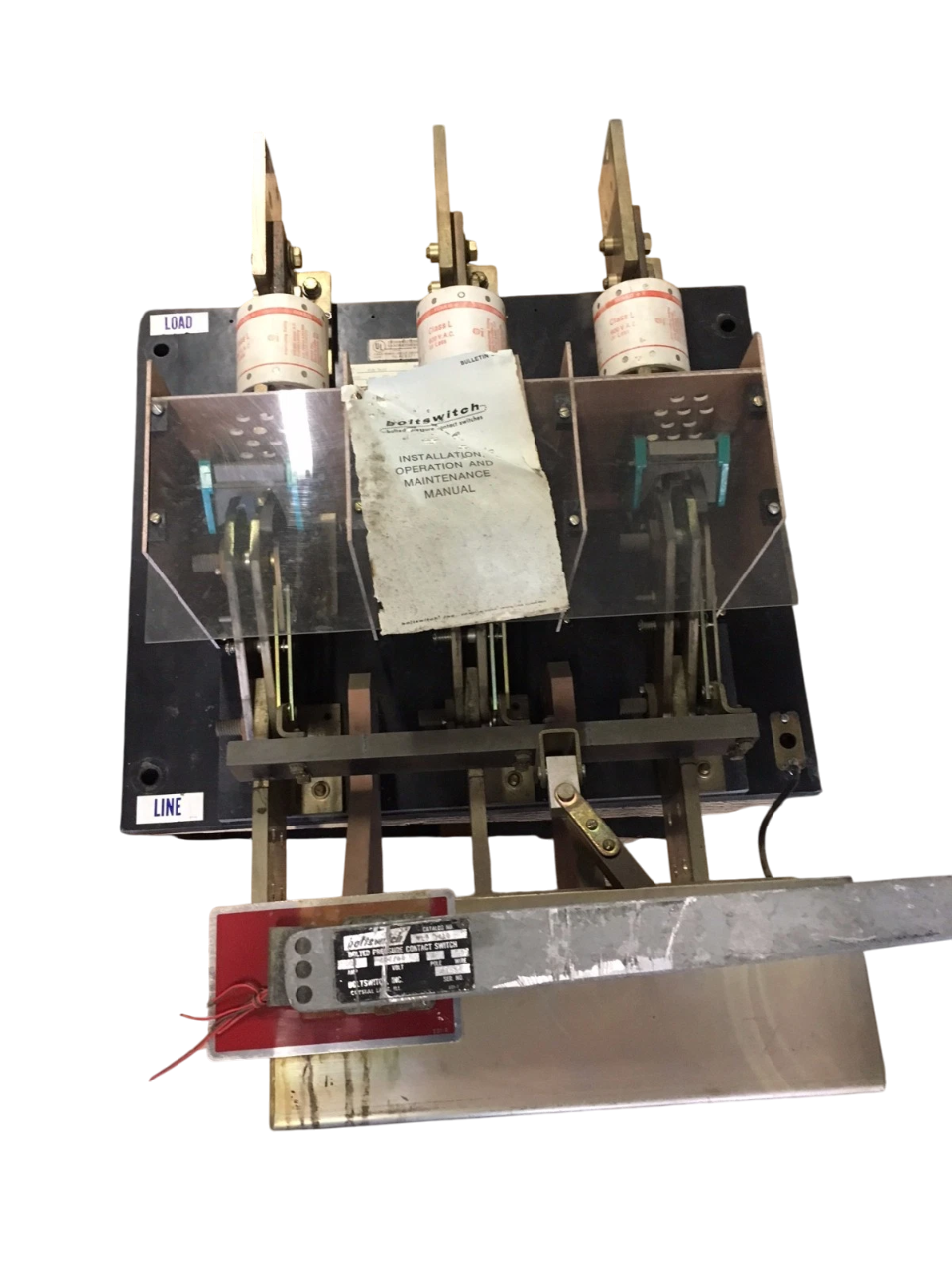

VLB4411N-MM is a 3-phase bolted pressure switch designed for industrial power distribution applications requiring reliable circuit protection and manual disconnection. This heavy-duty switch combines robust construction with proven performance in demanding environments.Technical Overview: The VLB4411N-MM features a bottom-feed configuration suitable for mounting in dead-front switchboards. It delivers a 200,000 ampere fault current rating at 480V, providing exceptional protection against arc flash hazards. The switch accommodates Class L or T fuses and includes provisions for up to three padlocks in the open position for lockout/tagout compliance. The motorized shunt trip operator option enables remote trip capability for enhanced safety and control.Key Specifications
- Voltage Rating: 480V AC
- Amperage: 2500A
- Poles: 3-pole
- Phase: 3-phase
- Configuration: Bottom-feed (VLB series)
- Interrupt Rating: 200,000A @ 480V
- NEMA Enclosure Rating: NEMA 1
- Fuse Class: Class L or T
- UL Listed: UL 977 Fused Power Circuit Devices (File No. E44498)
- Mounting: Dead-front switchboard compatible
- Padlock Provisions: Up to three padlocks
Specifications
- Part Number: VLB4411N-MM
- Manufacturer : Boltswitch
- Brand : Boltswitch
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : VLB Series
- Type : VLB
- Voltage : 480
- Amperage : 2500
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : L
- Configuration : Single
Product Data
- Weight : 250
