Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
V7H3605MS

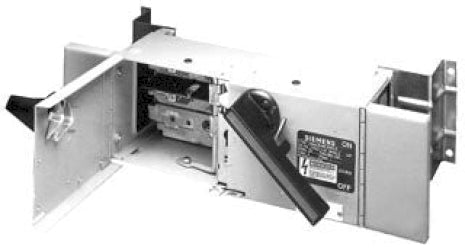

V7H3605MS is a Siemens Vacu-Break 3-pole panel mount switch rated for 400 amps and 600 volts with NEMA 1 enclosure. This Siemens ITE V7H3605MS switch is designed for three-phase power applications, providing reliable switching with a 200kA interrupting rating at 480V. It features a fusible design compatible with R, H, and K fuse classes and supports power ratings up to 125 HP at 600 VAC standard and 350 HP maximum. The panel mount configuration allows easy installation in electrical panels.
- Amperage: 400A
- Voltage: 600V
- Poles: 3
- Mounting Type: Panel Mount
- Interrupt Rating: 200kA at 480V
- Enclosure Type: NEMA 1
- Switch Family: Vacu-Break
- Fuse Class Compatibility: R, H, K
- Power Rating: 125 HP at 600 VAC (standard), 350 HP max
Specifications
- Part Number: V7H3605MS
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Vacu-Break
- Type : V7H
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : PLP
Product Data
- UPC : 078364323317
- GTIN : 00783643233171
- Weight : 62.722
