2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
V7E2203LR

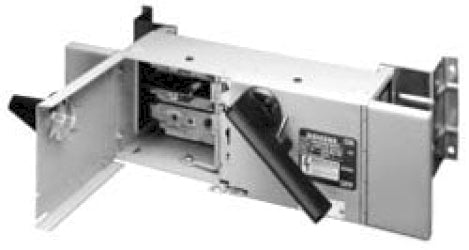

V7E2203LR is a Siemens 100 Amp, 240 Volt, 2-pole panel mount switch designed for reliable circuit protection in low voltage applications.The Siemens V7E2203LR switch features a 2-pole configuration suitable for 1-phase systems, with a 240 Volt rating and 100 Ampere capacity. It is a panel mount type switch with a NEMA 1 enclosure rating, providing standard protection for indoor use. This switch is part of the Siemens Vacu-Break VB series, known for robust performance and compliance with UL standards.
- Amperage: 100 Amp
- Voltage: 240 Volt
- Number of Poles: 2
- Mounting Type: Panel Mount
- Series/Frame: Vacu-Break VB
- NEMA Rating: 1
- UL Listed
Specifications
- Part Number: V7E2203LR
- Manufacturer : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Vacu-Break
- Type : V7E
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 200kA@240V
- Fuse Class : R,H,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : FAP
Product Data
- UPC : 066264370000
- GTIN : 00662643700008
- Country of Origin : Mexico
- Dimensions : 20.472 x 10.236 x 10.63 inch
- Weight : 22.84
