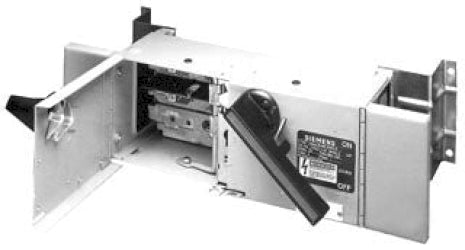

V7B2212LR - Siemens 60A 240V 2 Pole Fusible Panel Mount Disconnect Switch

V7B2212LR

V7B2212LR is a Siemens 2 pole fusible panel mount disconnect switch designed for reliable circuit isolation in industrial and commercial applications. This switch features a 60 ampere rating and is rated for 240 volts AC, making it suitable for a wide range of power distribution needs. The V7B2212LR is part of the Vacu-Break V7B series and is engineered for safe and efficient operation with Class R fuse provisions. It is constructed for panel mounting and provides a robust solution for manual circuit control. The V7B2212LR offers a visible blade quick make and break switching action, ensuring clear visual confirmation of the switch position. It is suitable for both main and branch circuit applications and meets UL98 requirements. The switch is designed for easy installation and reliable performance in demanding environments.

• 60A Amperage Rating
• 240V AC Voltage Rating
• 2 Pole Configuration
• Panel Mount Installation
• Class R Fuse Provision
• Visible Blade Switching Action
• UL98 Listed
• Meets NFPA79 Requirements
• Short Circuit Rating: 200,000 AIC with Class R or J Fuses
• Defeatable Cover Interlock
• Padlockable in OFF Position
• Load Break and Horsepower Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: V7B2212LR
• Manufacturer : Siemens
• Category : Switch
• Item Subcategory : Panel Mount
• Family : Vacu-Break
• Type : V7B
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 200kA@240V
• Fuse Class : R,H,K
• Configuration : Dual/Twin
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : PJP

Product Data

• UPC : 783643232624
• GTIN : 00783643232624
• Country of Origin : Mexico
• Dimensions : 19.685 x 7.874 x 10.63 inch
• Weight : 14.44
