V7B2211LR - Siemens Vacu-Break 30A 2-Pole 240V Fusible Panelboard Switch

V7B2211LR

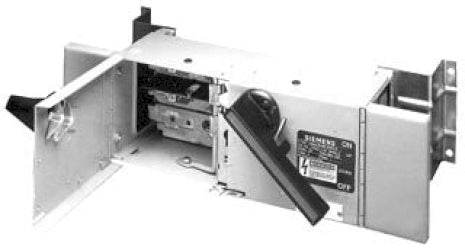

V7B2211LR is a Siemens Vacu-Break Type VB fusible panelboard disconnect switch rated for 30 amperes at 240 volts AC with 2-pole configuration and DPDT contact form. This switch features the exclusive Vacu-Break arc control technology that safely confines and controls hazardous switching arcs within the Vacu-Break chamber, ensuring reliable and safe operation. The unit is designed for panel mount installation with NEMA 1 enclosure rating and 60 Hz frequency operation. Dimensions are 5 inches high by 17 inches wide by 6.75 inches deep, making it suitable for integration into existing Siemens switchboards and power panelboards. The switch incorporates pressure terminal connectors suitable for aluminum or copper conductors, quick-make quick-break mechanism with powerful springs, and NEMA phased line connections.

• Amperage Rating: 30A
• Voltage Rating: 240V AC
• Poles: 2
• Contact Form: DPDT
• Enclosure Type: NEMA 1
• Frequency: 60 Hz
• Mounting: Panel Mount
• Switch Type: Fusible Vacu-Break
• Dimensions: 5 in H x 17 in W x 6.75 in D
• Arc Control: Vacu-Break Chamber Technology

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: V7B2211LR
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Panel Mount
• Family : Vacu-Break
• Type : V7B
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 200kA@240V
• Fuse Class : R,H,K
• Configuration : Dual/Twin
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : PJP

Product Data

• UPC : 783643232600
• GTIN : 00783643232600
• Country of Origin : Mexico
• Dimensions : 19.685 x 7.874 x 10.63 inch
• Weight : 14.44
