Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
V2E2204LR

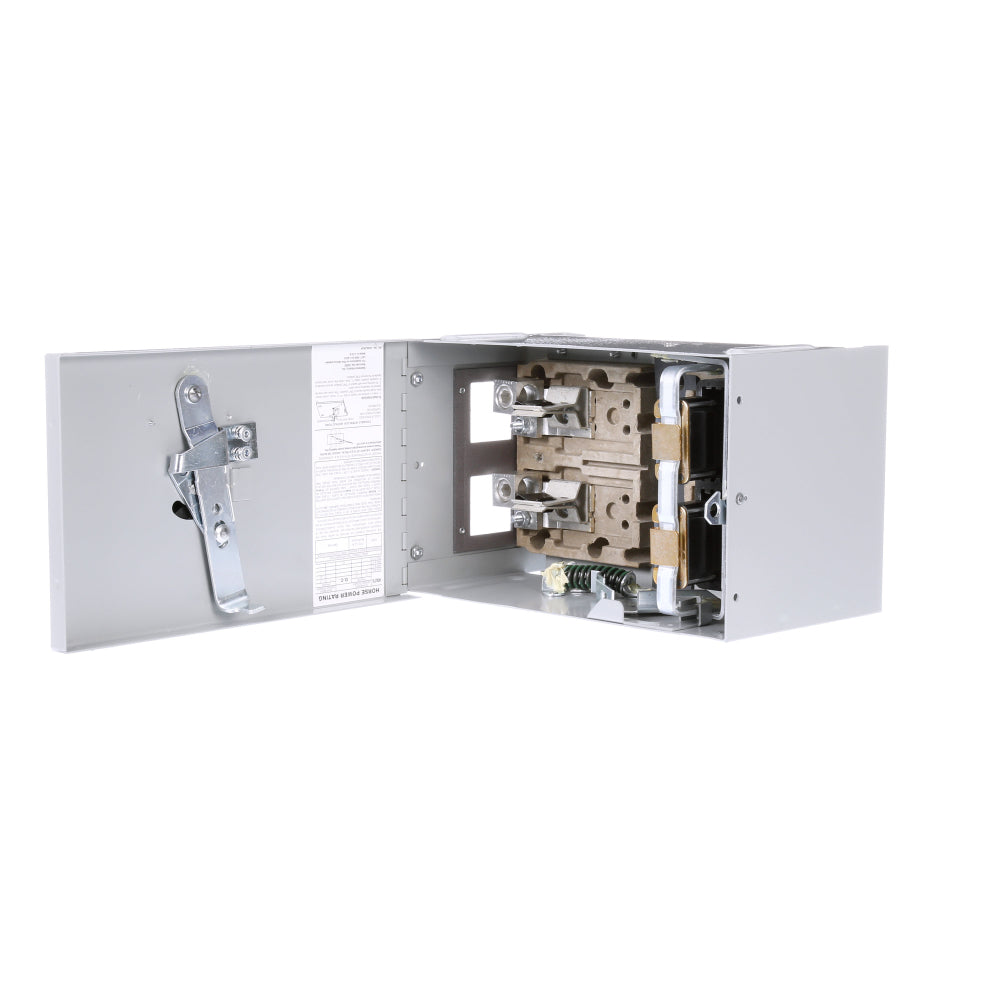

V2E2204LR is a Siemens 200A 2-pole fusible panelboard disconnect switch designed for reliable circuit protection in industrial and commercial applications. This switch features a NEMA 1 enclosure and is suitable for use with 240V AC and 250V DC systems. The Siemens V2E2204LR is a panel-mounted disconnect switch with a robust design for safe and efficient operation. It supports a wide range of wire sizes and is rated for high interrupt capacity, making it ideal for demanding environments.
- 200A current rating
- 240V AC / 250V DC voltage rating
- 2 poles
- Panelboard mounting
- NEMA 1 enclosure
- 200kA AIC at 240V
- 15 HP at 240V AC
- 40 HP at 250V DC
- Operating temperature: -20°F to 120°F
- 8000 operating cycles
- Wire size: 6 AWG to 250 KCMIL (Aluminum/Copper)
- Non-insulated
Specifications
- Part Number: V2E2204LR
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Vacu-Break
- Type : V2E
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 200kA@240V
- Fuse Class : R,H,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : FAP
Product Data
- UPC : 078364323252
- GTIN : 00783643232525
- Weight : 19.048
