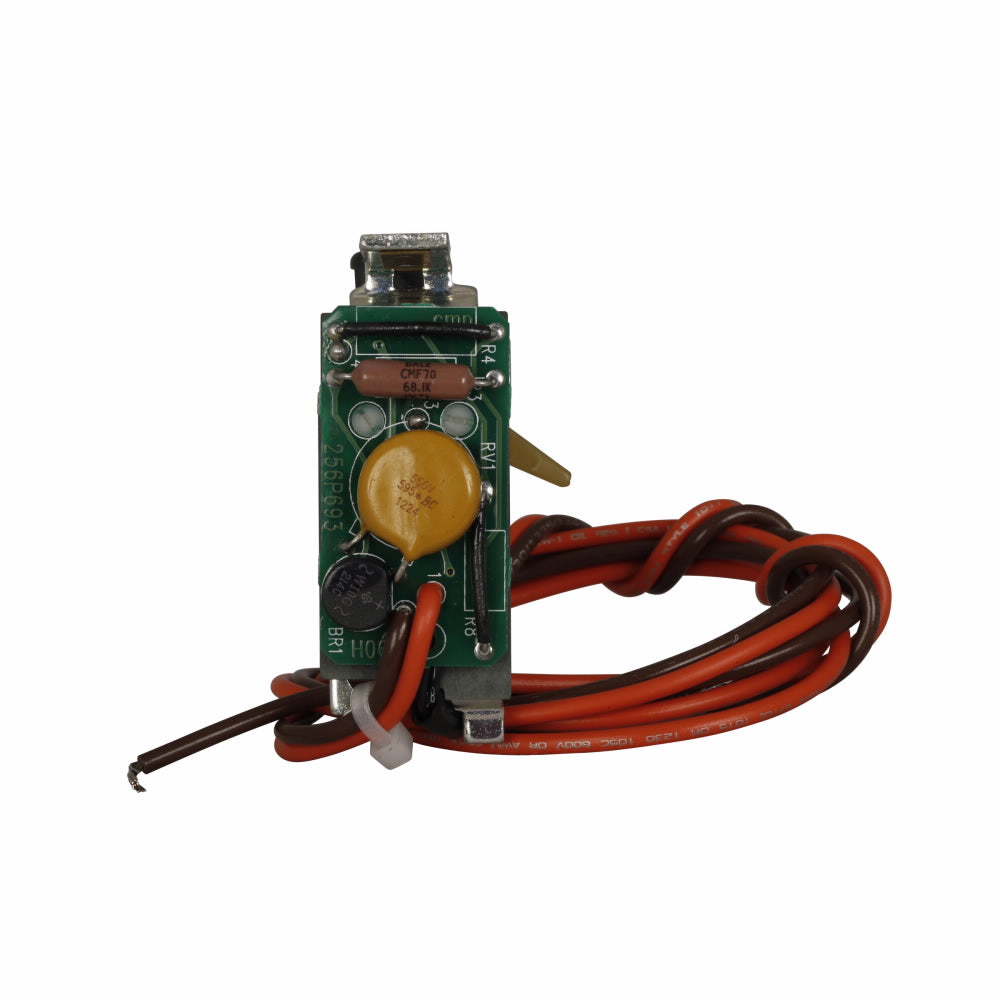

UVH3RP20K - Cutler Hammer Under Voltage Release 12VDC Right Side Mounted

UVH3RP20K

UVH3RP20K is an under voltage release mechanism designed for Series C molded case circuit breakers from Cutler Hammer. This right-side mounted accessory provides reliable undervoltage protection with pigtail-style leads for easy installation and integration into existing electrical systems.Technical Description

The UVH3RP20K under voltage release is engineered to trip circuit breakers when control voltage drops below a specified threshold, protecting equipment and personnel from hazardous conditions. It features a 12 VDC control voltage rating and is compatible with multiple frame types including DK, KD, KDB, HKD, HKDB, KDC, CKD, and CHKD frames. The pigtail-style lead configuration simplifies wiring and reduces installation time on the job site.

Key Specifications

• Part Number: UVH3RP20K
• Manufacturer: Cutler Hammer
• Product Type: Under Voltage Release
• Series: Series C
• Control Voltage: 12 VDC
• Mounting: Right Side Mounted
• Lead Style: Pigtail
• Compatible Frames: DK, KD, KDB, HKD, HKDB, KDC, CKD, CHKD

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: UVH3RP20K
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Under Voltage Release
• Family : Series C
• Type : UVH
• Control Voltage Minimum : 12
• Compatible Frames : DK,KD,KDB,HKD,HKDB,KDC,CKD,CHKD
• Control Voltate Maximum : 12

Product Data

• UPC : 786679222003
• GTIN : 00786679222003
• Country of Origin : Dominican Republic
• Dimensions : 5 in x 2.5 in x 3.13 in (Length/Depth x Height x Width)
• Weight : 0.6
• Certification : UL Listed
