UBIA240NI - Connecticut Electric 40A 2 Pole 120/240V Plug-In Circuit Breaker Type A

UBIA240NI

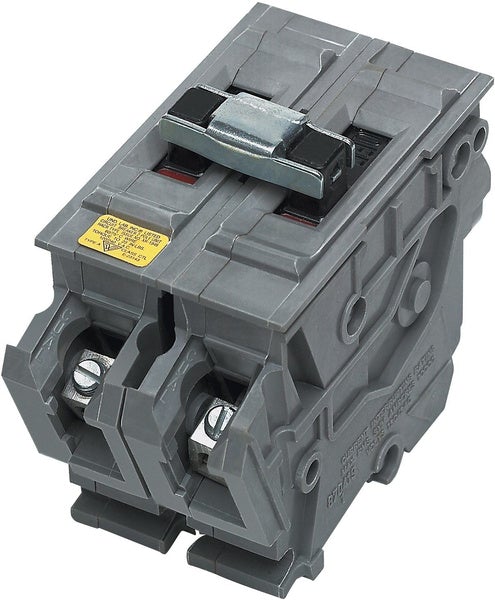

UBIA240NI is a 2 pole, 40 amp, 120/240 volt plug-in circuit breaker designed for use in Wadsworth load centers that accept Type A (1" wide) breakers. This breaker is manufactured by Connecticut Electric and is ETL listed for residential and commercial applications. The UBIA240NI provides reliable overcurrent protection for branch circuits requiring a 40 amp rating. It features a plug-in mounting style for easy installation and removal, making it ideal for Type A compatible panels. The breaker is rated for 10,000 AIC at 240 volts, ensuring safe interruption of fault currents.

• Part Number: UBIA240NI
• Manufacturer: Connecticut Electric
• Amperage: 40A
• Voltage: 120/240V
• Poles: 2 Pole
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 AIC @ 240V
• Series/Frame: Type A (1" wide)
• Trip Unit: Thermal-Magnetic
• Certifications: ETL Listed
• Application: Residential/Commercial
• Color: Gray

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: UBIA240NI
• Manufacturer : Connecticut Electric
• Brand : Connecticut Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : A Series
• Type : UBIA
• Voltage : 120/240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 100A/A
• Temp Rating : Minimum Operating Temp 0 Degrees F Max. Operating Temp.250 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 094925008173
• GTIN : 00094925008180
• Country of Origin : China
• Dimensions : 2 in x 3.76 in x 3.76 in
• Weight : 0.75 lb
• Panel Type : Wadsworth Load Centers
• Standards : ETL Listed, UL Listed
• Certification : ETL Listed, UL Listed
