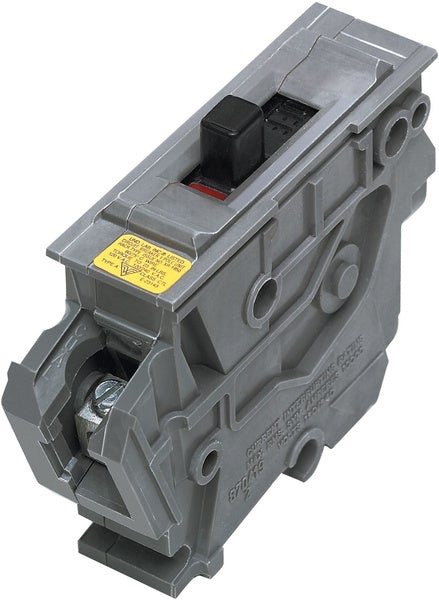

UBIA20NI - Connecticut Electric 20 Amp 120V 1-Pole Plug-In Circuit Breaker, 10kA AIC, Thermal Magnetic

UBIA20NI

UBIA20NI is a 20 amp, 120 volt, 1-pole plug-in circuit breaker from Connecticut Electric designed for Wadsworth load centers. It features a thermal magnetic trip unit and a 10,000 AIC rating for reliable protection.This breaker is ETL listed and intended for use in typical residential and light commercial applications. It mounts via plug-in connection and provides standard trip interruption. The compact 1-inch width fits type A Wadsworth load centers.

Key Specifications
• Amperage: 20 Amps
• Voltage: 120 Volts
• Number of Poles: 1
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 AIC at 120V
• Trip Unit: Thermal Magnetic
• Series/Frame: UBIA (Type A, 1 inch wide)
• Certifications: ETL Listed
• Manufacturer Warranty: 10 Years
• Breaker Type: Standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: UBIA20NI
• Manufacturer : Connecticut Electric
• Brand : Connecticut Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : A Series
• Type : UBIA
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 100A/A
• Temp Rating : Minimum Operating Temp 0 Degrees F Max. Operating Temp.250 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 094925008111
• GTIN : 00094925008111
• Country of Origin : China
• Dimensions : 1 in x 3.76 in x 3.76 in
• Weight : 0.35
• Panel Type : Wadsworth Load Centers
• Standards : ETL Listed, UL Listed
• Certification : ETL Listed, UL Listed
