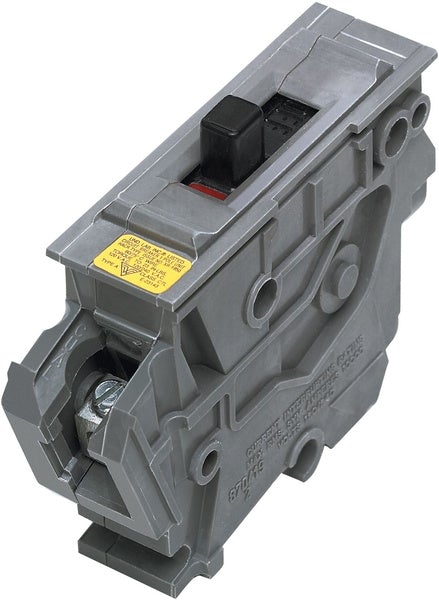

UBIA15NI - Connecticut Electric 15 Amp 1 Pole 120/240 Volt Plug-In Circuit Breaker Type A

UBIA15NI

UBIA15NI is a 15 Amp, 1 Pole, 120/240 Volt Plug-In circuit breaker from Connecticut Electric designed for Wadsworth load centers. It features a Type A trip unit and a 10,000 AIC interrupt rating.Technical Description: This molded case circuit breaker is part of the A Series family, compatible with Wadsworth load centers that accept 1 inch wide breakers. It is ETL listed to UL Standard 489 for both US and Canada, ensuring reliable performance and safety. The breaker uses a plug-in mounting type and is suitable for residential and commercial applications requiring a 15 Amp interrupting capacity.

Key Specifications
• Amperage: 15 Amp
• Voltage: 120/240 Volt AC
• Poles: 1 Pole
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 AIC
• Series/Frame: A Series
• Trip Unit: Type A
• Certifications: ETL Listed to UL 489 (US and Canada)
• Compatible with Wadsworth load centers
• Breaker Width: 1 inch

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: UBIA15NI
• Manufacturer : Connecticut Electric
• Brand : Connecticut Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : A Series
• Type : UBIA
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 100A/A
• Temp Rating : Minimum Operating Temp 0 Degrees F Max. Operating Temp.250 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 094925008111
• GTIN : 00094925008104
• Country of Origin : China
• Dimensions : 1 in x 3.76 in x 3.76 in
• Weight : 0.34 lb
• Panel Type : Wadsworth Load Centers
• Standards : ETL Listed, UL Listed
• Certification : ETL Listed, UL Listed
