Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TMQD22070

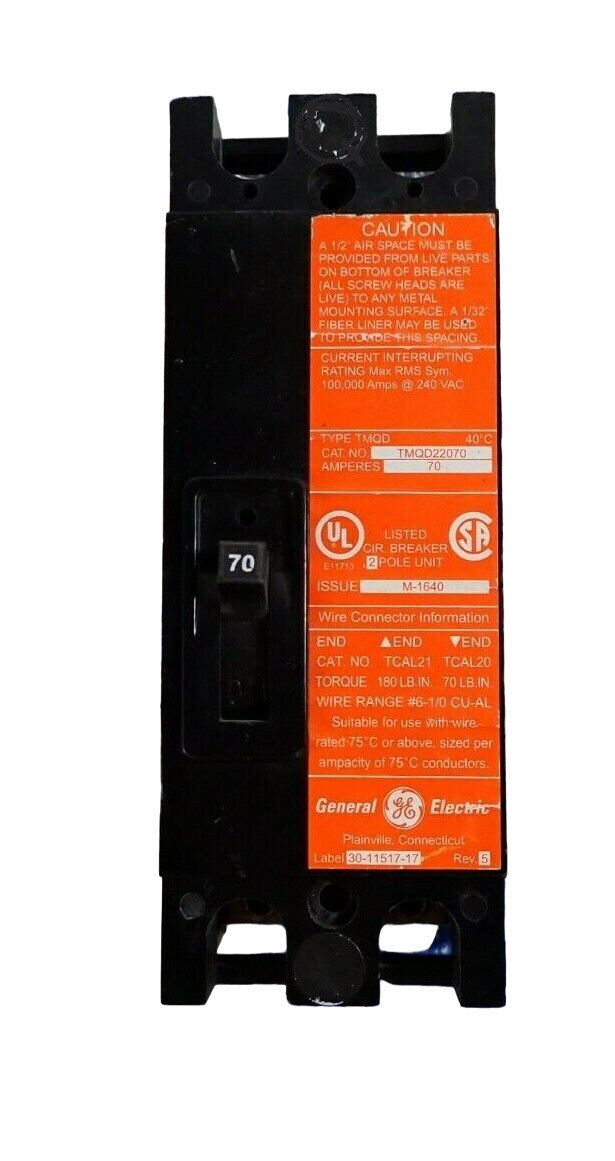

TMQD22070 is a General Electric 2 pole molded case circuit breaker rated for 70 amps and 240 volts AC with a TMQD frame.This circuit breaker features thermal magnetic protection with long-time and instantaneous trip functions, a 100kA interrupting rating at 240V, and bolt-on mounting. It is designed for single-phase applications and is part of the Meter Mod family, suitable as a tenant main breaker for 200A sockets with load side lug terminals.
- Manufacturer: General Electric
- Part Number: TMQD22070
- Amperage: 70 A
- Voltage Rating: 240 VAC
- Number of Poles: 2
- Frame Type: TMQD
- Interrupting Rating: 100 kA @ 240 V
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
- Mounting Type: Bolt-On
- Phase: Single Phase
- Application: Tenant Main Circuit Breaker for 200A Sockets
- Load Side Lug Terminals
Specifications
- Part Number: TMQD22070
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Meter Mod
- Type : TMQD
- Voltage : 240
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 100kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 051712145886
- GTIN : 00051712145886
- Weight : 2
