Product Info
- Manufacturer:Eaton
- Sub-Category:Bus Plug Fuse
Description
TL-20

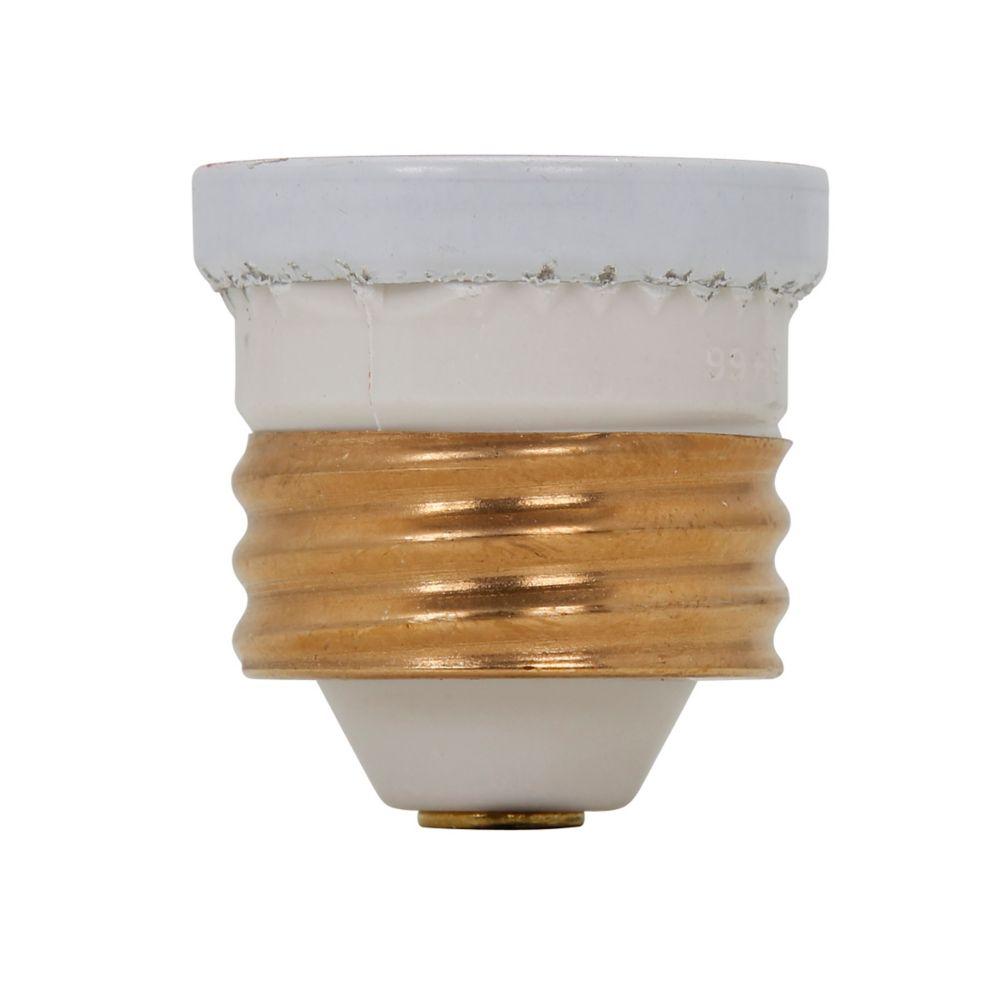

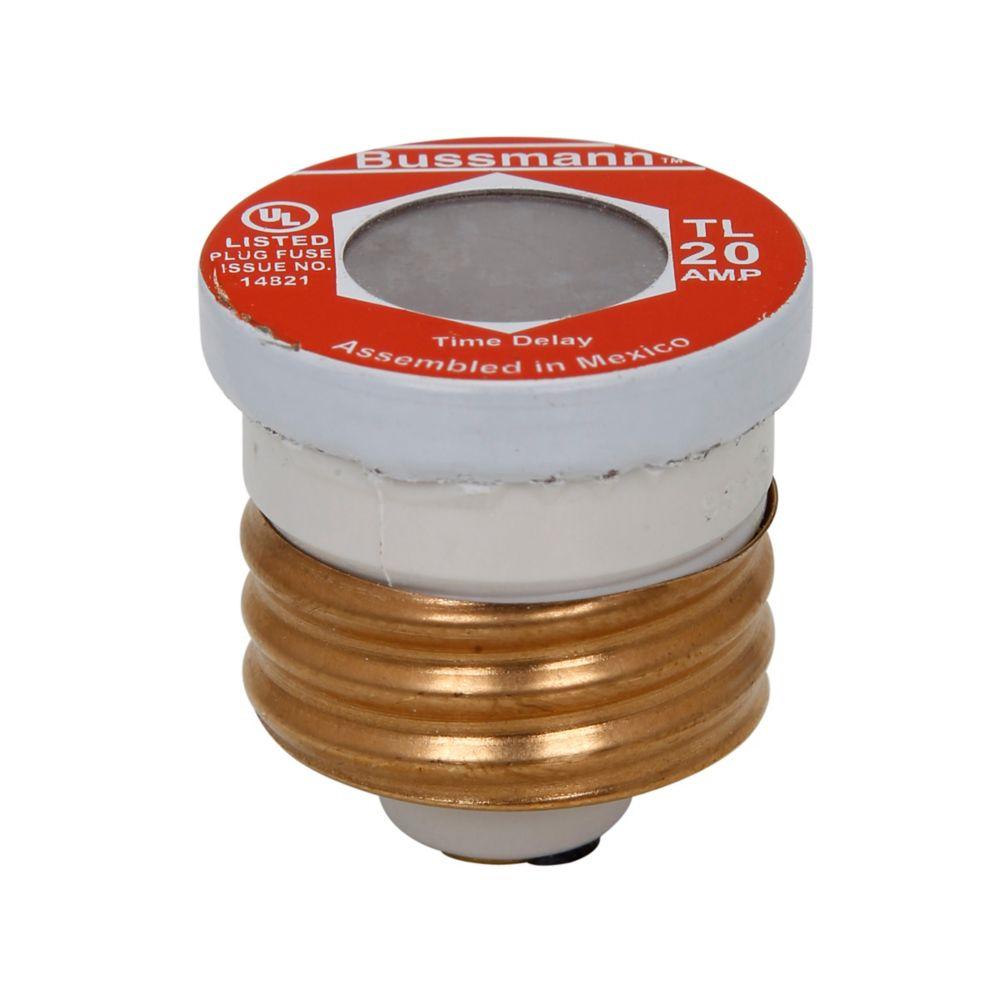

TL-20 is a Bussmann series Edison base plug fuse designed for residential and light-duty circuits with electric motors. This Eaton Bussmann TL-20 plug fuse features a time-delay design to withstand typical motor starting surges. It is rated for 20 amps and 125 volts AC, with a 10kA RMS symmetrical interrupting rating. The fuse has a threaded Edison base for secure mounting in fuse receptacles or box cover units, making it ideal for supplemental protection in small motor and high inductive load circuits.
- Part Number: TL-20
- Manufacturer: Eaton
- Series: Bussmann TL
- Amperage: 20 A
- Voltage: 125 VAC
- Interrupt Rating: 10 kA RMS Symmetrical
- Mounting Type: Edison Base
- Time Delay: Yes
- Application: Motor and inductive load circuits
- Agency Certifications: UL Listed, CE
- Package Type: Blister Pack
- Standards: UL 248-11
Specifications
- Part Number: TL-20
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Bus Plug
- Item Subcategory : Bus Plug Fuse
- Type : TL
- Voltage : 125
- Amperage : 20
- AIC rating : 10kA@125Vac
- Connection : Threaded
- Velocity : Loaded Link Time Delay
Product Data
- UPC : 051712101325
- GTIN : 00051712101325
- Country of Origin : Mexico
- Dimensions : 1.12 in x 1.2 in x 1.12 in (Length/Depth x Height x Width)
- Weight : 0.4
- Certification : CE, UL 248-11 Guide JEFV, File E12112
