2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:General Electric
- Sub-Category:Trip Units & Programmers
Description

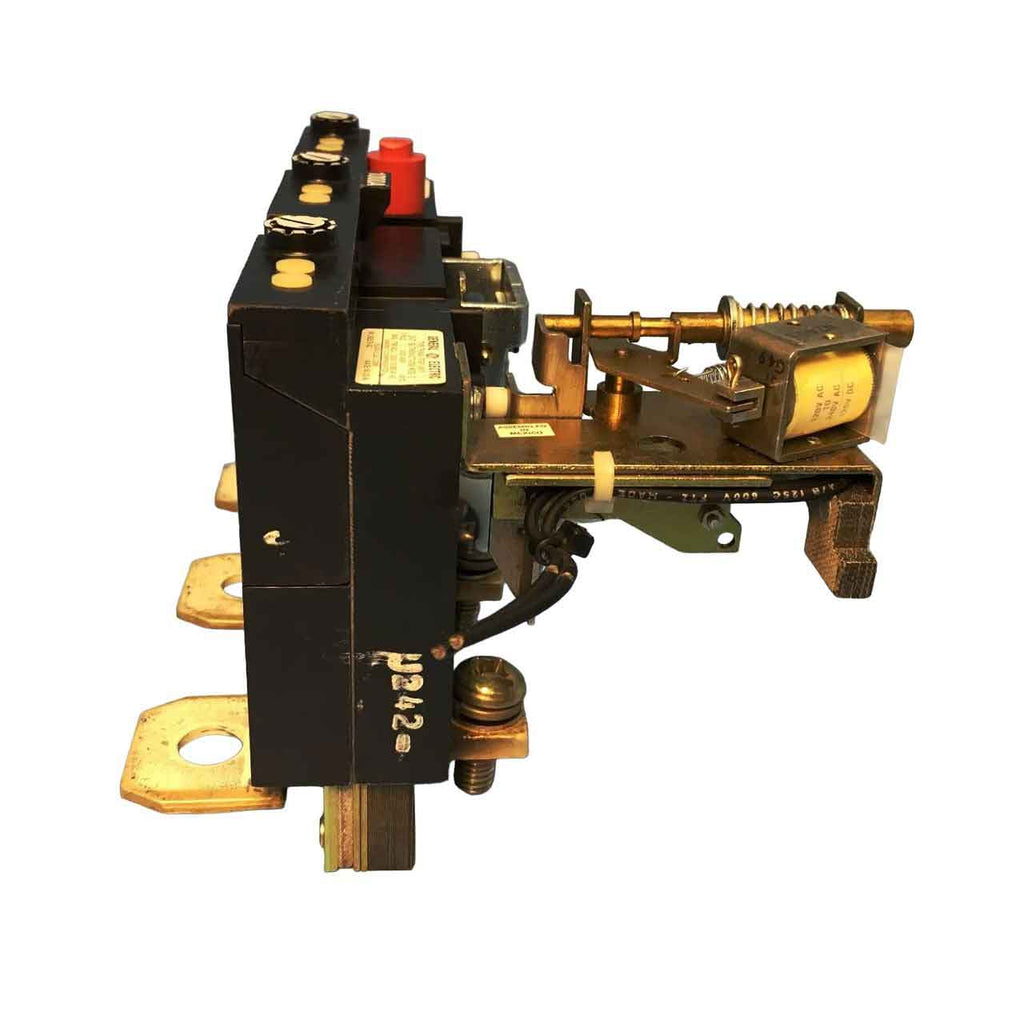

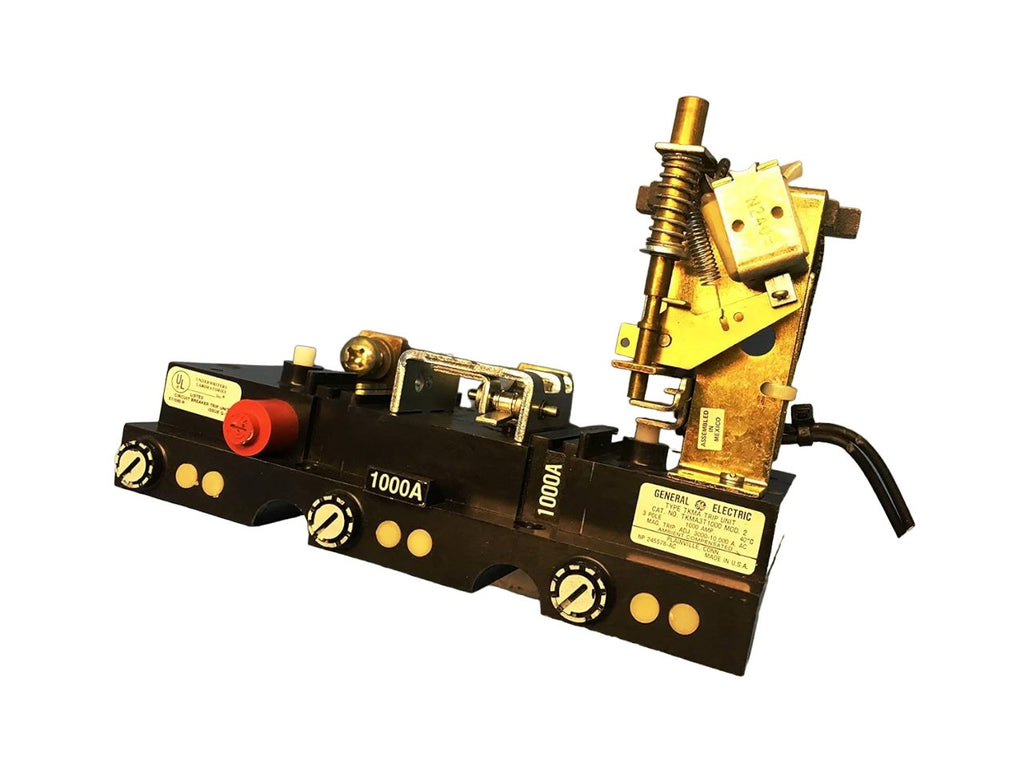

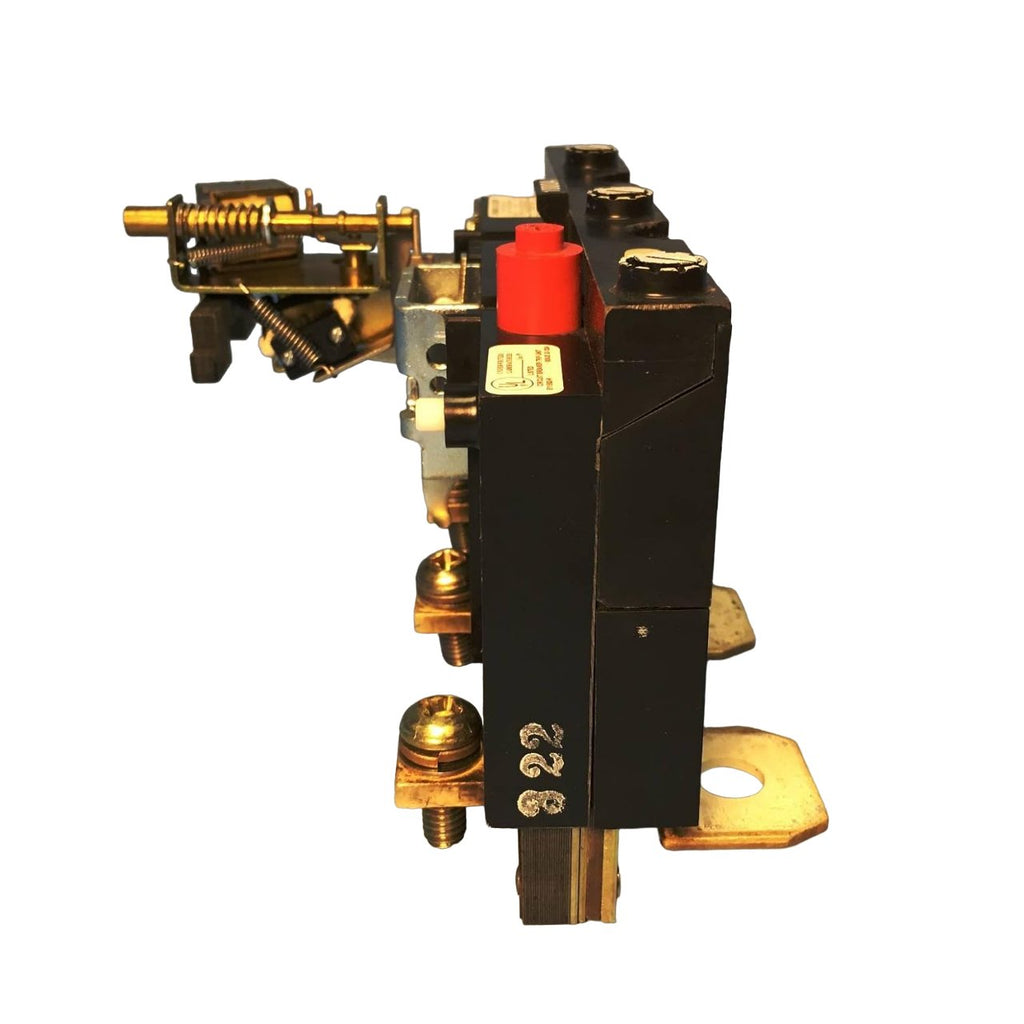

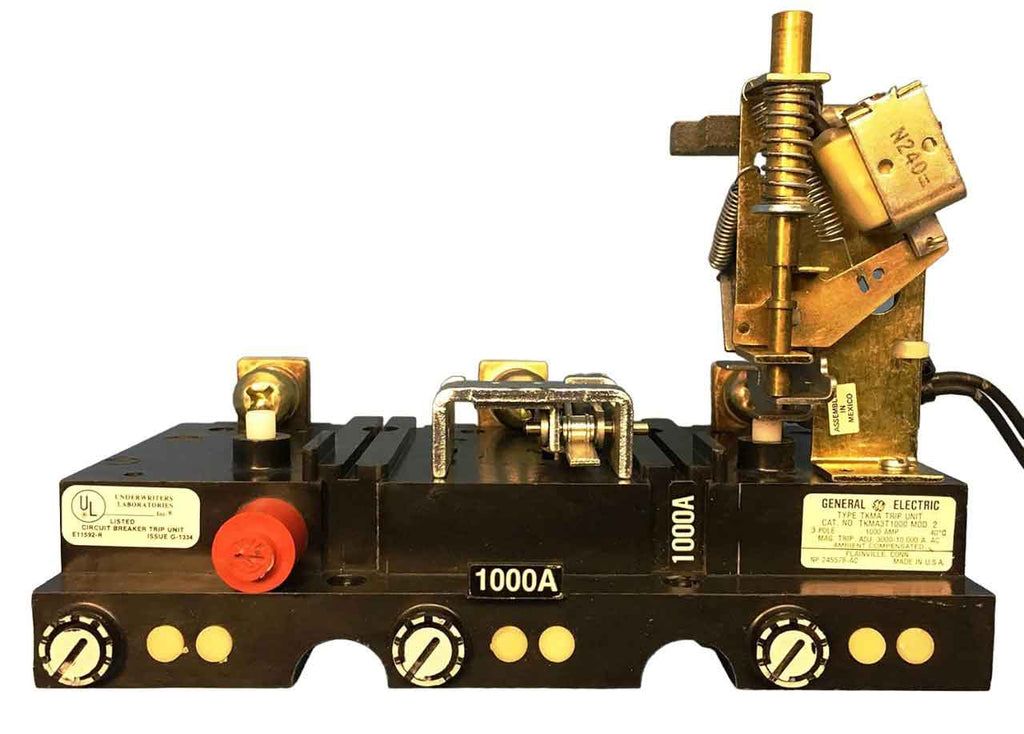

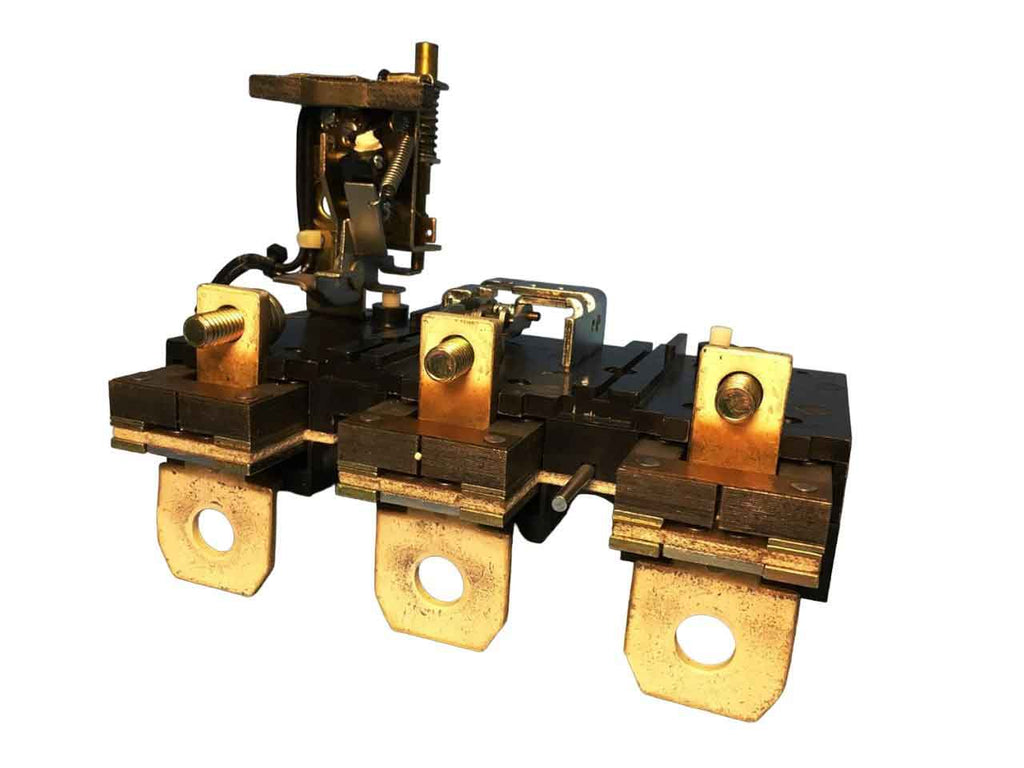

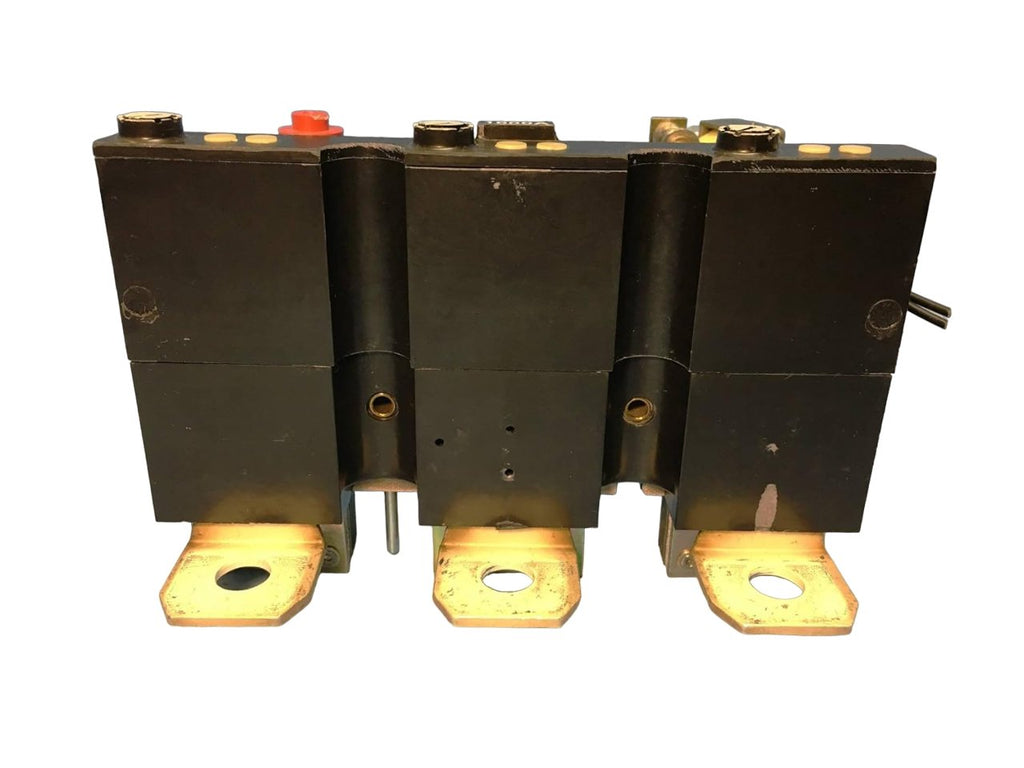

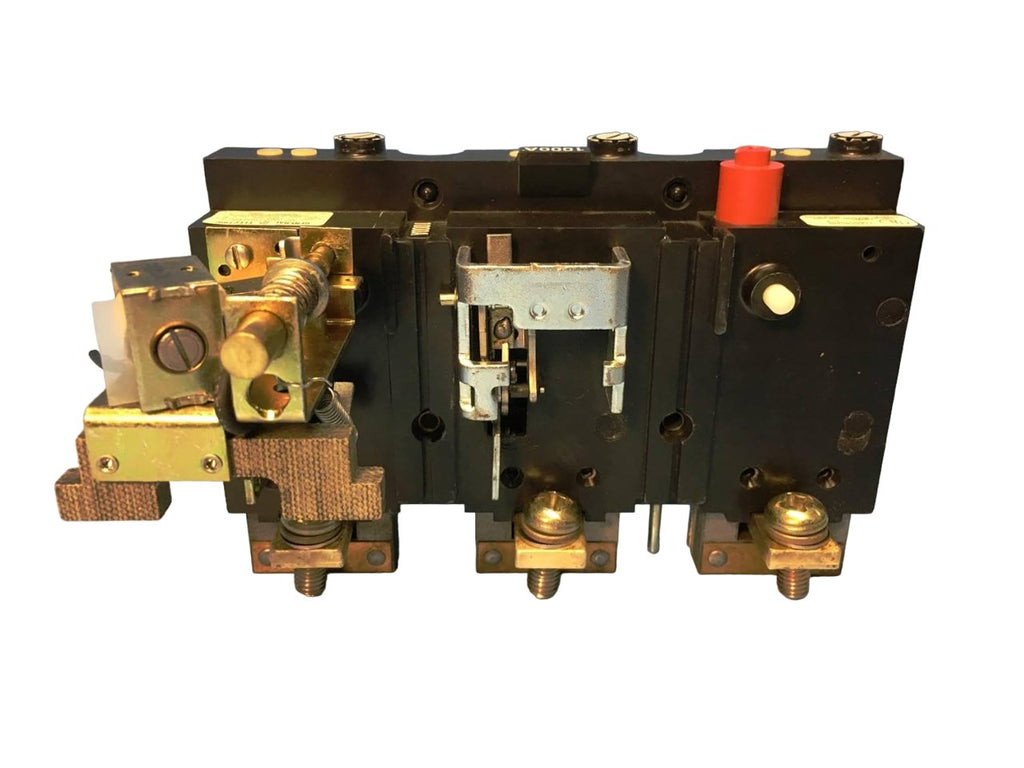

TKMA3T1000
TKMA3T1000 is a three-pole, 1000 Amp thermal-magnetic trip unit designed for use with General Electric TKMA and THKMA molded case circuit breaker frames. This interchangeable trip unit provides reliable overcurrent protection with both long-time and instantaneous trip functions for industrial and commercial power distribution applications. The unit features UL approval and instantaneous adjustment capability for precise protection coordination. Key Specifications
- Part Number: TKMA3T1000
- Manufacturer: General Electric
- Amperage: 1000A
- Voltage: 600V AC
- Number of Poles: 3
- Frame Type: TKM-Trip Unit
- Trip Type: Thermal-Magnetic
- Functions: Long-Time and Instantaneous
- Certification: UL Approved
- Interchangeable Design
Specifications
- Part Number: TKMA3T1000
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : K1200 Line
- Type : TKMA
- Voltage : 600VAC
- Amperage : 1000
- Poles : 3
- Functions : LI - Long Time and Instantaneous Trip
- Frame Size : 1000
- Amperage Maximum : 1000
- Amperage Minimum : 1000
- Protection : Thermal Magnetic
- Compatible Frames : TKM
Product Data
- UPC : 783164053067
- Weight : 6 lb
- Certification : UL
