Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TJD422400WL

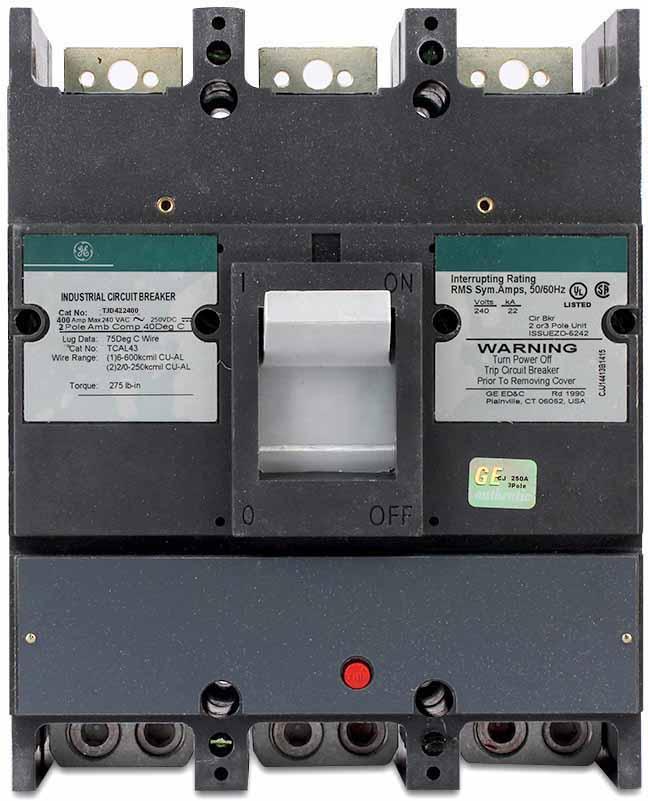

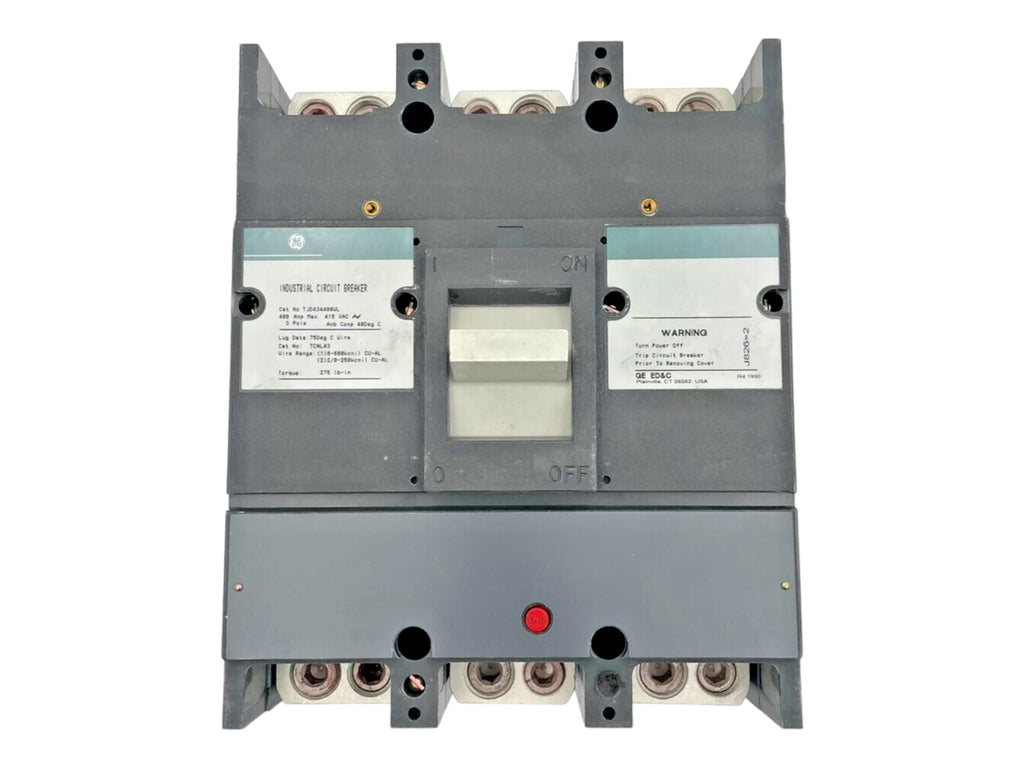

TJD422400WL is a General Electric Type TJD thermal magnetic molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 2 pole, 400 amp breaker operates at 240V AC and features a non-interchangeable trip unit with line and load side lug terminals for secure connections. It is part of the Q-Line family and is suitable for feed-thru applications. The TJD422400WL is engineered for standard interrupting capacity and is rated for 22kA at 240V AC. It supports copper and aluminum conductors and is suitable for reverse feed installations. The breaker is built for durability and safety in demanding environments.
- Part Number: TJD422400WL
- Manufacturer: General Electric
- Series/Frame: Type TJD
- Amperage: 400 A
- Voltage: 240 VAC
- Poles: 2
- Interrupt Rating: 22 kAIC @ 240V
- Mounting Type: Feed-Thru
- Terminal Type: Line and Load Side Lugs
- Trip Unit: Non-Interchangeable
- Trip Style: Thermal Magnetic
- UL File #: E11592
Specifications
- Part Number: TJD422400WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TJD
- Voltage : 240
- Amperage : 400
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164049213
- GTIN : 00783164049213
- Weight : 16
- Certification : Ul Listed
