Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TJC36400F

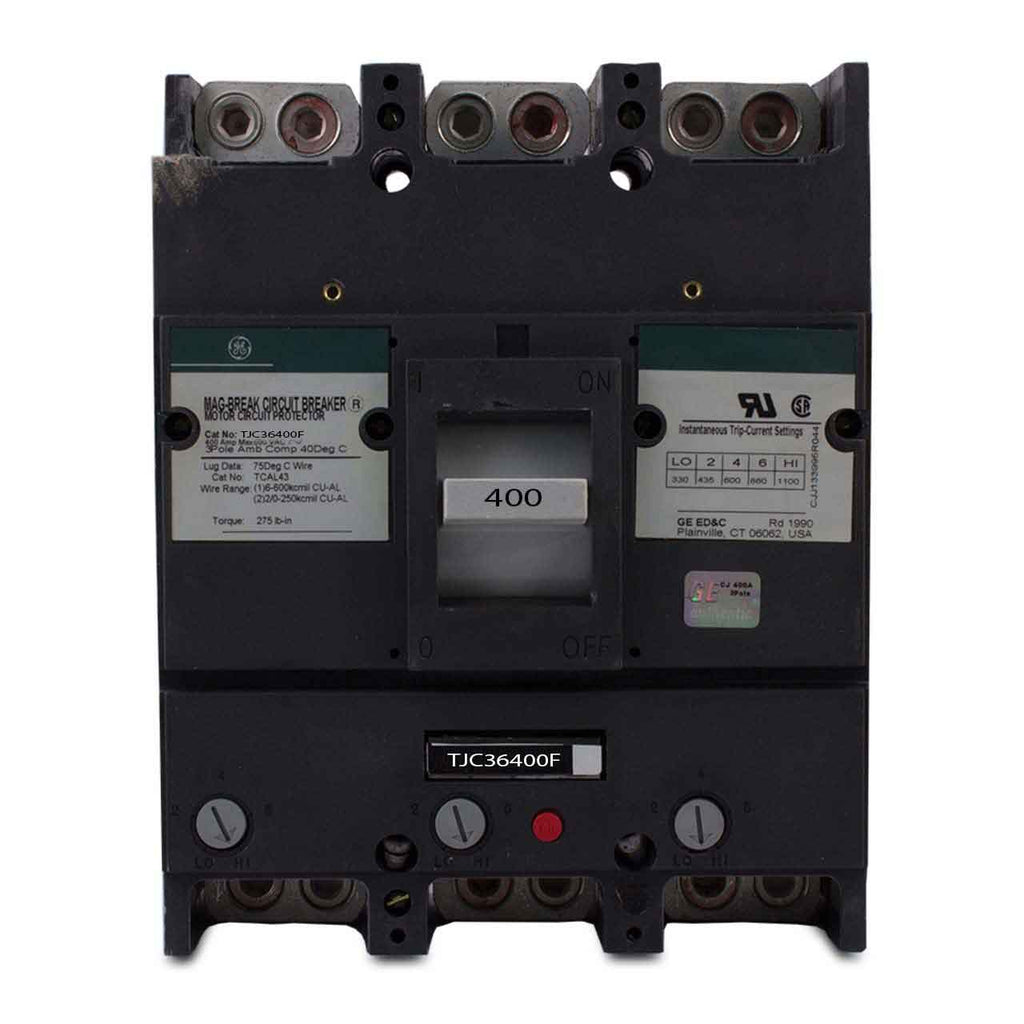

TJC36400F is a General Electric 400 amp, 600 volt, 3 pole feed-thru circuit breaker from the Mag-Break family designed for reliable motor circuit protection.This molded case circuit breaker features a thermal magnetic trip unit with instantaneous trip functions and a magnetic range of 550-1670 amps. It has a 30kA interrupt rating at 480V, suitable for 3-phase AC systems, and includes line and load side lug terminals. The breaker is built on the TJC frame and is designed for industrial and commercial applications requiring robust circuit protection.
- Amperage: 400 A
- Voltage: 600 V AC
- Poles: 3
- Frame Type: TJC (Mag-Break)
- Trip Unit: Thermal Magnetic, Magnetic Only
- Interrupt Rating: 30kA at 480 V
- Mounting Type: Feed-Thru
- Magnetic Range: 550-1670 A
- Line & Load Side Lug Terminals
- 3 Phase Circuit Breaker
- Certifications: NETA Testing Available
Specifications
- Part Number: TJC36400F
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Mag-Break
- Type : TJC
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : I - Instantaneous
- Protection : Magnetic Only
Product Data
- UPC : 783164135558
- GTIN : 00783164135558
- Weight : 21
