Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQL22050

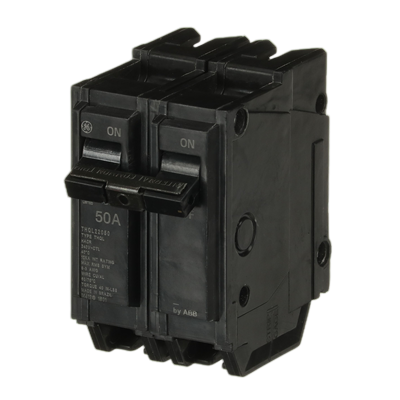

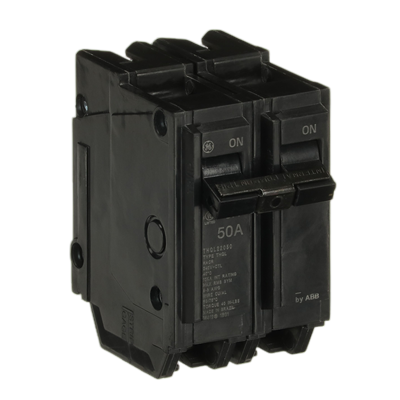

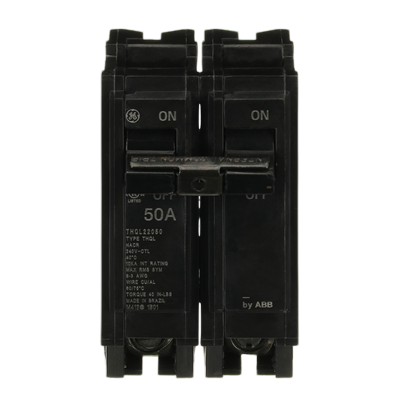

THQL22050 is a General Electric 2-pole circuit breaker rated for 50 amps and 240 volts AC, designed for plug-in mounting with a 10,000 amp interrupt rating.This thermal magnetic molded case circuit breaker features a 2-pole configuration suitable for 240 VAC applications. It supports wire sizes from 8 to 3 AWG copper or aluminum and includes box terminals for secure connections. The breaker is non-interchangeable and designed for use in Q-Line panels with a plug-in mounting type. It provides reliable overcurrent protection with a 10 kA interrupting capacity and meets UL certification standards.
- Key Specifications
- Amperage: 50 A
- Voltage: 240 VAC
- Poles: 2
- Interrupt Rating: 10,000 A (10 kA)
- Mounting Type: Plug-In
- Wire Range: 8 to 3 AWG Copper/Aluminum
- Trip Unit: Thermal Magnetic
- Frame/Series: THQL (Q-Line)
- Terminal Type: Box Terminal
- Non-Interchangeable
- Certifications: UL Listed
Specifications
- Part Number: THQL22050
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 240
- Amperage : 50
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164012996
- GTIN : 00783164000000
- Weight : 0.75
