Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQL22015

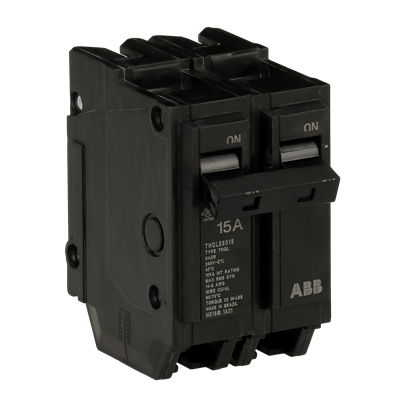

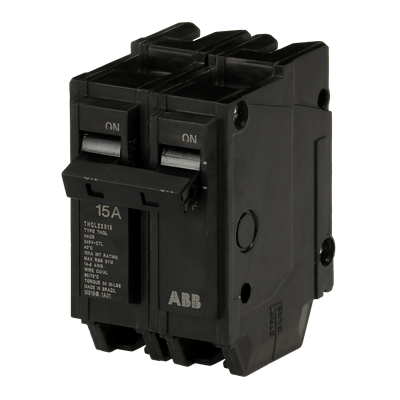

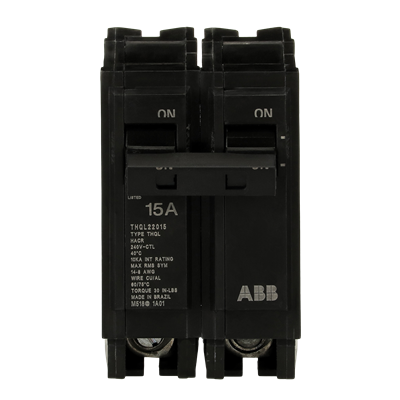

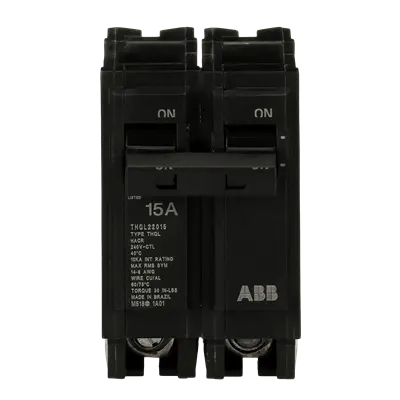

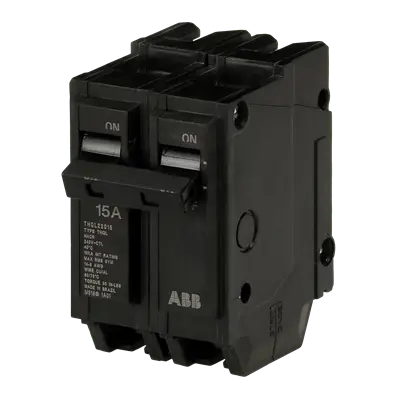

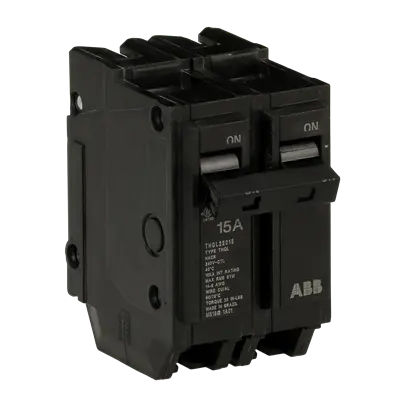

THQL22015 is a General Electric Q-Line 2-pole miniature circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This compact molded case circuit breaker features a 15A current rating, 240V AC voltage rating, and a 10kA interrupting capacity. It is built for plug-in mounting and is suitable for use in Q-Line load centers. The breaker uses a thermal magnetic trip unit and is non-interchangeable for added safety. It is HACR rated and meets relevant industry standards for performance and reliability.
- Part Number: THQL22015
- Manufacturer: General Electric
- Series/Frame: Q-Line
- Number of Poles: 2
- Amperage: 15A
- Voltage Rating: 120/240V AC
- Interrupt Rating: 10kAIC
- Mounting Type: Plug-In
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Load Rating: HACR
- Certifications: UL Listed, CSA Certified
- Application: Commercial, Industrial
Specifications
- Part Number: THQL22015
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQL
- Voltage : 240
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164012958
- GTIN : 00783164000000
- Weight : 1
