Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQL1130GFEP

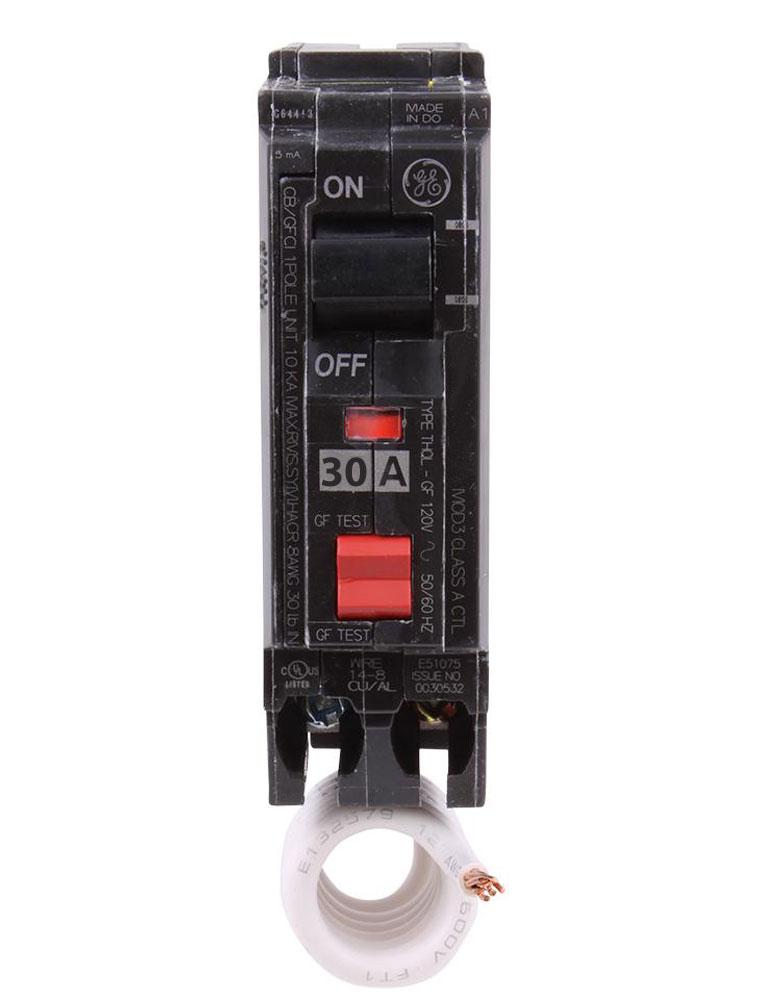

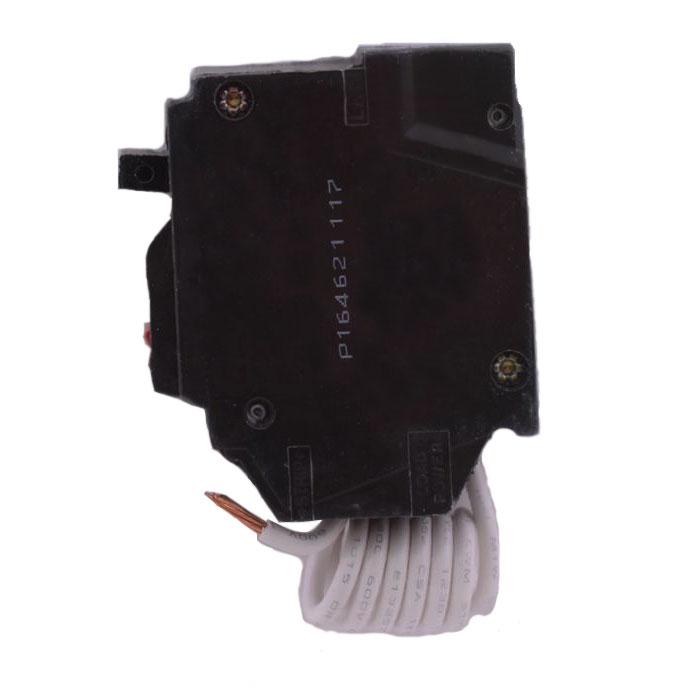

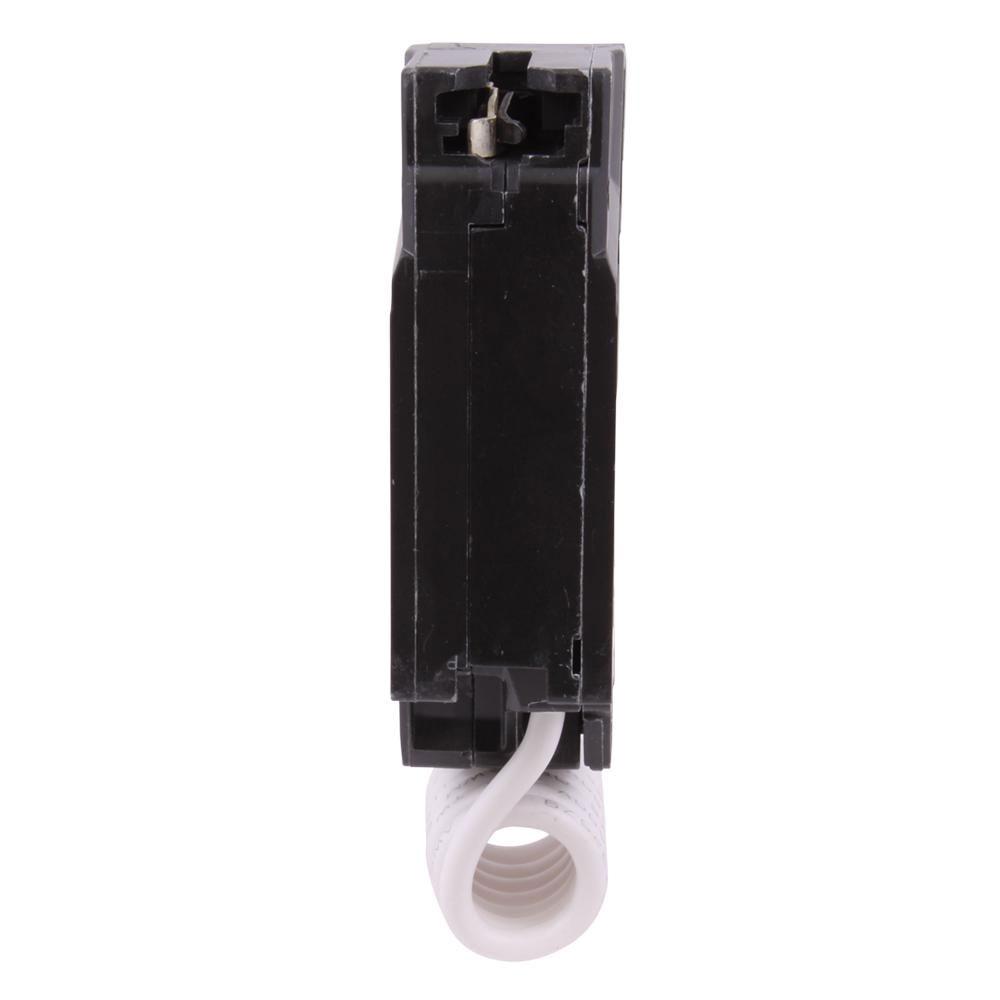

THQL1130GFEP is a 30 amp, 120 volt, 1-pole circuit breaker from General Electric designed for ground fault equipment protection.This THQL frame breaker features a plug-in mounting type with a 10,000 A interrupting rating at 120 VAC. It includes ground fault protection with a 30 mA trip sensitivity and combines long time and instantaneous trip functions for reliable circuit interruption. The breaker is UL listed and CSA approved, ensuring compliance with safety standards.
- Manufacturer: General Electric
- Part Number: THQL1130GFEP
- Amperage: 30A
- Voltage: 120 VAC
- Poles: 1
- Mounting Type: Plug-In
- Interrupt Rating: 10,000 AIC @ 120V
- Trip Unit: Ground Fault 30 mA sensitivity
- Frame Type: THQL
- Certifications: UL Listed, CSA Approved
- Dimensions: Approx. 3" x 1" x 3"
Specifications
- Part Number: THQL1130GFEP
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQL
- Voltage : 120
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783164321074
- GTIN : 00783164321074
- Weight : 5.06 lb
- Certification : UL
