Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQD32175X2

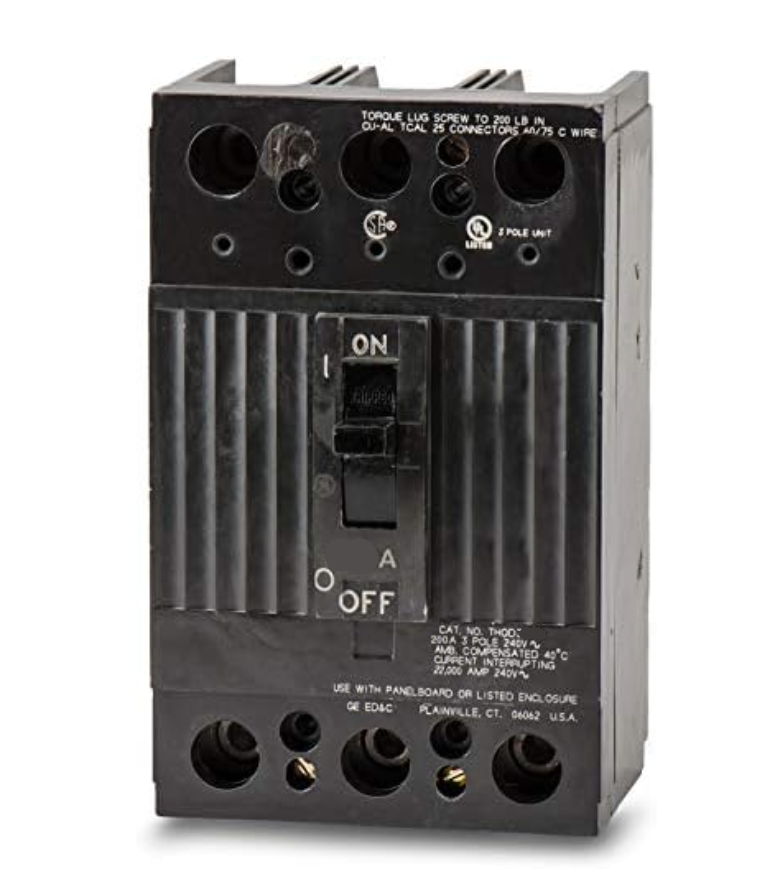

THQD32175X2 is a General Electric 3 pole molded case circuit breaker rated for 175 amps and 240 volts, designed for panelboard mounting.THQD32175X2 features a Q-Line frame and provides reliable circuit protection with a 22,000 AIC interrupt rating at 240V. It includes a non-interchangeable trip unit and line & load side lug terminals, suitable for use as a main breaker or sub-feed in commercial and industrial electrical systems.
- Key Specifications
- Amperage: 175A
- Voltage: 240V
- Poles: 3
- Interrupt Rating: 22kA at 240V
- Frame Type: Q-Line
- Mounting Type: Panelboard mount
- Trip Unit: Non-interchangeable
- Line & Load Side Lug Terminals
- UL Listed
Specifications
- Part Number: THQD32175X2
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQD
- Voltage : 240
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164190731
- GTIN : 00783164190731
- Weight : 3
