Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

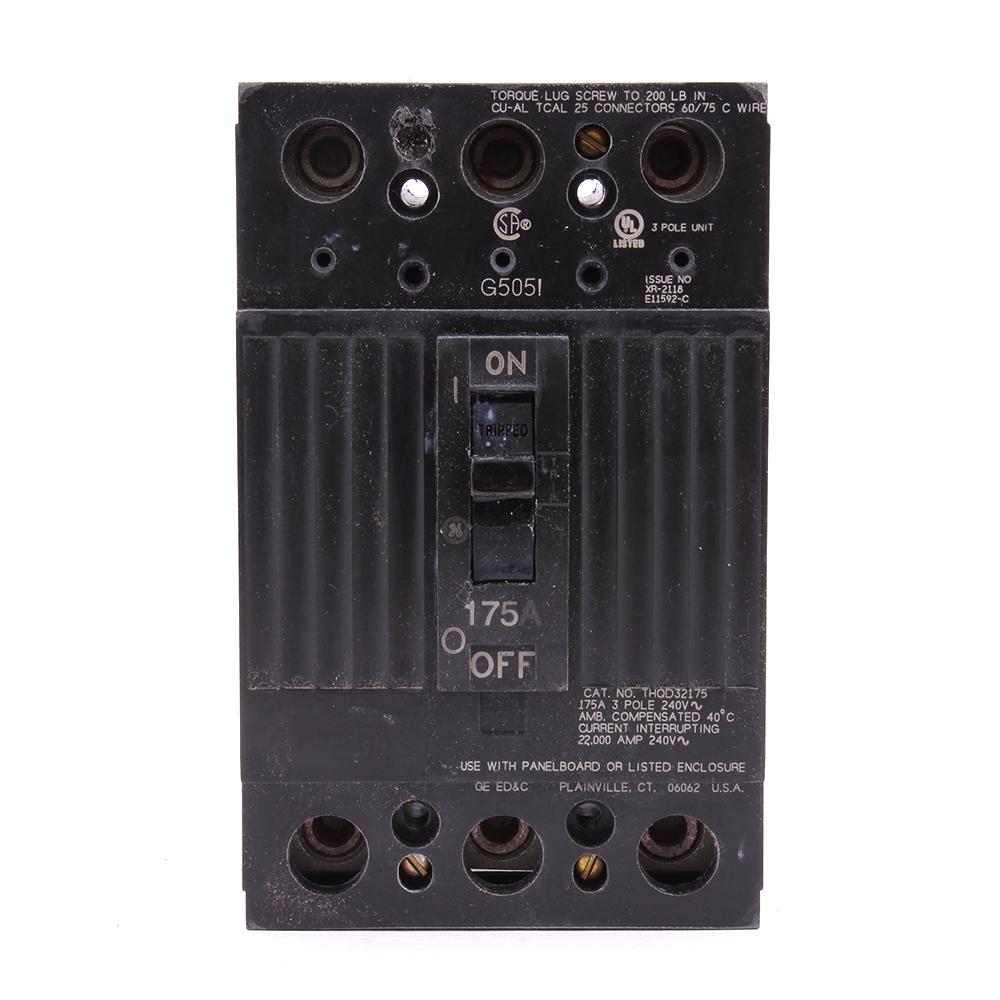

THQD32175WL
THQD32175WL is a General Electric 3-pole molded case circuit breaker designed for 175 amps and 240 volts in the Q-Line THQD series.This circuit breaker features a thermal magnetic trip unit with a 22kA interrupt rating at 240V, suitable for three-phase applications. It includes line and load side lug terminals and a feed-through mounting type. The breaker is non-interchangeable and meets UL 489 and ANSI C37 certifications.
- Amperage: 175A
- Voltage: 240VAC
- Poles: 3
- Series/Frame: Q-Line THQD
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Interrupt Rating: 22kA at 240V
- Mounting Type: Feed-Through
- Phase: 3-Phase
- Certifications: UL 489, ANSI C37
- Line & Load Side Lug Terminals
Specifications
- Part Number: THQD32175WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQD
- Voltage : 240
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164087970
- GTIN : 00783164087970
- Weight : 3 lb
- Certification : UL
- Wire Size : 14 to 10 AWG
