2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

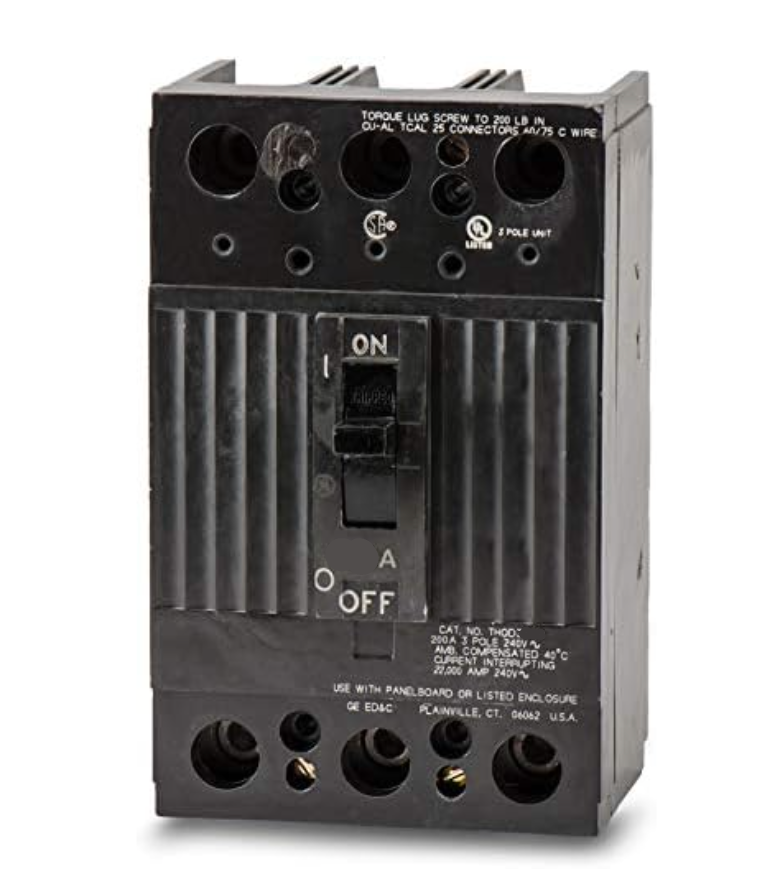

THQD32150X2
THQD32150X2 is a 3-pole, 240V AC molded case circuit breaker rated for 150 amperes with a 10 kA interrupt rating at 240V, manufactured by General Electric. General Electric TQD32150X2 features thermal magnetic trip protection and bolt-on mounting to Q-Line panelboards. This circuit breaker is designed for electrical distribution and control applications, including reverse feed applications, with line and load side lug terminals for cable connections. The unit measures 4-1/8 in W x 2-5/8 in D x 6-9/16 in H and includes a non-interchangeable trip unit.
- Amperage Rating: 150 A
- Voltage Rating: 240 V AC
- Number of Poles: 3
- Phase: 3 Phase
- Interrupt Rating: 10 kA at 240V
- Trip Type: Thermal Magnetic
- Frame: Q-Line
- Mounting Type: Bolt-On
- Connection Type: Line and Load Side Lug Terminals
- ARRA Compliant
- Buy American Act Compliant
- RoHS Compliant
Specifications
- Part Number: THQD32150X2
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQD
- Voltage : 240
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164190724
- GTIN : 00783164190724
- Weight : 3
