Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

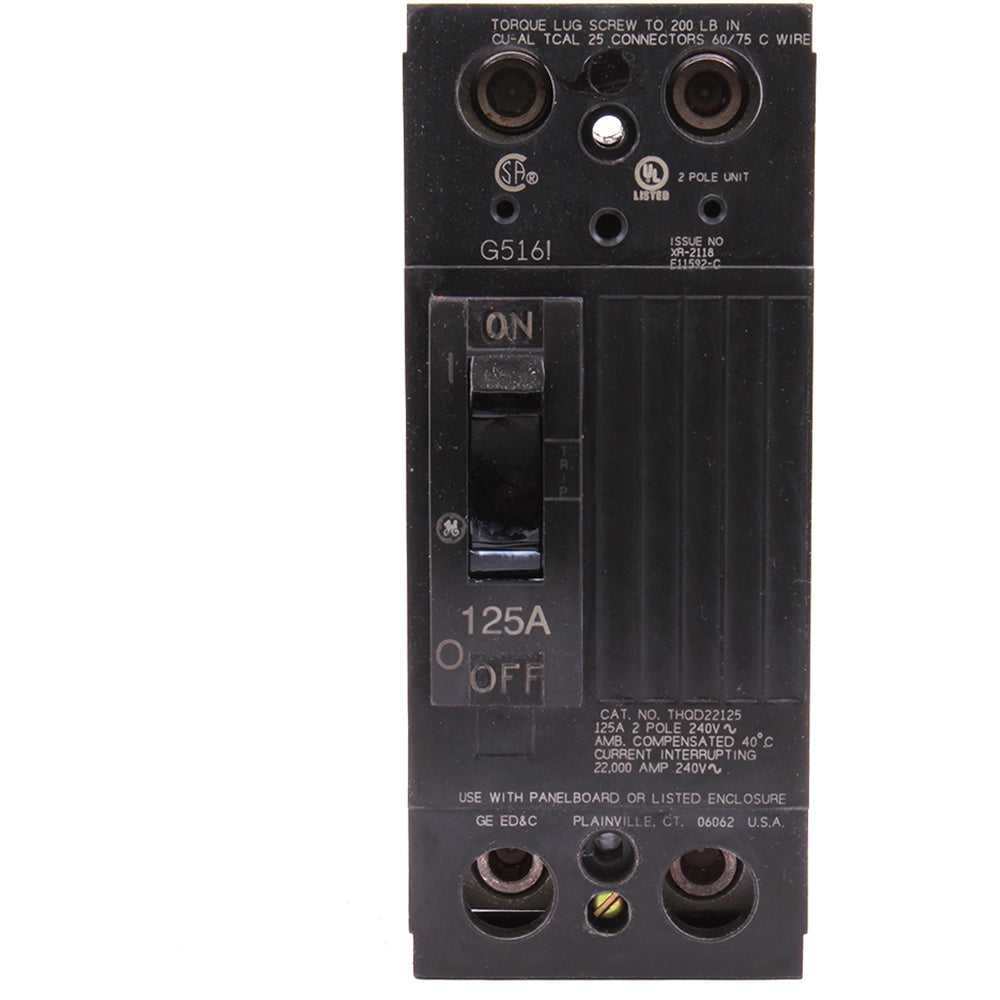

THQD22125WL
THQD22125WL is a General Electric 2 pole, 125 amp, 240 volt molded case circuit breaker from the Q-Line series designed for reliable electrical protection.This THQD22125WL circuit breaker features a feed-thru mounting type with fixed trip unit, suitable for single phase applications. It has a 10,000 A interrupt rating (AIC) and is UL listed, providing robust protection for commercial and industrial electrical systems. The breaker includes Cu/Al line and load lugs for versatile wiring.
- Amperage: 125 A
- Voltage Rating: 240 V
- Poles: 2
- Mounting Type: Feed-Thru
- Interrupt Rating (AIC): 10,000 A
- Series/Frame: Q-Line
- Trip Unit: Fixed
- Phase: Single
- UL Listed
- Cu/Al Line and Load Lugs
Specifications
- Part Number: THQD22125WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQD
- Voltage : 240
- Amperage : 125
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164087826
- GTIN : 00783164087826
- Weight : 2
- Certification : Ul Listed
