Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

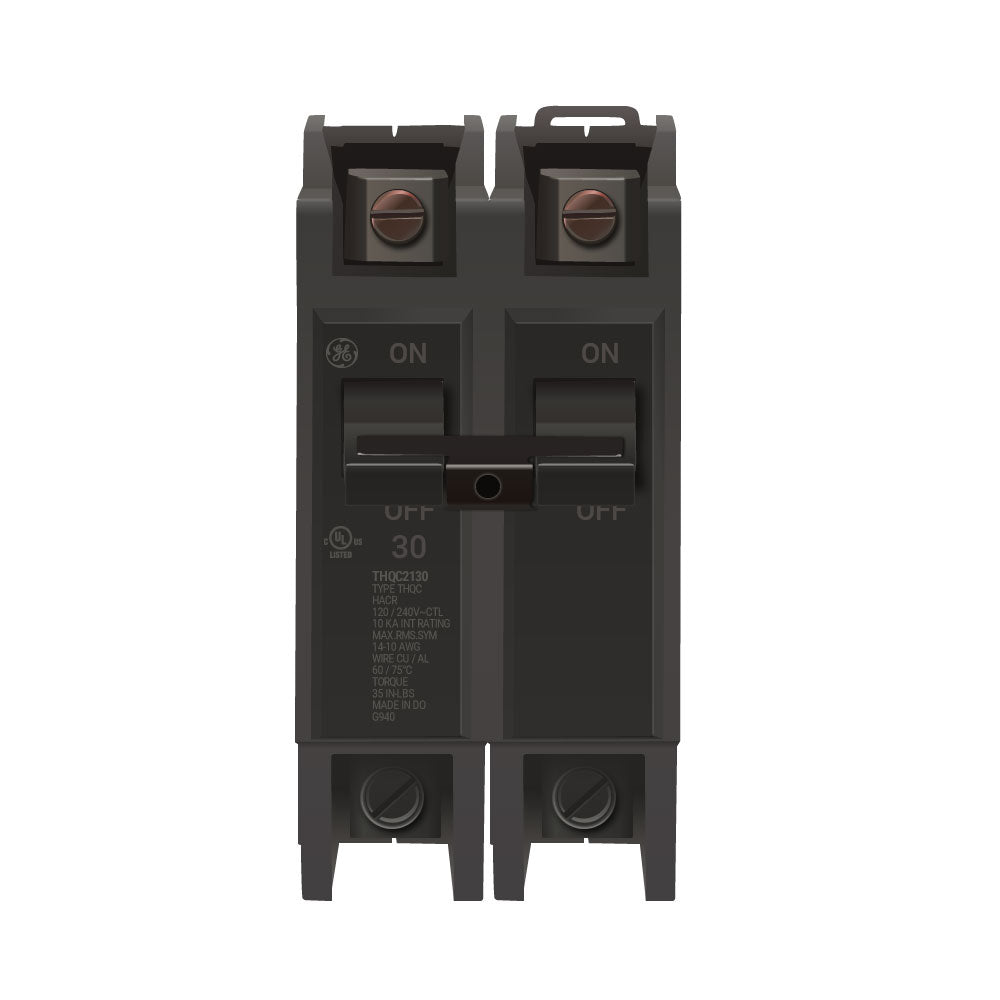

THQC2130
THQC2130 is a General Electric 2 Pole thermal magnetic circuit breaker rated for 30 Amps and 120/240 Volts AC.THQC2130 features a compact Q-Line frame with a 10 kA interrupt rating, designed for residential and commercial load center applications. It includes LI (Long-Time and Instantaneous) trip functions and is UL listed for safety and reliability.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 120/240 VAC
- Poles: 2
- Interrupt Rating: 10 kA at 240V
- Trip Unit: Thermal Magnetic with LI trip
- Mounting Type: Load Center / DIN Rail compatible
- Series/Frame: Q-Line Compact
- Certifications: UL Listed
- Terminal Type: Load lug terminals for copper and aluminum conductors
Specifications
- Part Number: THQC2130
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120/240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783164116618
- GTIN : 40783164116616
- Weight : 0.86
