Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

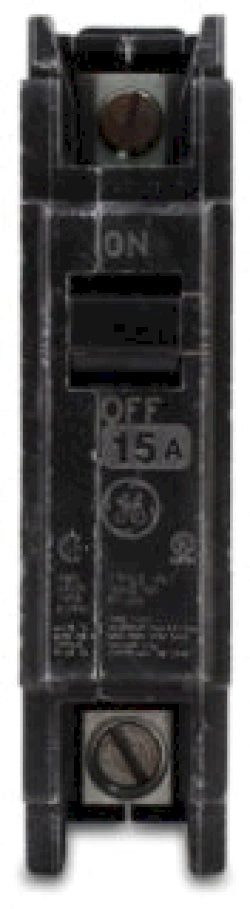

THQC1115WL
THQC1115WL is a 1 pole, 15 amp, 120/240 volt circuit breaker from General Electric's Q-Line series designed for residential and commercial applications.THQC1115WL features a thermal-magnetic trip unit with fixed long-time and instantaneous trip functions, a 10kA interrupting rating at 120/240V AC, and is UL listed under file E11592. It supports wire sizes from 14 to 8 AWG copper or aluminum and is suitable for reverse feed. The breaker has a lug-lug mounting style and is compatible with GE panelboards.
- Key Specifications
- Amperage: 15 A
- Voltage: 120/240 V AC
- Poles: 1
- Interrupt Rating: 10 kAIC at 120/240 V
- Series/Frame: Q-Line
- Trip Unit: Thermal-Magnetic, Fixed Long-Time and Instantaneous
- Mounting Type: Lug-Lug
- Wire Range: 14-8 AWG Cu/Al
- UL Listed: Yes, File E11592
- Suitable for Reverse Feed: Yes
- Special Markings: HACR
Specifications
- Part Number: THQC1115WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQC
- Voltage : 240
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783164012484
- GTIN : 00783164012484
- Weight : 0.4 lb
- Certification : UL Listed
