Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQB2190ST1

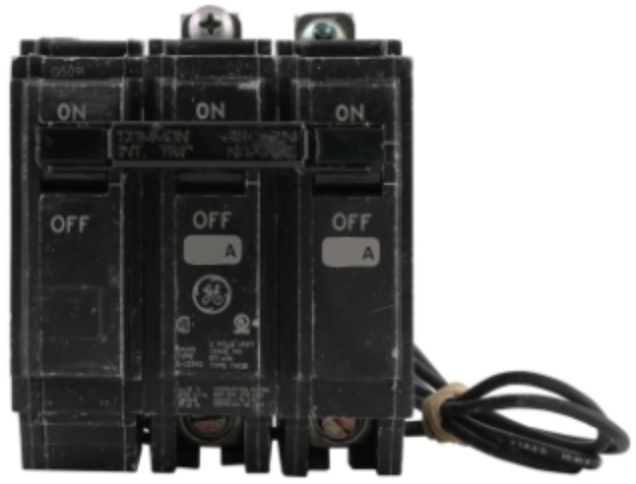

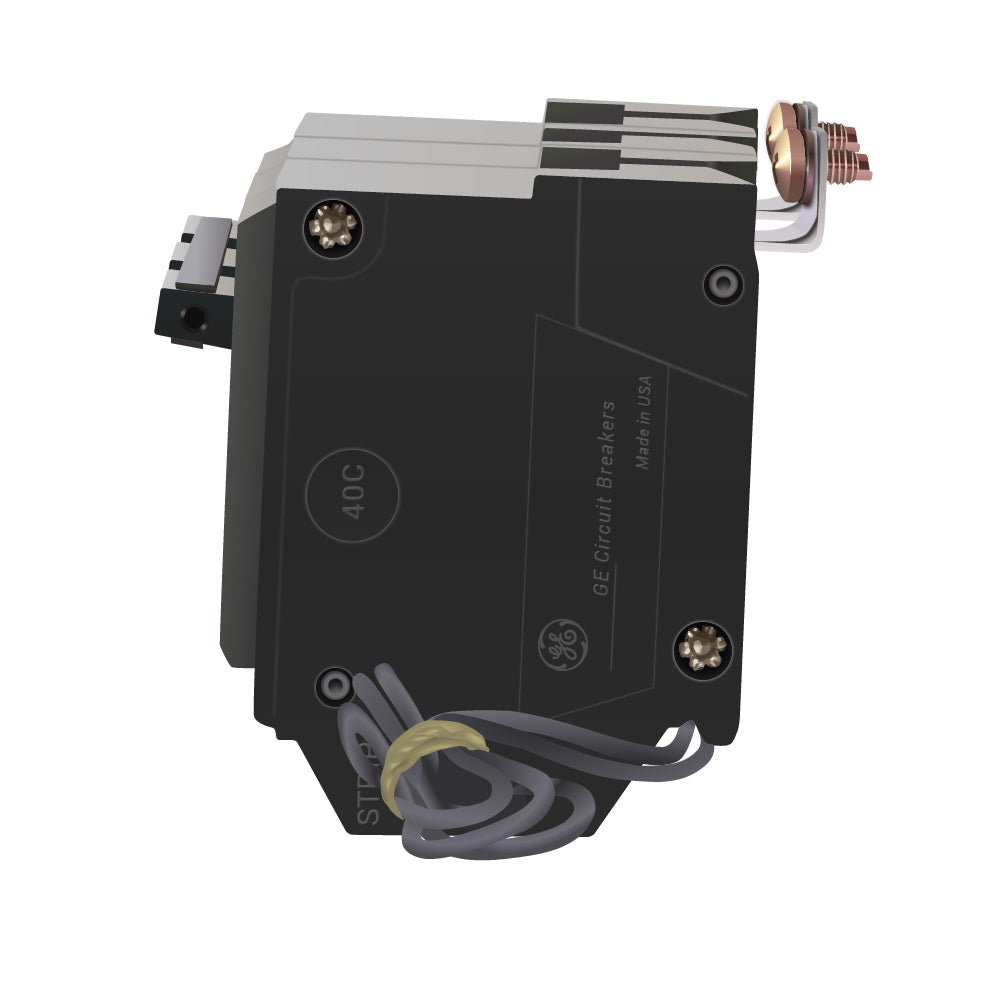

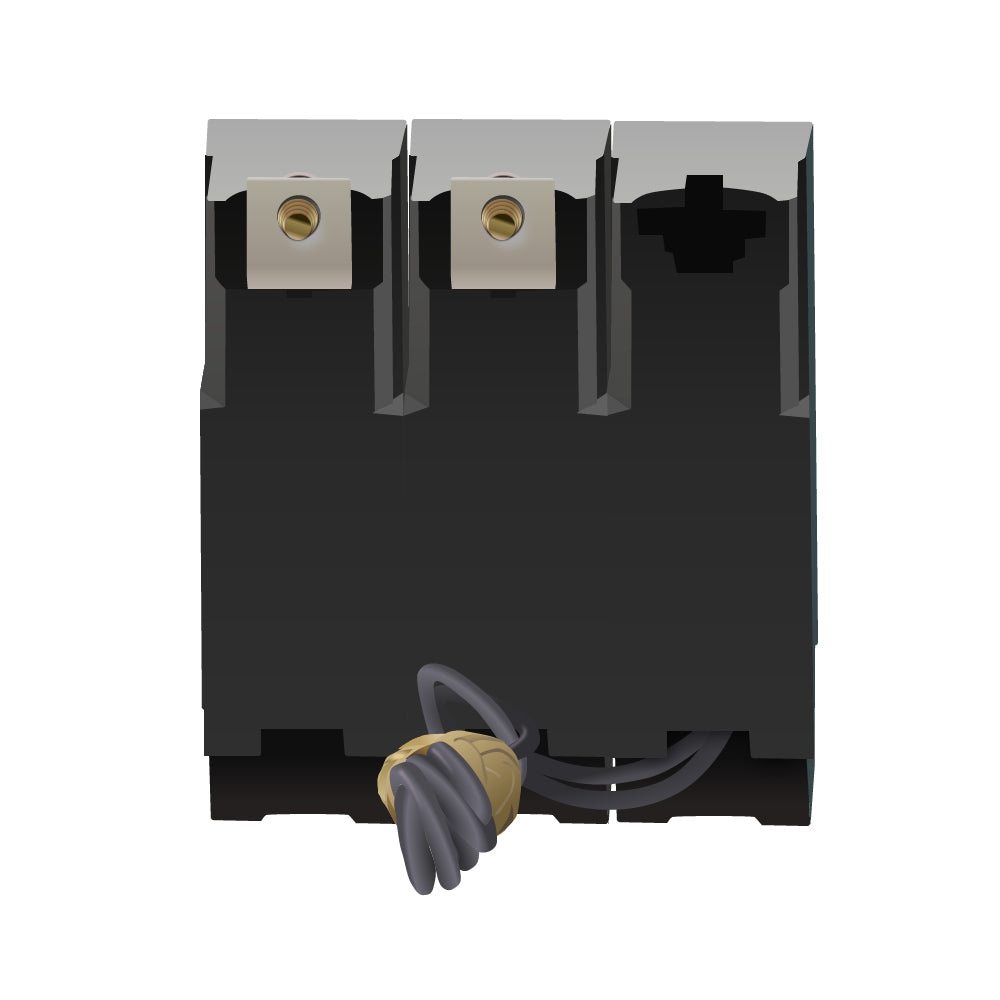

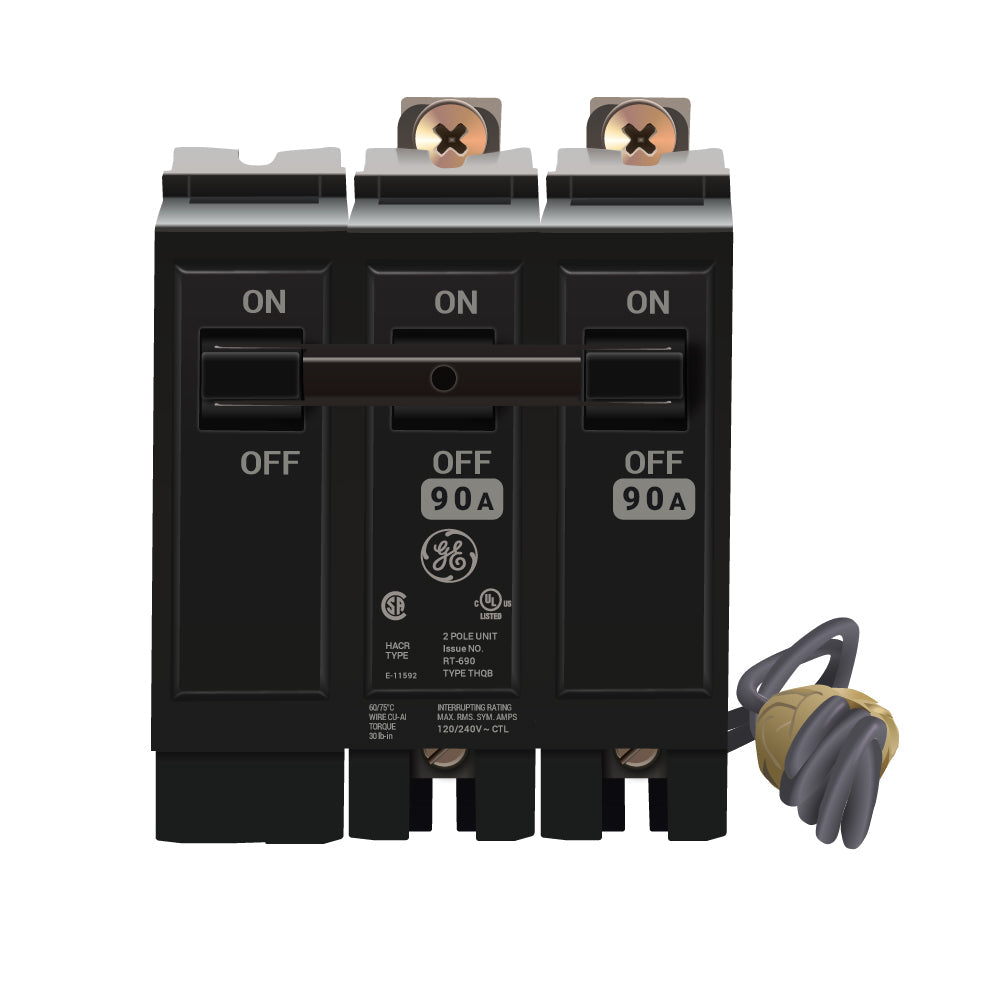

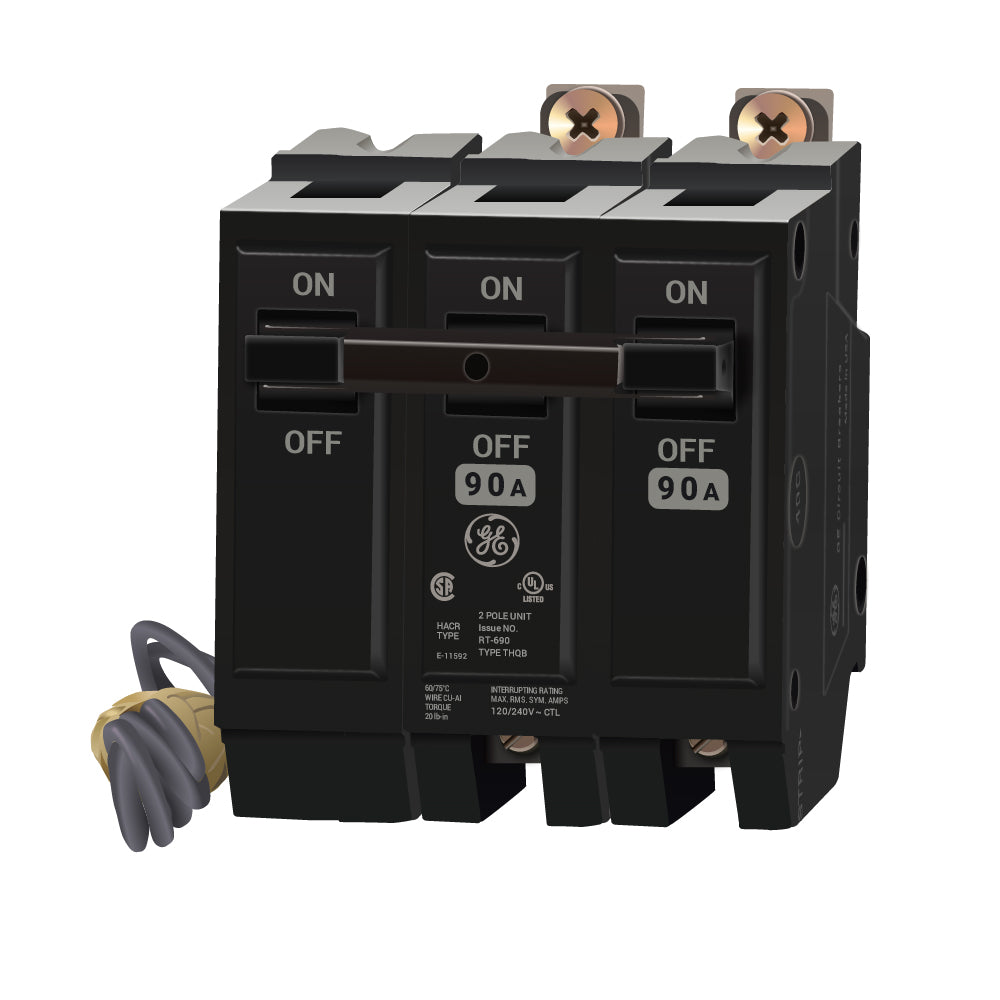

THQB2190ST1 is a General Electric 90 Amp 2 Pole 240 Volt bolt-on molded case circuit breaker designed for reliable circuit protection.This THQB series breaker features thermal magnetic trip technology with long time and instantaneous trip functions. It has a bolt-on mounting type and a 10kA interrupting rating at 240V, making it suitable for Q-Line panel applications. The breaker supports load side lug terminals and includes a 120V shunt trip option.
- Amperage: 90 Amps
- Voltage: 240 Volts AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA at 240V
- Series/Frame: THQB (Q-Line family)
- Trip Unit: Thermal Magnetic with long time and instantaneous trip
- Certifications: UL Listed
- Load Side Lug Terminals
- 120V Shunt Trip Available
Specifications
- Part Number: THQB2190ST1
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 240
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164044645
- Weight : 3
