Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQB2180

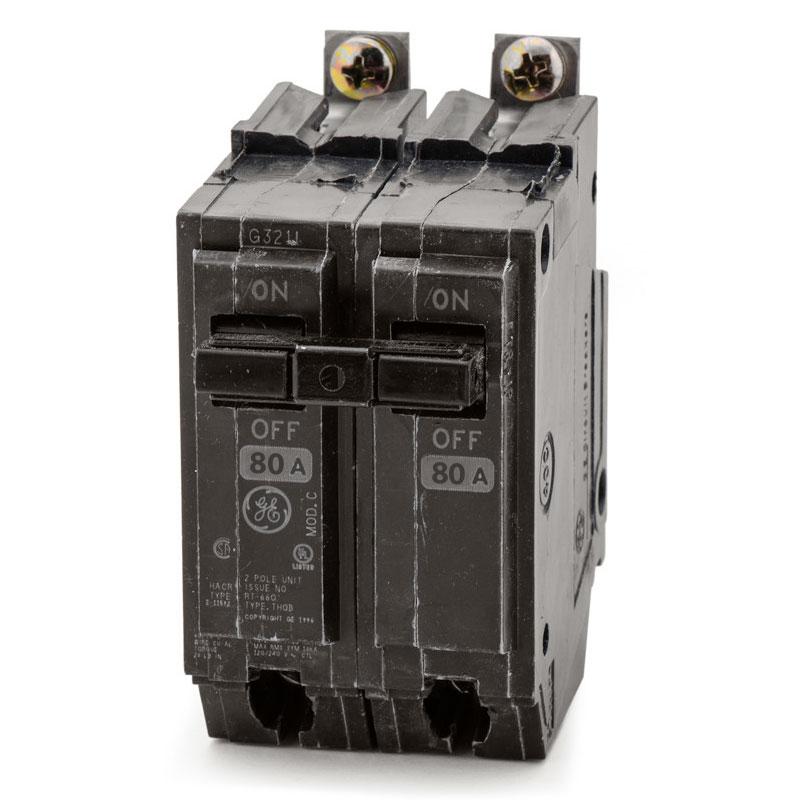

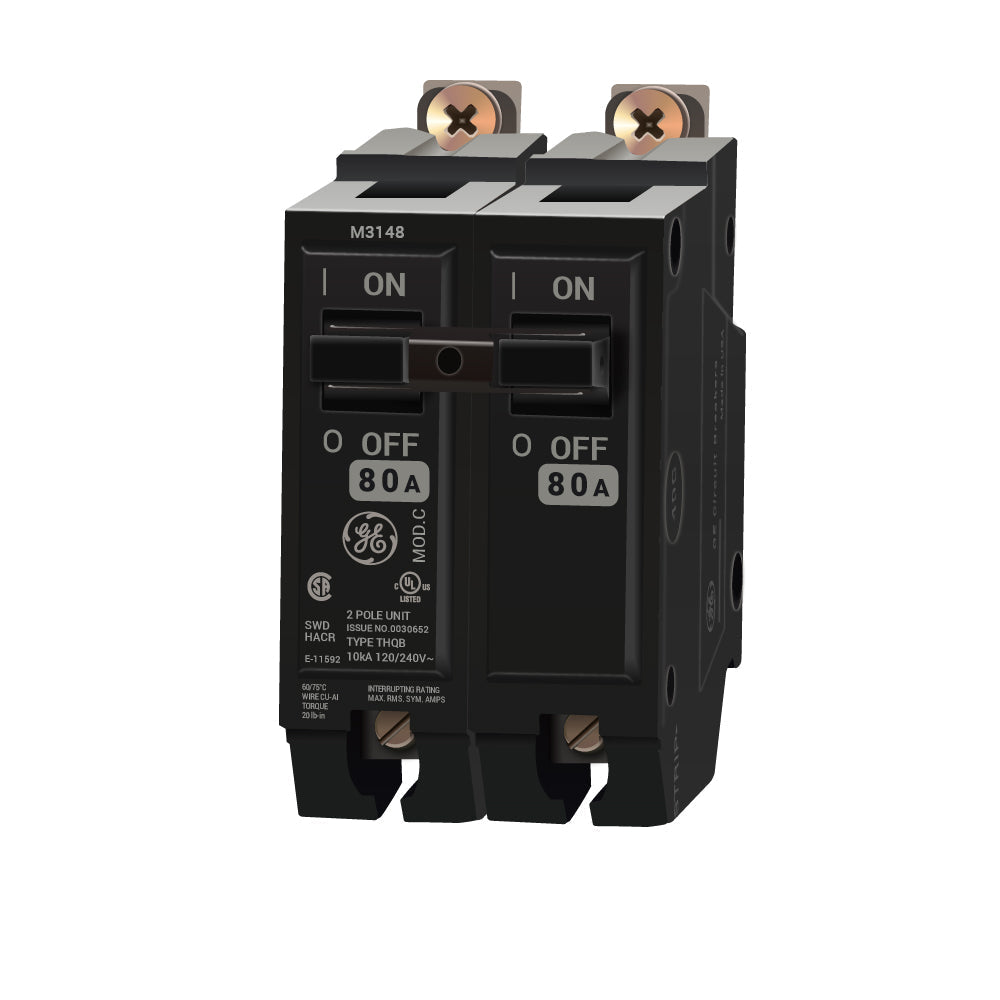

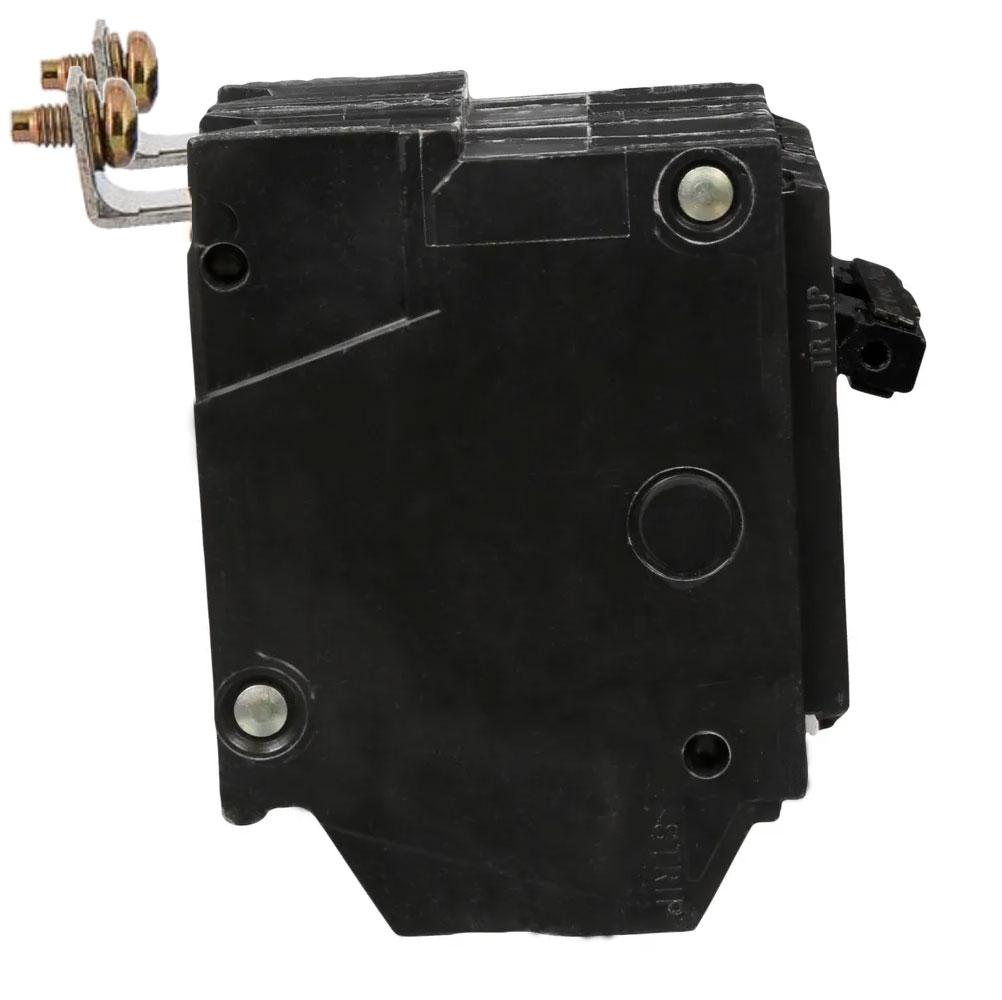

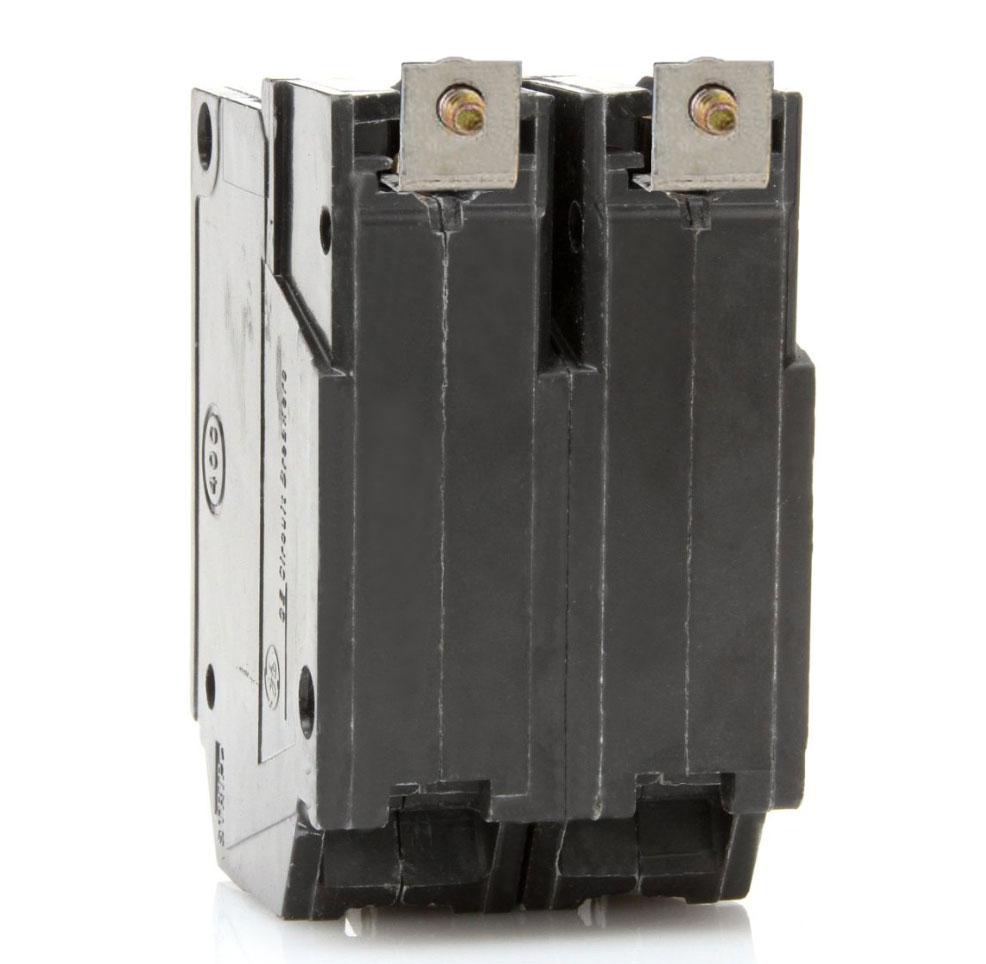

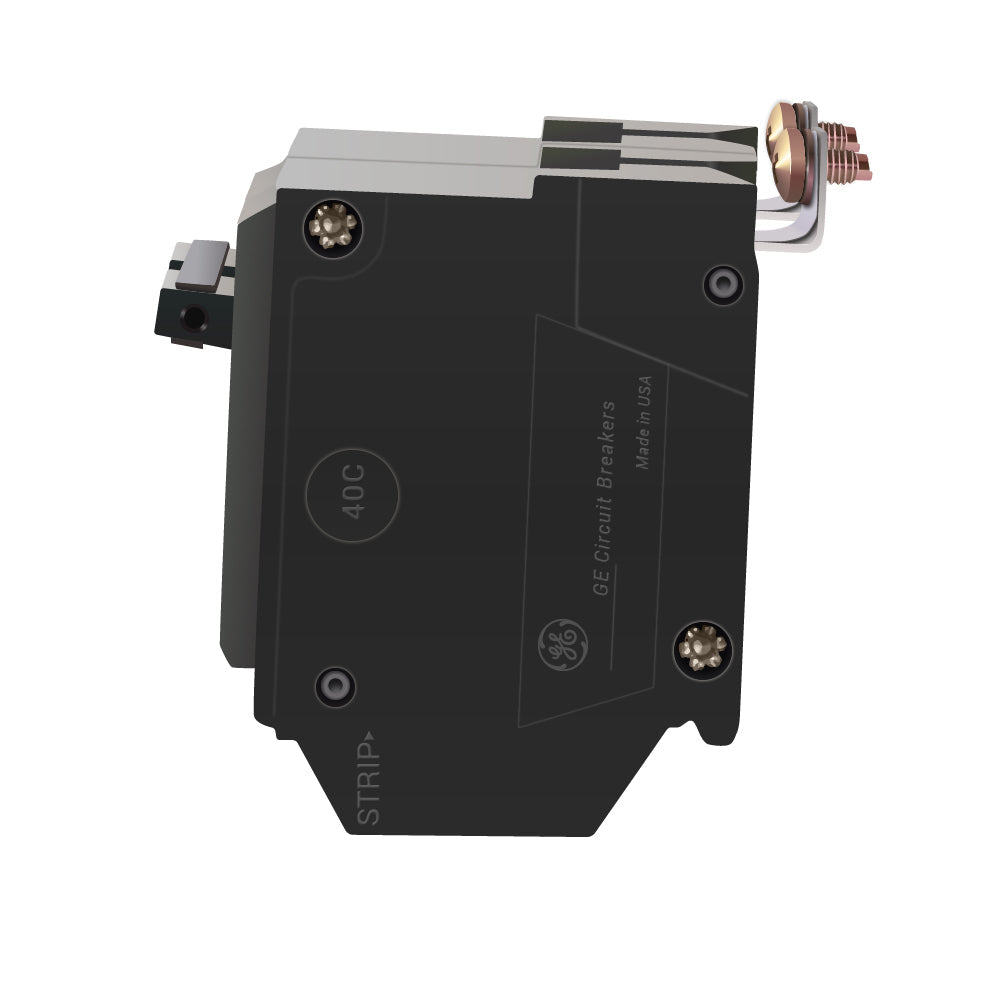

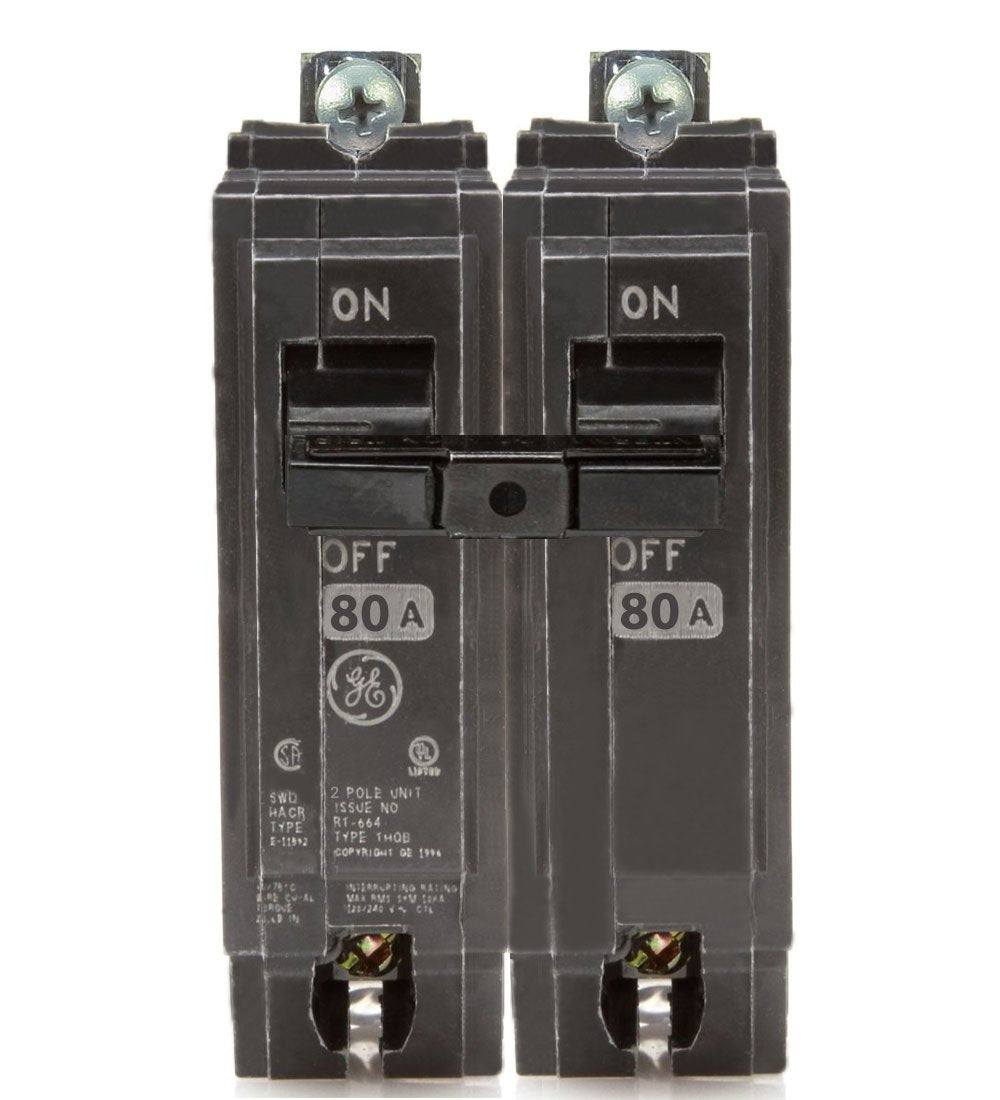

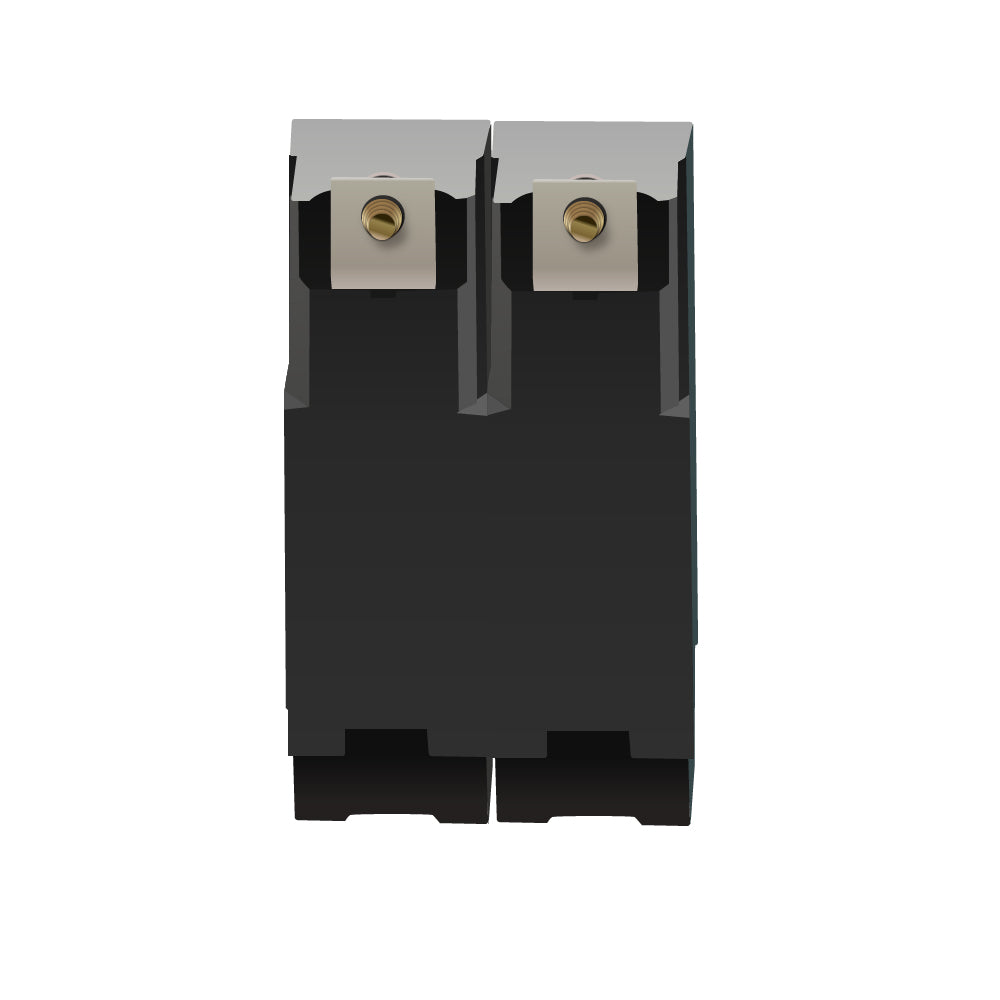

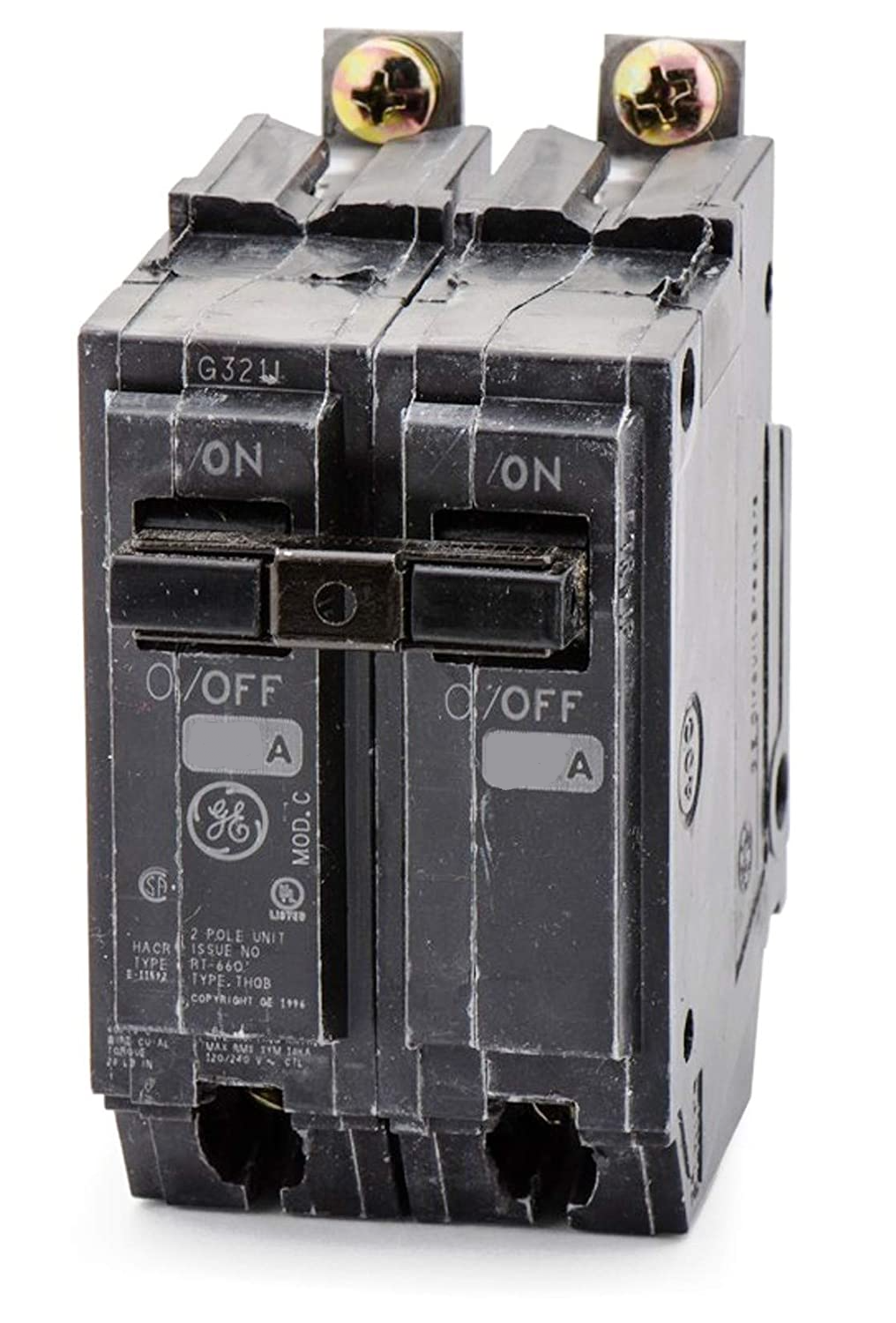

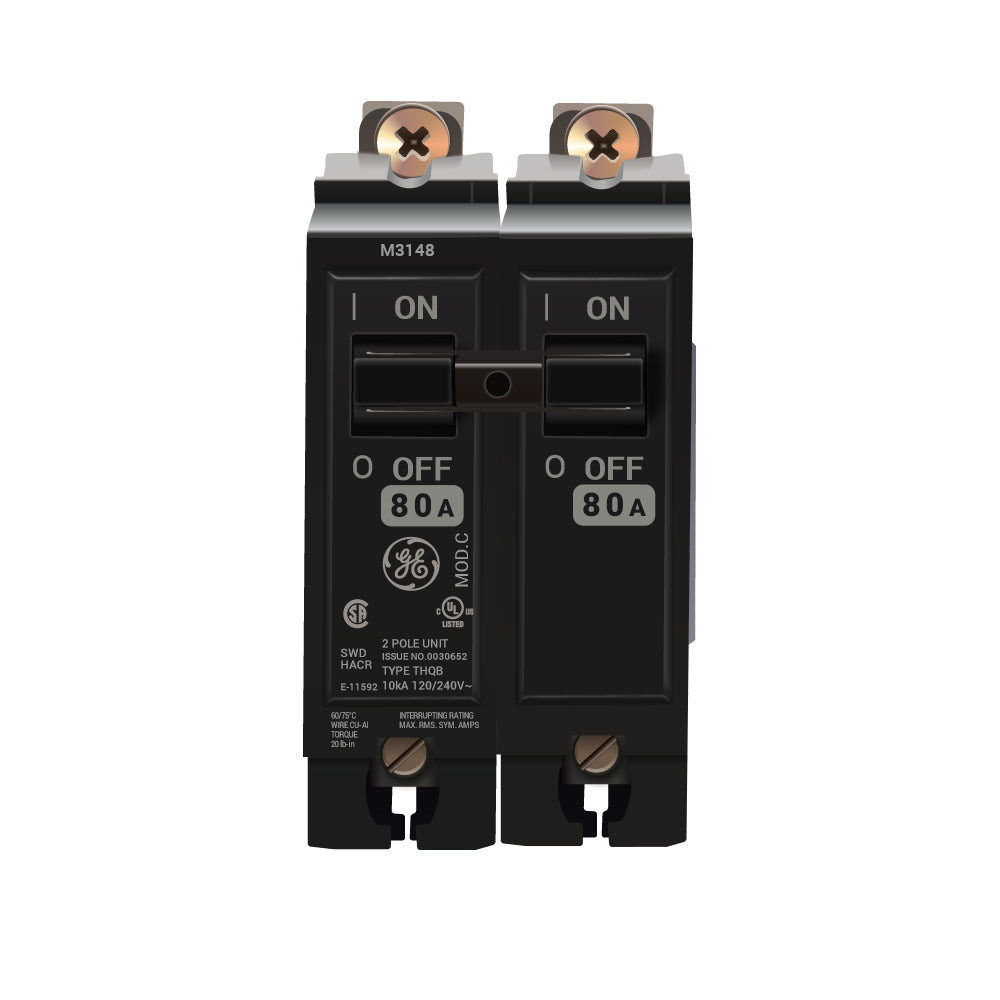

THQB2180 is a General Electric 2 pole, 80 amp bolt-on circuit breaker designed for 120/240 VAC applications.This THQB series circuit breaker features a thermal-magnetic trip unit with internal common trip, suitable for residential and commercial use. It has a 10 kA interrupt rating at 240 VAC, bolt-on mounting, and supports wire sizes from 6 AWG to 1/0 AWG copper and 4 AWG to 1/0 AWG aluminum. The breaker is UL listed and CSA certified, ensuring compliance with safety standards.
- Key Specifications
- Amperage: 80 Amps
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10,000 Amps (10 kA)
- Series/Frame: THQB
- Trip Unit: Thermal Magnetic with Internal Common Trip
- Wire Size: 6 AWG to 1/0 AWG Copper, 4 AWG to 1/0 AWG Aluminum
- Certifications: UL Listed, CSA Certified
- Dimensions: Approx. 3.28" Length, 2.00" Width, 2.38" Depth
Specifications
- Part Number: THQB2180
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 240
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164164244
- GTIN : 40783164164242
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 2.000 in
- Weight : 0.72
- Certification : Ul Listed
- Wire Size : 6 To 1/0 Awg (Copper) 4 To 1/0 Awg (Aluminum)
