Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQB2115GFEP

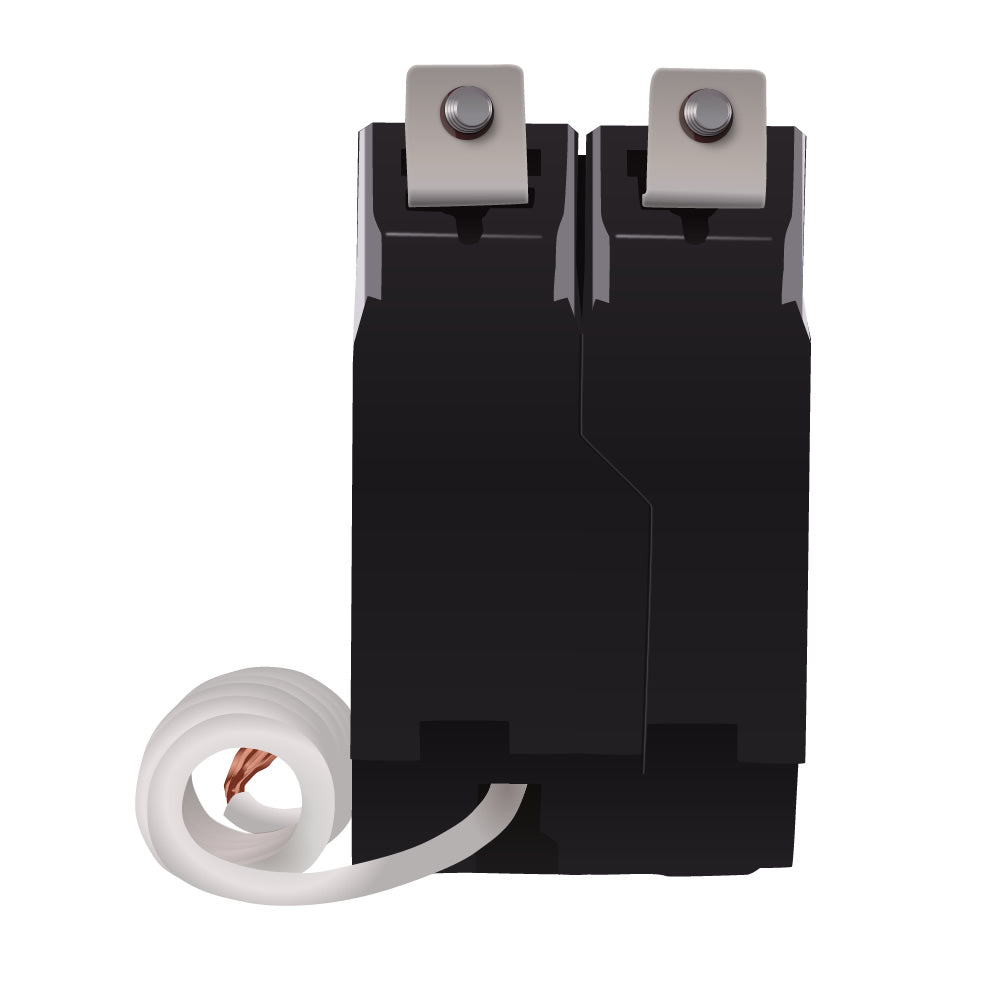

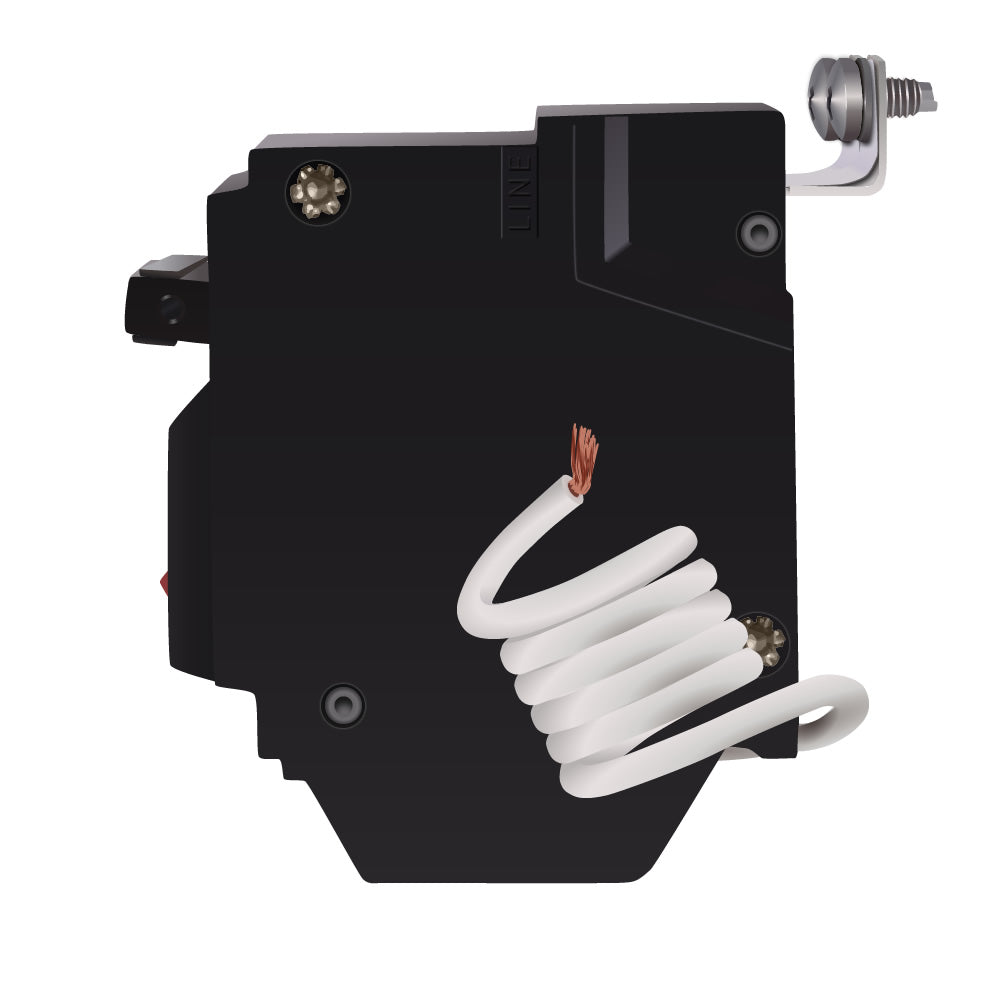

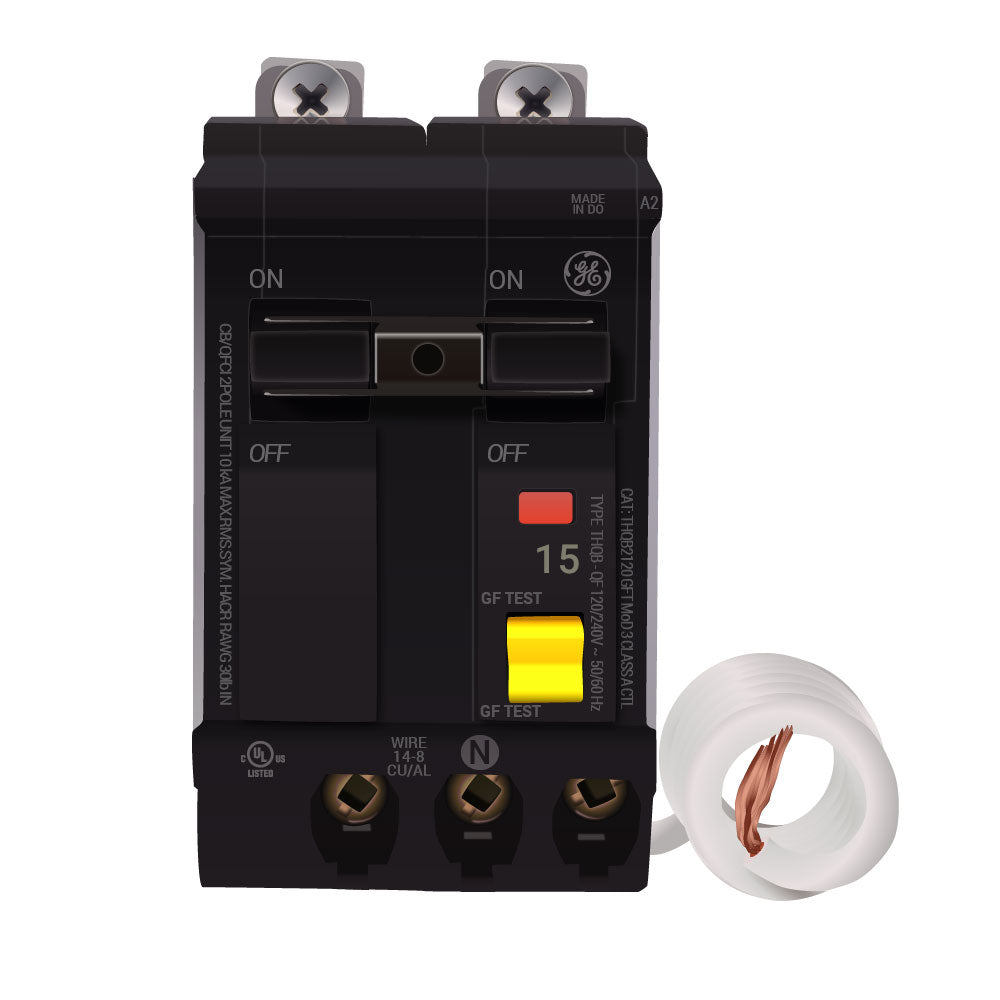

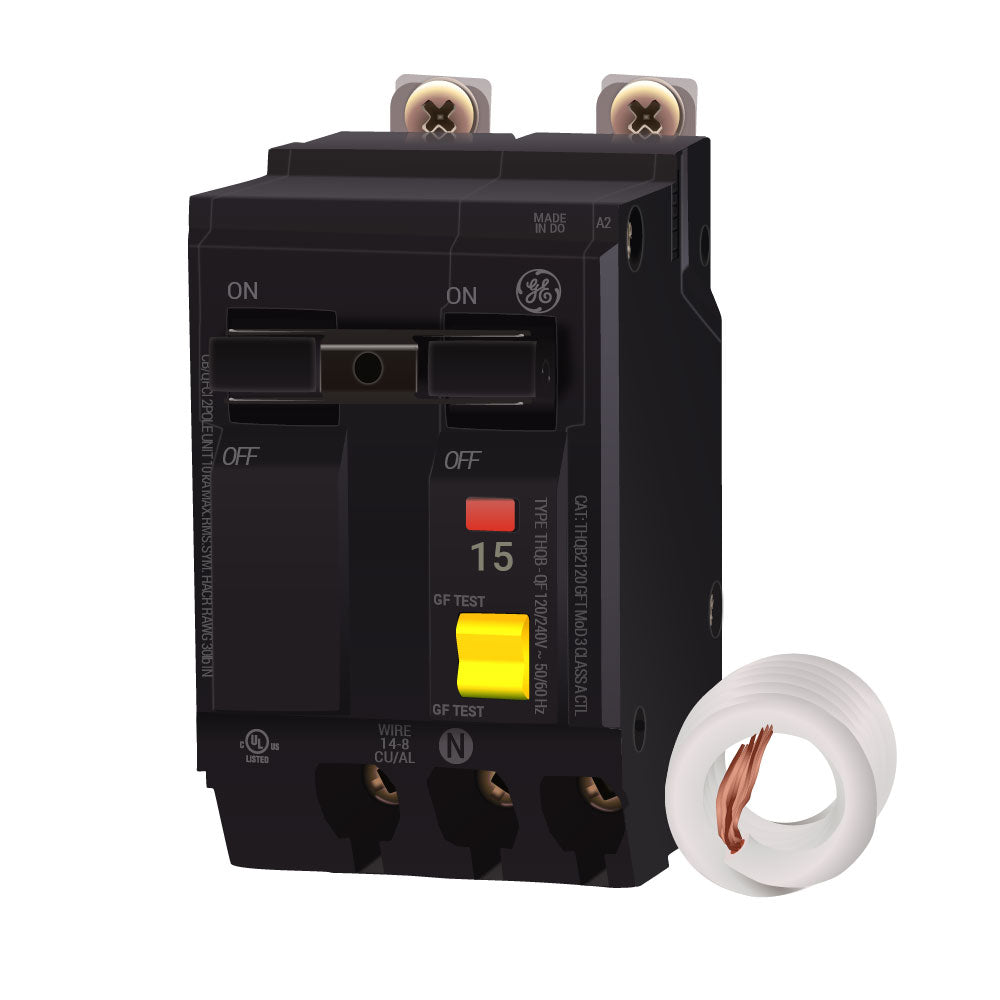

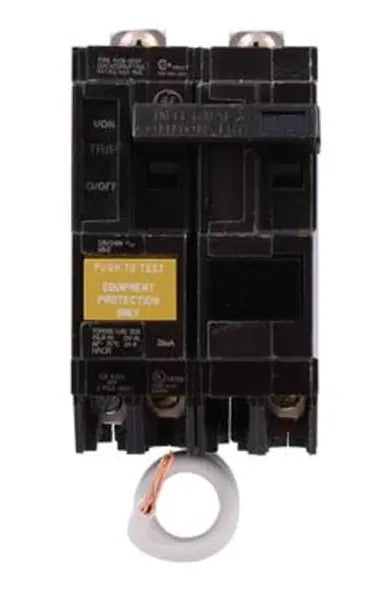

THQB2115GFEP is a General Electric 15 Amp 2 Pole circuit breaker designed for 240 Volt AC systems with ground fault protection.This THQL series breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions, a 10,000 A interrupting rating at 120V, and plug-in mounting for easy installation in residential and light commercial panels.
- Key Specifications
- Manufacturer: General Electric
- Part Number: THQB2115GFEP
- Amperage: 15 Amps
- Voltage Rating: 240 VAC
- Number of Poles: 2
- Frame Type: THQL
- Interrupting Rating: 10,000 AIC at 120V
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Mounting Type: Plug-In
- Phase: Single Phase
- Terminal Connection: Load Side Lug
- Certifications: UL Listed, CSA Approved
Specifications
- Part Number: THQB2115GFEP
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 240
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164060218
- GTIN : 00783164060218
- Dimensions : Height 2.92 in x Depth / Length 3.28 in x Width 2 in
- Weight : 3
