Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THQB1130ST1

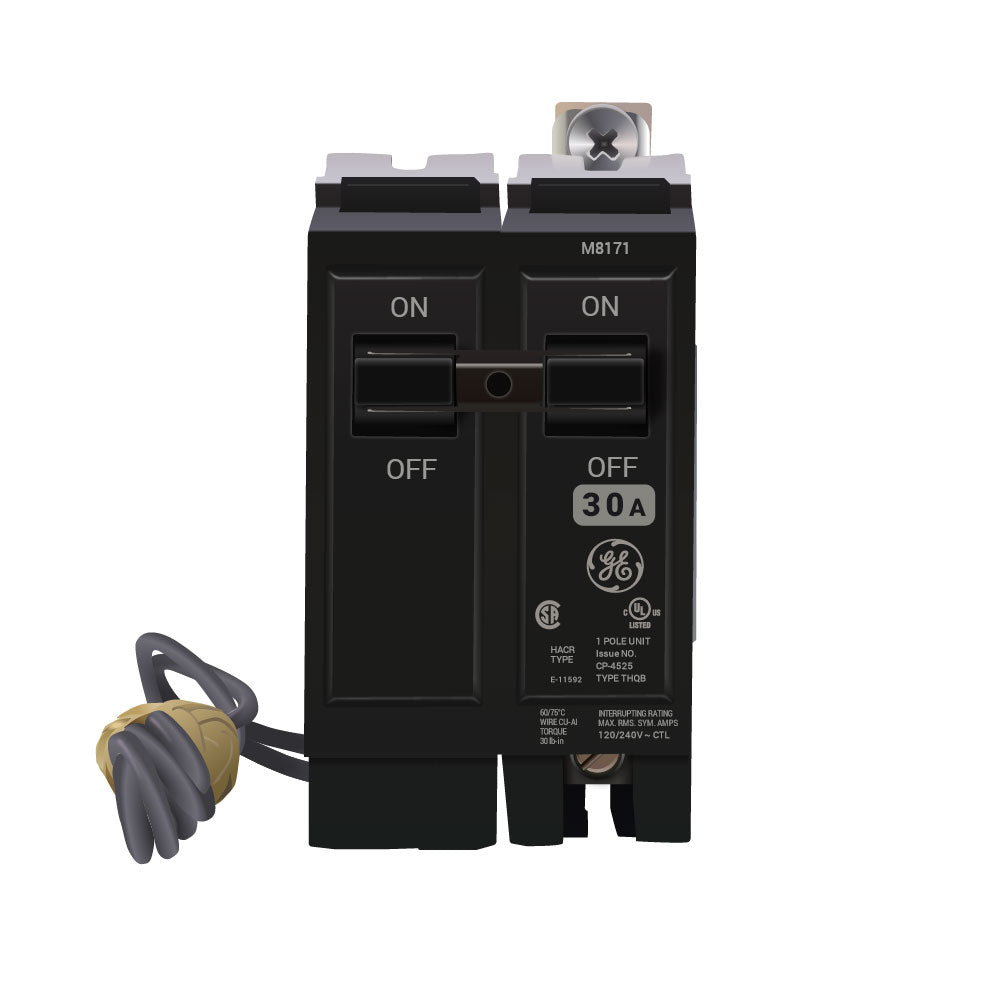

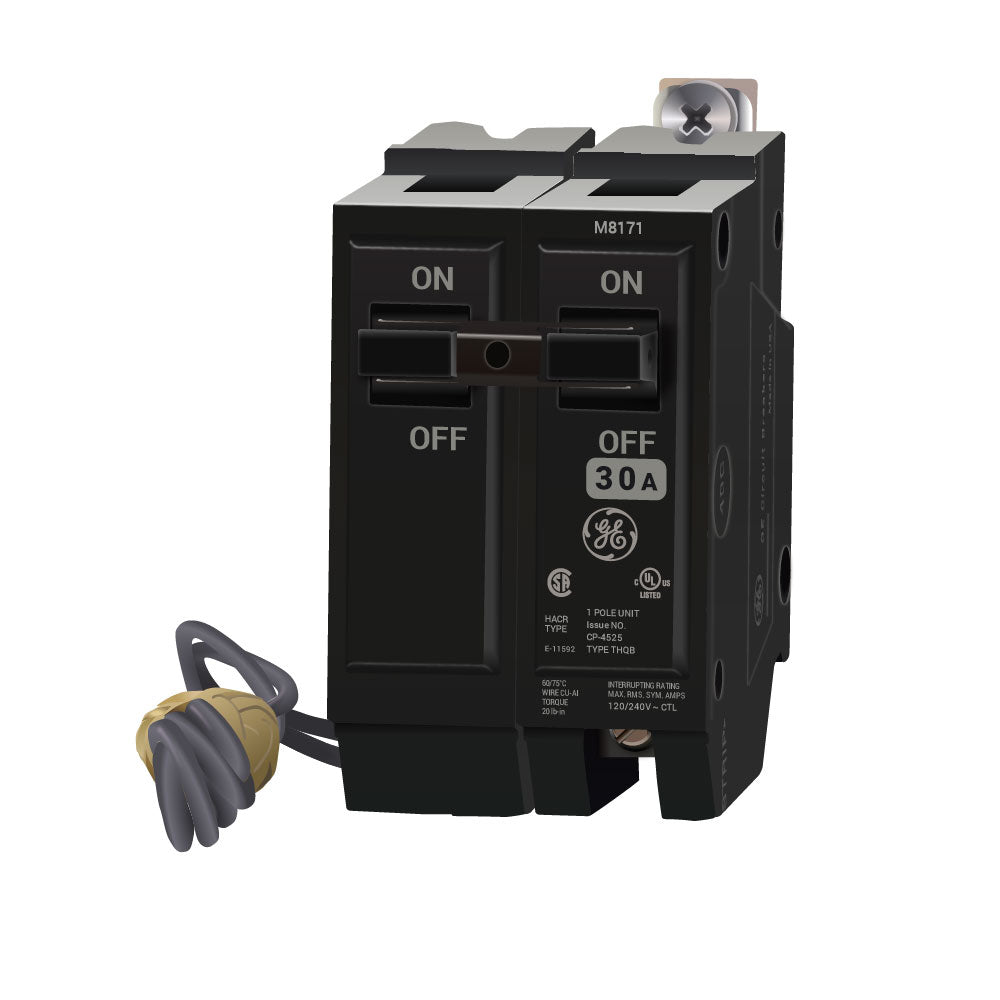

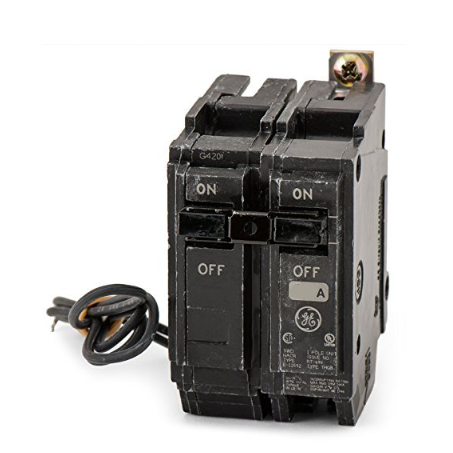

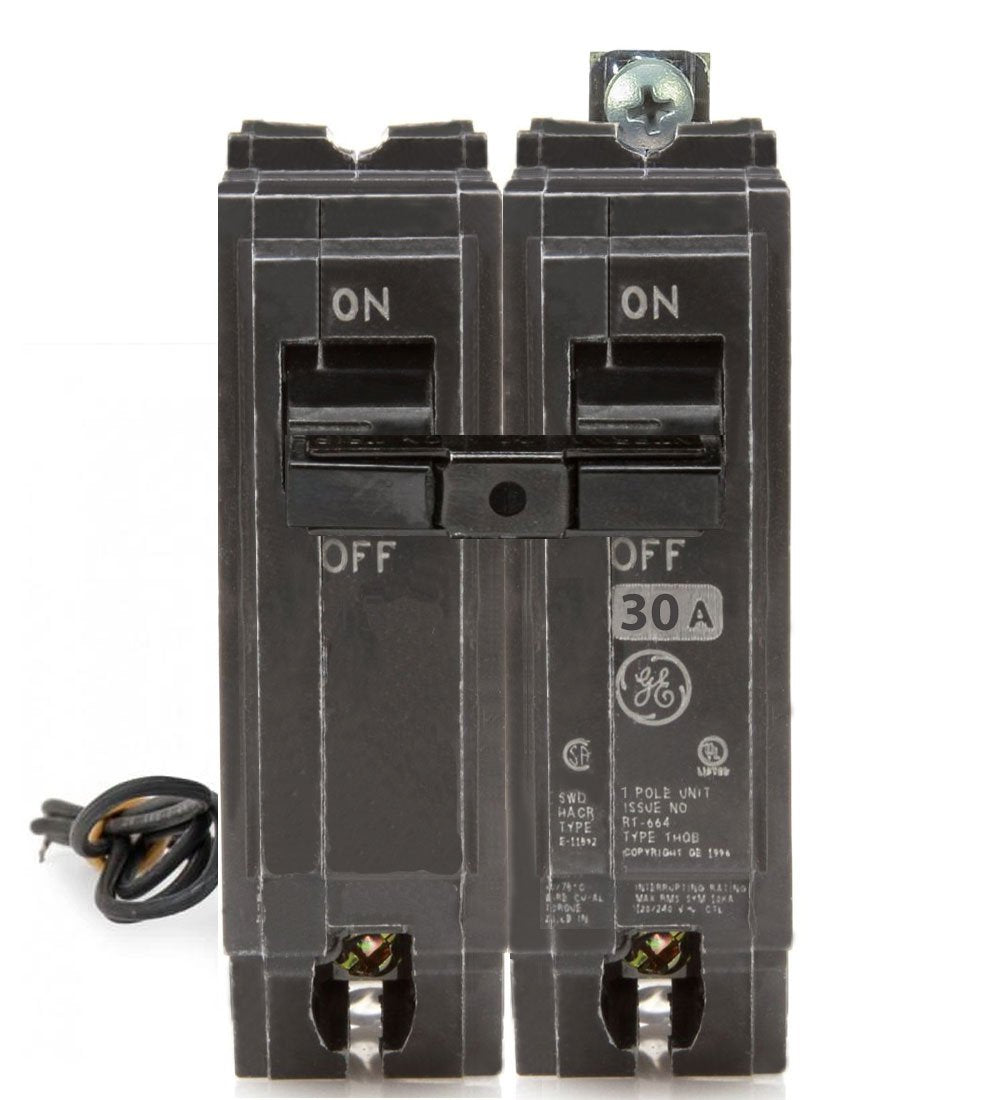

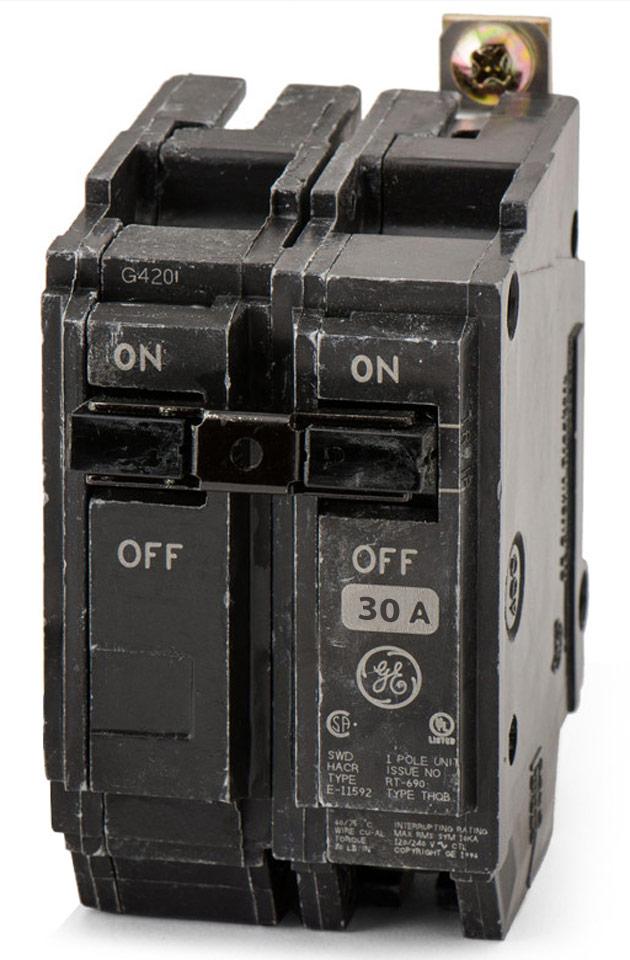

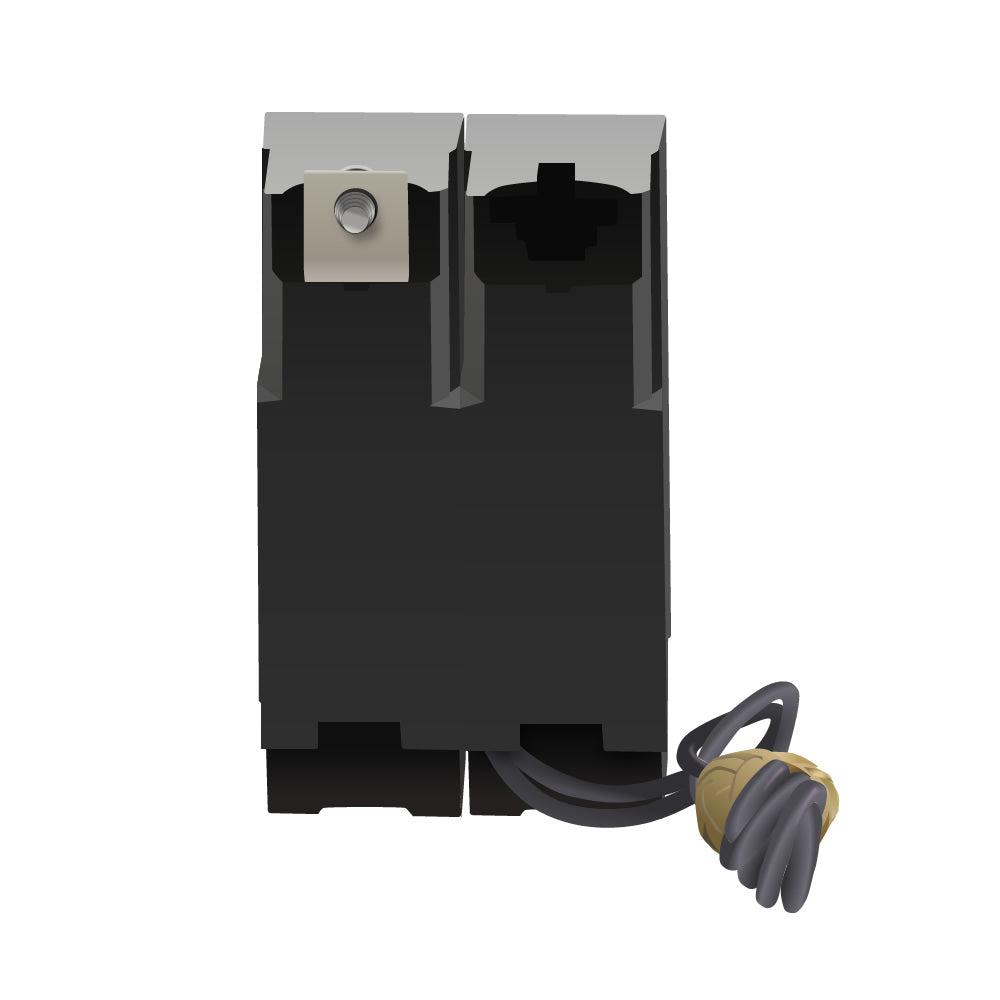

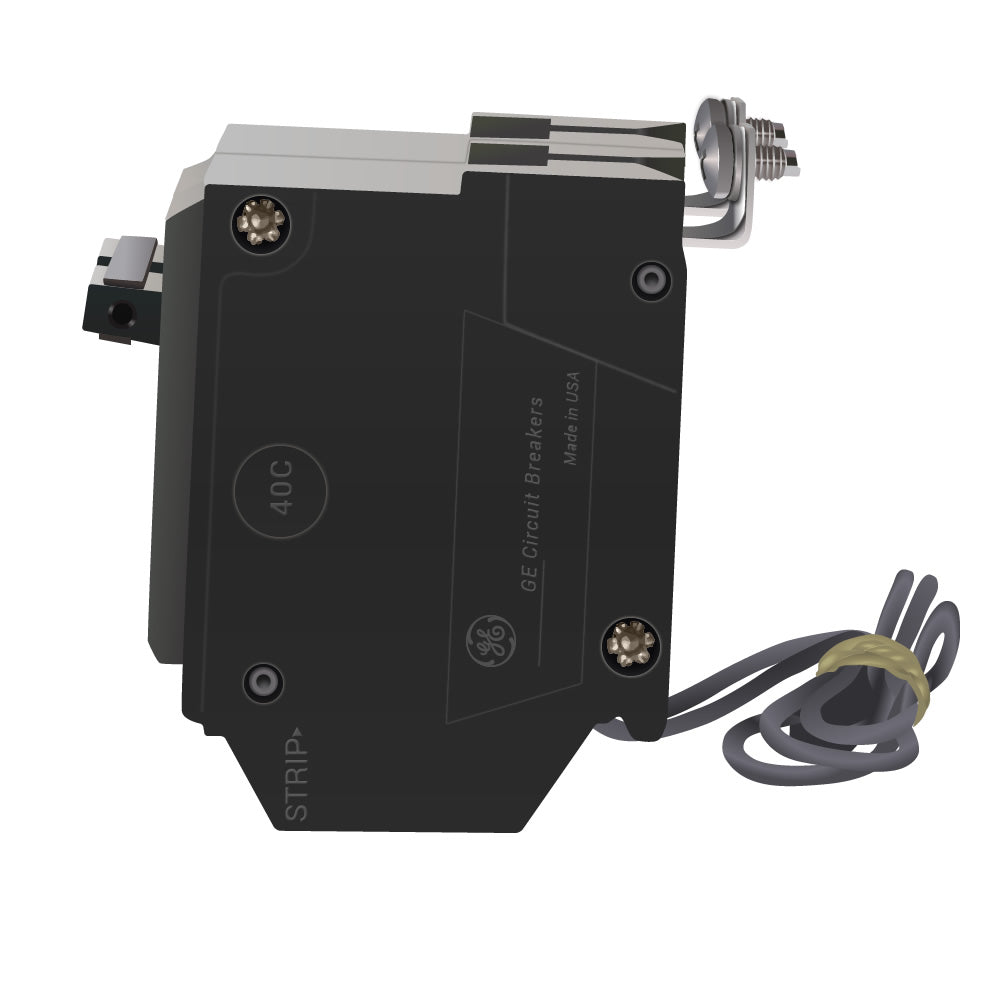

THQB1130ST1 is a General Electric 1-pole bolt-on circuit breaker with a 30 amp rating and 120/240 volt capacity featuring a shunt trip function.This THQB series thermal magnetic molded case circuit breaker is designed for reliable overcurrent protection with a shunt trip mechanism that allows remote tripping. It is a bolt-on type breaker suitable for Q-Line panels, providing enhanced safety and control in electrical distribution systems.
- Key Specifications
- Manufacturer: General Electric
- Part Number: THQB1130ST1
- Amperage: 30 Amps
- Voltage: 120/240 VAC
- Poles: 1 Pole
- Mounting Type: Bolt-On
- Series/Frame: THQB (Q-Line)
- Trip Unit: Thermal Magnetic with Shunt Trip
- Interrupt Rating: 10,000 AIC
- Part Number: THQB1130ST1
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 120
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 783175184583
- Weight : 0.4 lb
- Certification : UL Listed
