2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:General Electric
- Sub-Category:Disconnect
Description
THPR3612ET1

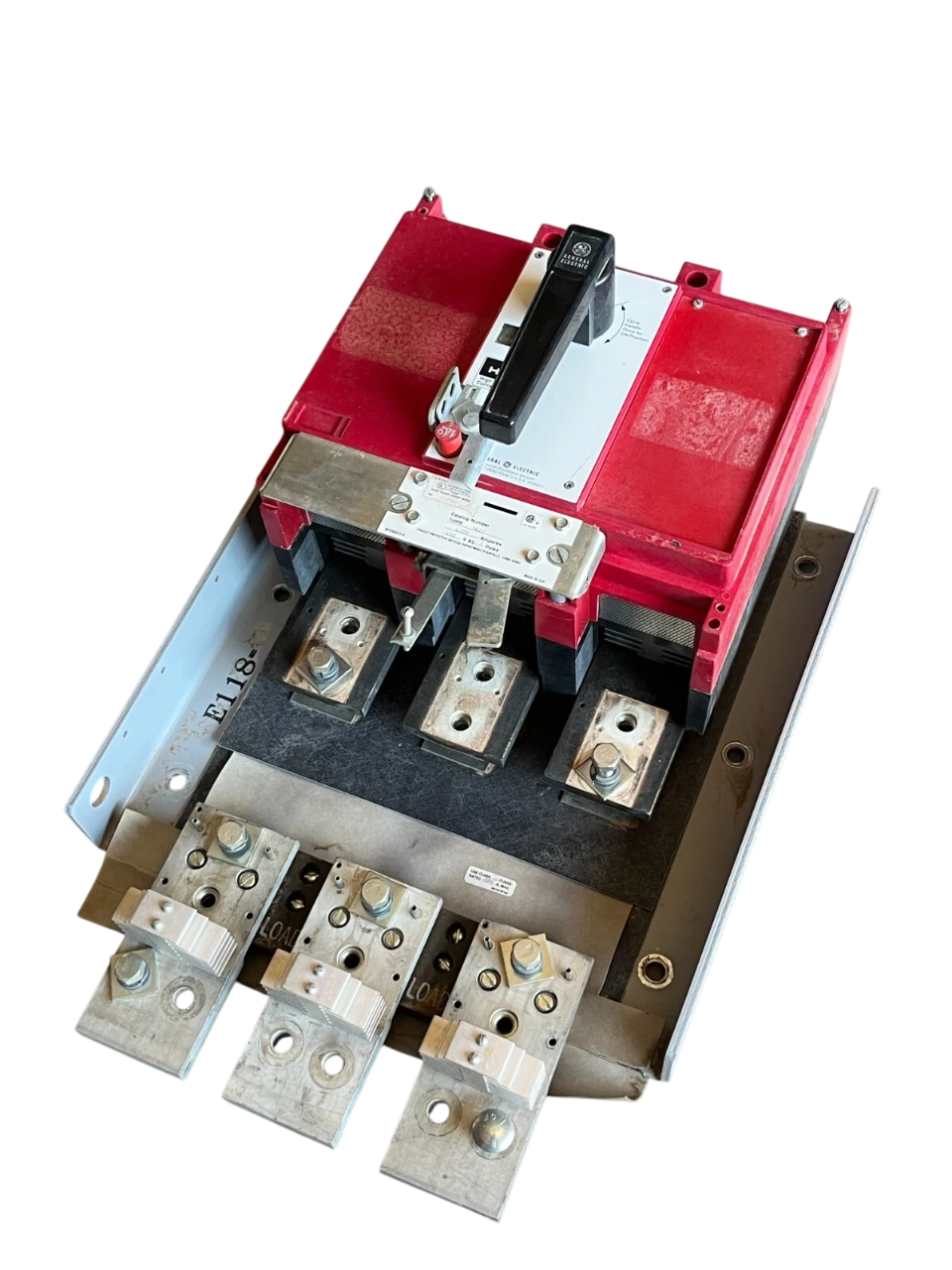

THPR3612ET1 is a General Electric 3 pole, 1200 amp, 600 volt THPR type high pressure contact disconnect switch with electronic trip unit.This switch features a THPR frame rated for 1200 amps and 600 volts, designed for top feed mounting. It includes an ET1 electronic trip unit compatible with 120V or 240V control voltages. The switch is suitable for high pressure contact applications and meets industry standards for safety and reliability.
- Amperage: 1200A
- Voltage: 600V
- Poles: 3
- Frame Type: THPR High Pressure Contact
- Trip Unit: ET1 Electronic Trip (120V/240V control)
- Mounting Type: Top Feed
- Interrupt Rating: High Pressure Contact Switch
- Certifications: UL 1066, UL 489, ANSI C37 compliant (typical for reconditioned units)
- Weight: Approximately 120 lbs
- Category: Disconnect Switch
Specifications
- Part Number: THPR3612ET1
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Disconnect
- Family : Type HPC
- Type : THPR
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Compatible Frames : LIP
Product Data
- Weight : 80
