Product Info
- Manufacturer:General Electric
- Sub-Category:Disconnect
Description
THN2261DC

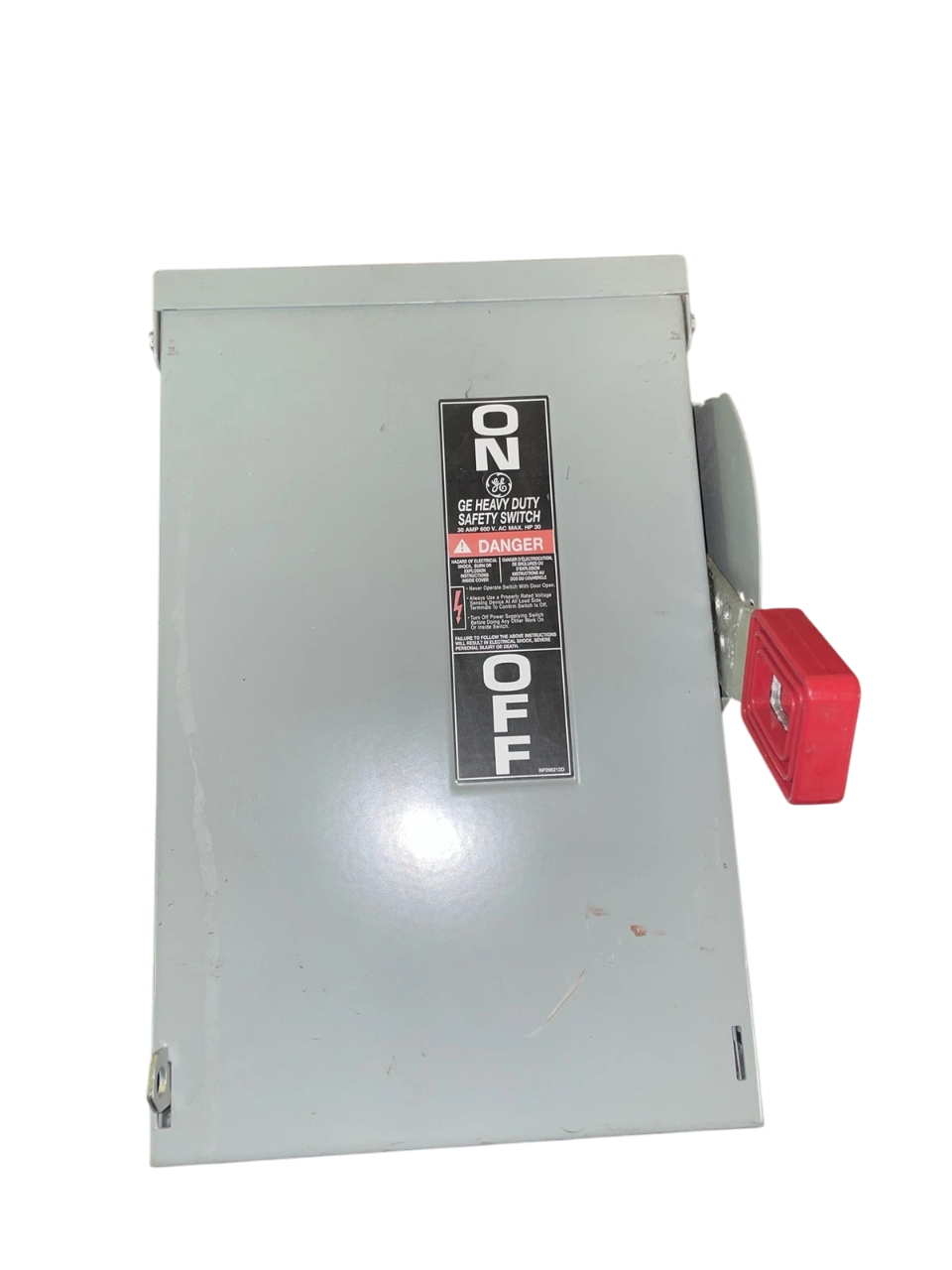

THN2261DC is a General Electric Spec-Setter heavy duty non-fused safety switch designed for 600VDC applications with a 30A current rating. This 2 pole, 2 wire switch features a NEMA 1 enclosure and is suitable for single-phase systems. This switch is built for reliable performance in industrial and commercial environments, offering a 200kA short circuit current rating and heavy duty construction. It is ideal for use as a disconnect or safety switch where non-fused operation is required.
- Part Number: THN2261DC
- Manufacturer: General Electric
- Series: Spec-Setter
- Amperage: 30A
- Voltage: 600VDC
- Poles: 2
- Mounting Type: NEMA 1
- Interrupt Rating: 200kA
- Frame: Heavy Duty
- Non-Fused
- Application: Safety Switch
- Certifications: UL Listed
Specifications
- Part Number: THN2261DC
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Disconnect
- Family : Spec-Setter
- Type : THN
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 783164082227
- GTIN : 40783164082225
- Weight : 8 lb
