Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THHQL32040

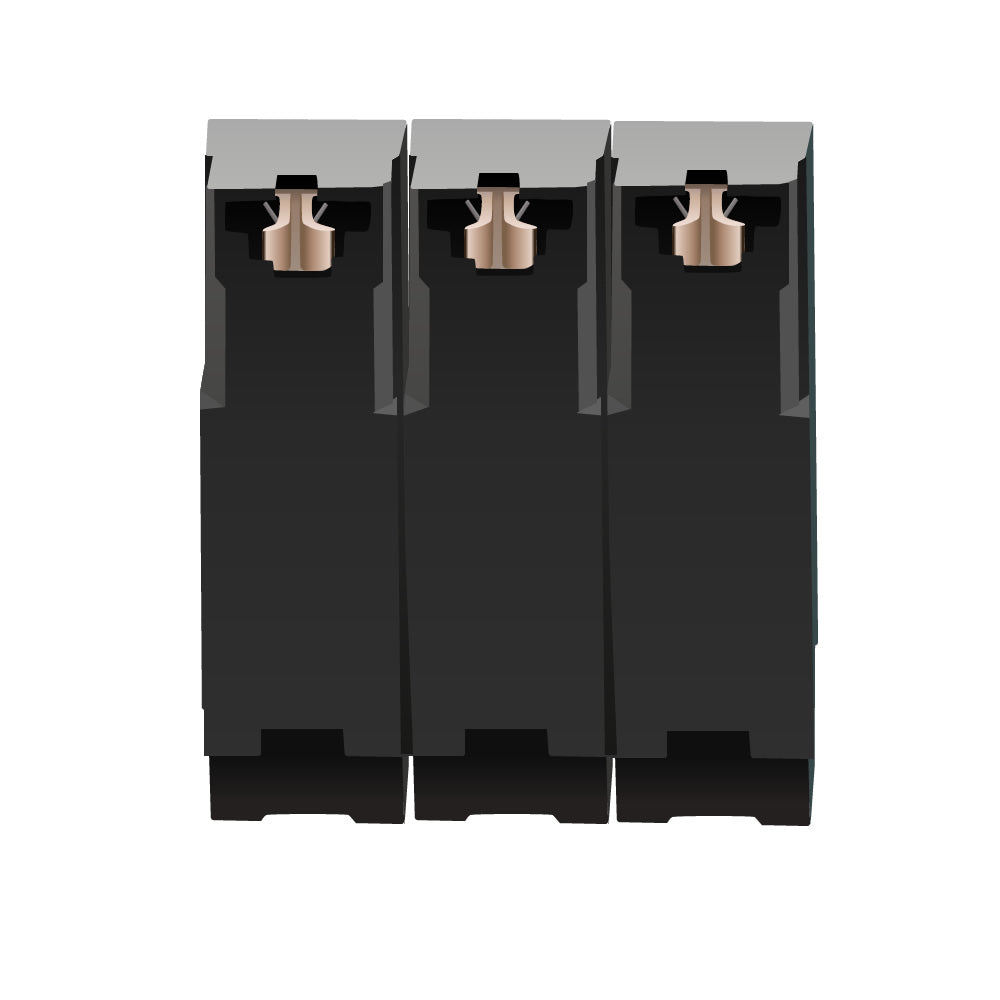

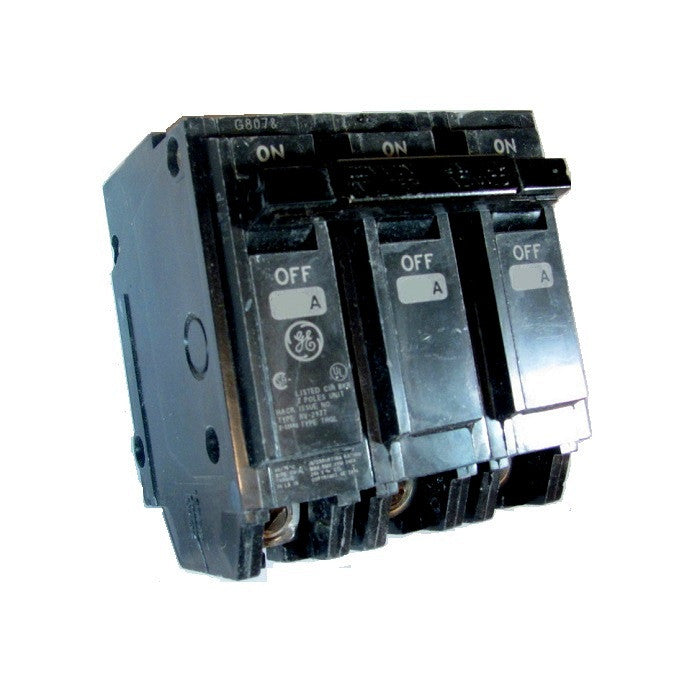

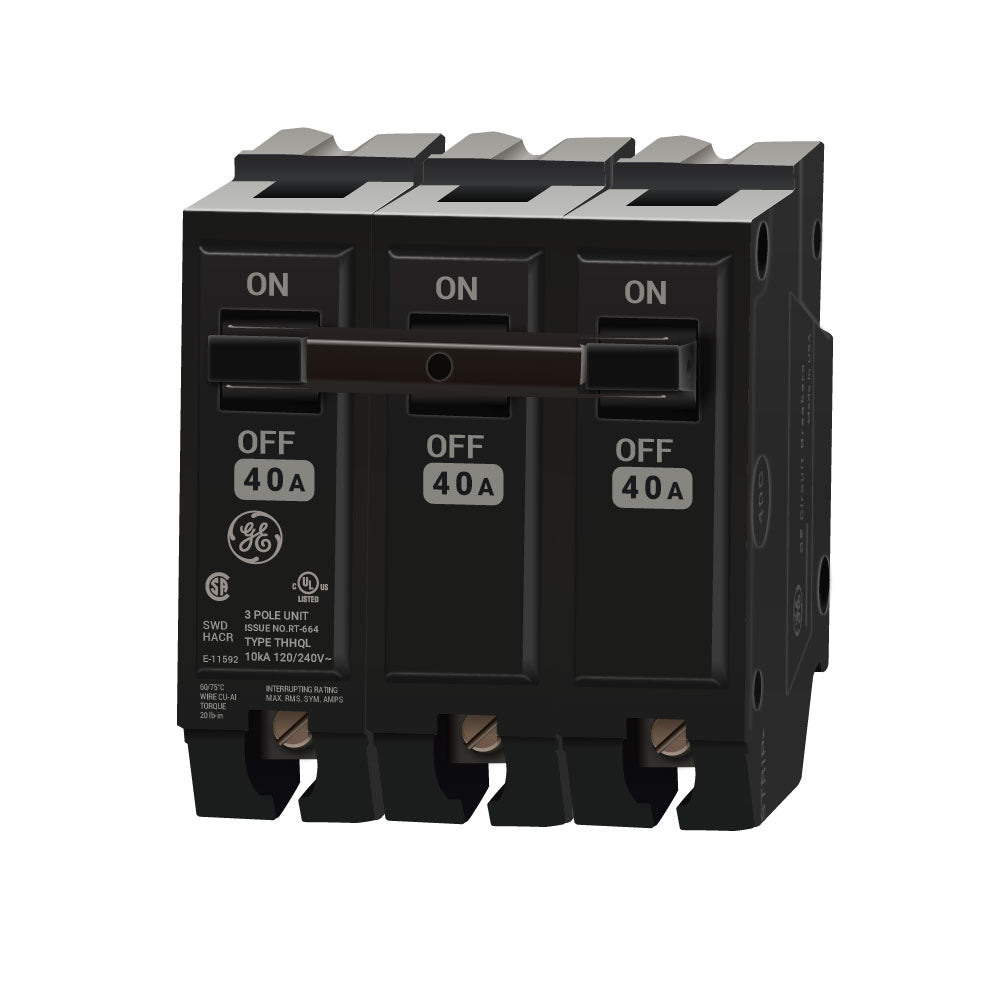

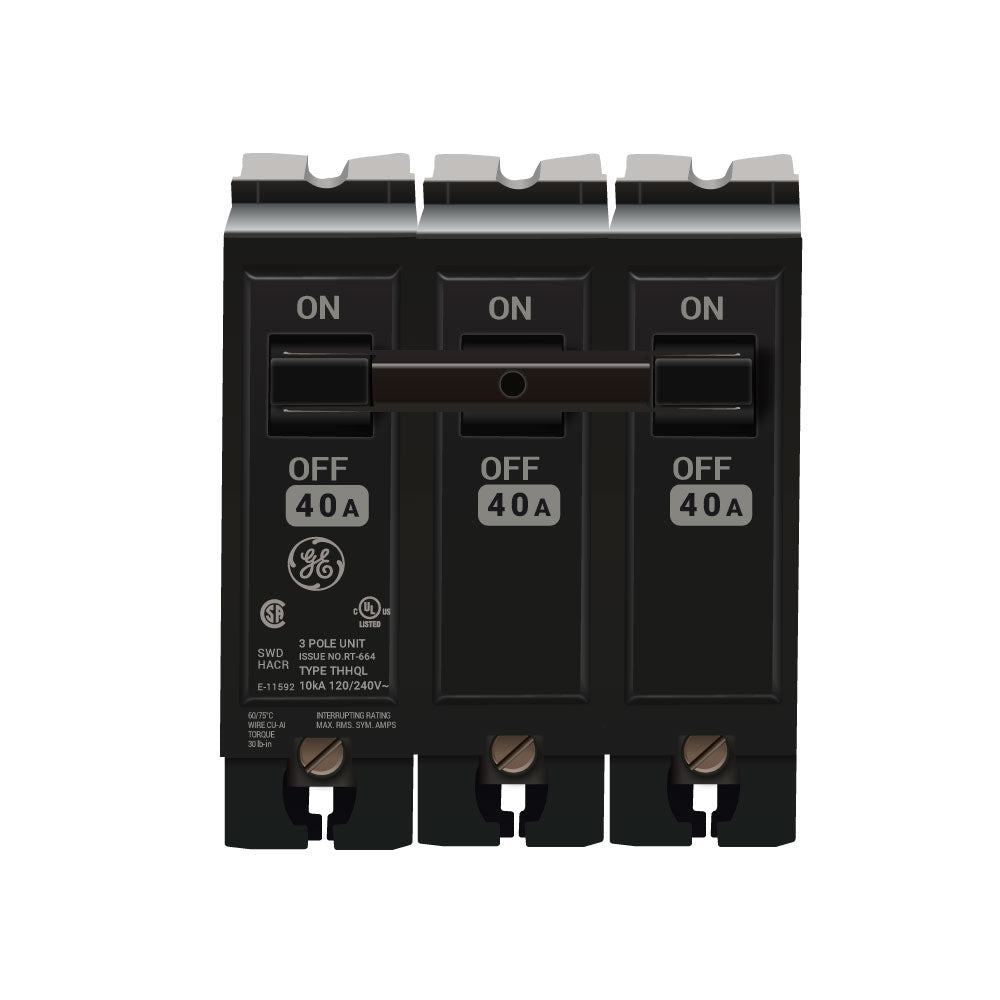

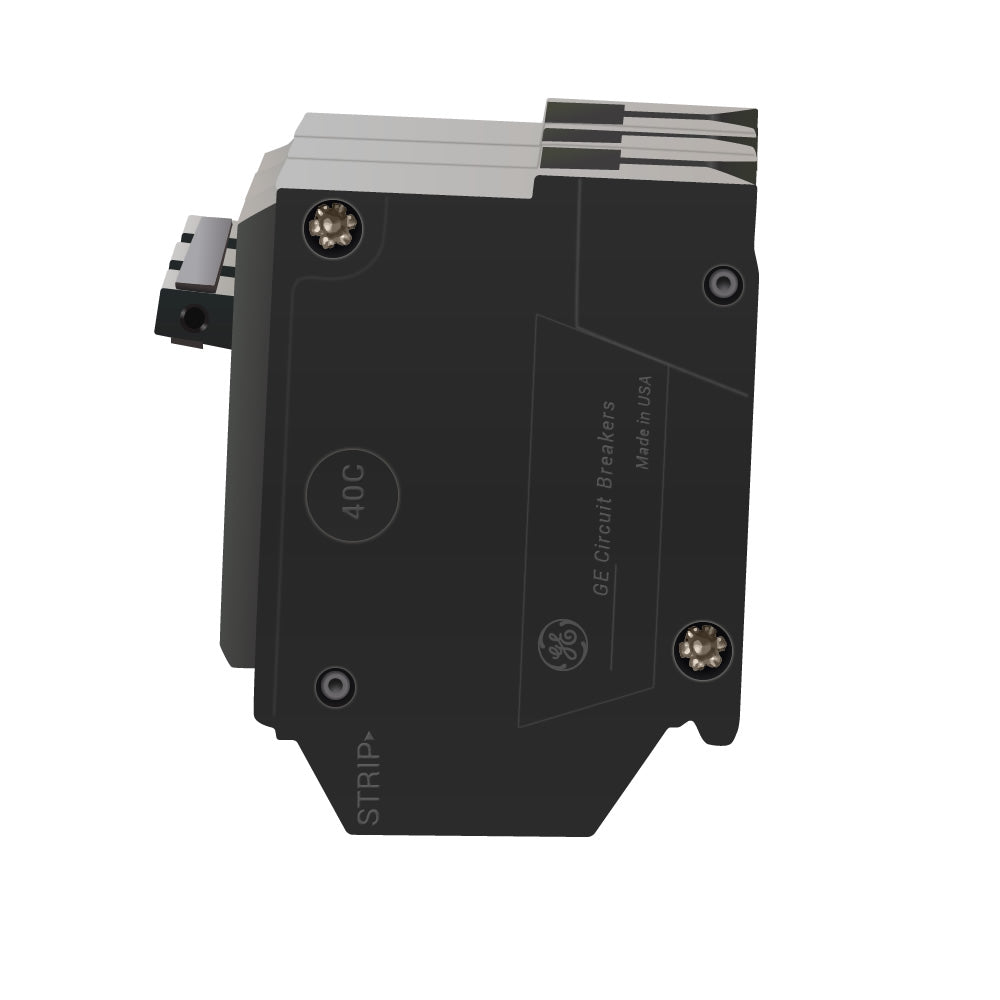

THHQL32040 is a General Electric 3 pole thermal magnetic molded case circuit breaker rated for 40 amps and 240 volts AC.
This THHQL series breaker features a plug-in connection type with load side lug terminals, a 22kA interrupting rating at 240V, and includes long-time and instantaneous trip functions for reliable circuit protection. It is UL listed and designed for residential and commercial applications with a compact Q-Line frame.
- Key Specifications
- Amperage: 40 Amps
- Voltage Rating: 240 VAC
- Poles: 3
- Interrupting Rating: 22kA at 240V
- Frame Type: THHQL (Q-Line)
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Connection Type: Plug-In with Load Side Lug
- Certifications: UL Listed
- Mounting Type: Plug-In
- Phase: 3
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: THHQL32040
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THHQL
- Voltage : 240
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164117714
- GTIN : 00783164117714
- Weight : 1 lb
- Certification : UL
